RPU500-Tx User Manual

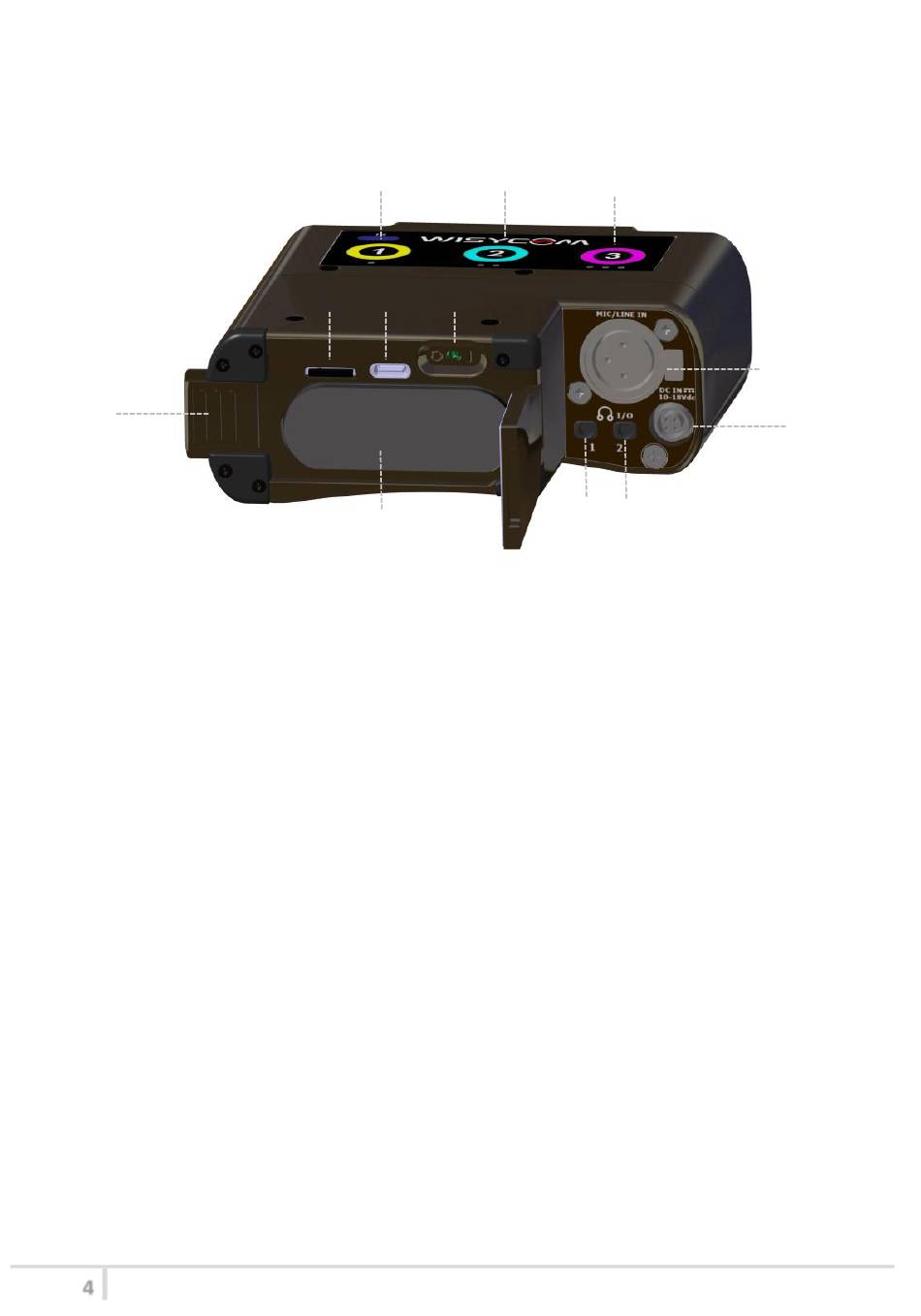

REAR
❶
❶ battery compartment latch
❷ battery compartment
❸ SD card slot
❹ USB-C connector
(for power and control)
❺ ON/OFF switch
❻ Lazy 1 button*
*
When "Lazy button" is pushed, RPU500 also sends a sub-tone in addition to the audio.
Standard Wisycom tones are the following:
- Lazy 1: 32687 Hz
- Lazy 2: 32869 Hz
- Lazy 3: 33013 Hz
Other sub-tones can be configured in Wisycom factory.
Wisycom receiver MRK980 detect the sub-tones and informs the mixer via the Ctrl1 Ethernet port with Ember +
protocol. From the mixer it is therefore possible to configure the audio routing according to your needs.
4
❻
❸ ❹ ❺
❷
❼
❽
❾
❿
⓫
⓬
❼
❽
⓬ ⓫
Lazy 2 button*
Lazy 3 button*
XLR-3pin connector
for MIC/LINE audio input
Hirose 4-pin power supply
connector
10-18V (pin1:GND, pin4:+Vdc)
waterproof jack 3.5mm
(audio output or Aux input)
waterproof jack 3.5mm
(audio output)
❾
❿
