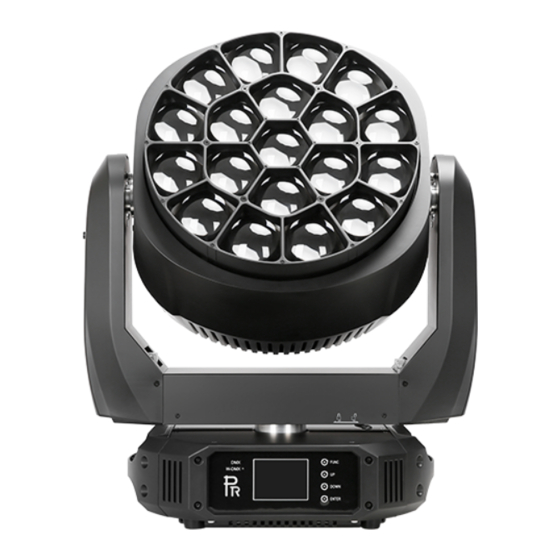

GALAXY
PR-8129
This product manual contains important information about the safe installation and use of this product. Please
read and follow these instructions carefully before installing and using the product and keep this manual in a
safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GALAXY PR-8129 and is the answer not in the manual?

Questions and answers

Related Manuals for PR Lighting GALAXY PR-8129

Summary of Contents for PR Lighting GALAXY PR-8129

  • Page 1 This product manual contains important information about the safe installation and use of this product. Please read and follow these instructions carefully before installing and using the product and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...
  • Page 2 Any damage caused by improper use will not be assumed by the manufacturer and / or dealer. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty.

  • Page 3: Safety And Warnings

    1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. User Electrical Protective High Warning Flames Goggles Manual shock Gloves Temperature When unpacking , check if there is transportation damage before using the projector.
  • Page 4 There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety ● cord supplied through the safety cord holes for safety support. Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from ●...
  • Page 5 3. APPEARANCE 4. INSTALLATION RIGGING ● While transportation of the fixture, please lock both Pan and Tilt well; Before the use of the fixture, please unlock both. It’s forbidden to run the fixture while it’s locked. Take 2clamp and 1 the safety cord out from the package and mount 1 clamp on the BOTTOM of fixture with 2 retainers attached to the clamp.
  • Page 6 WARNING: The projector MUST be lifted or carried by the HANDLES instead of clamps. ● .For safety the safety cord should afford 10 times the Projector’s weight. ● POWER CONNECTION ● Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Before power connection, please ensure the power supplied must match what the nameplate says.
  • Page 7 DMX TERMINATOR ● In the Controller mode, at the last projector in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain.

  • Page 8: Up And Down

    address 061 and so on. Launch the projector. Press button ENTER more than 2seconds to unlock panel. Press button ENTER to display DMX address; Press button UP and DOWN, you can set the address; Press button ENTER to confirm; after powered on next time, the default will be last value saved Press button FUNC, it will return to the upper menu DMX WIRELESS CONTROL (Optional) ●...

  • Page 9: Operation Menu

    6. OPERATION MENU 2nd LEVEL 3rd LEVEL 4th LEVEL 1st LEVEL 5th LEVEL 1-486（Short mode） 1-482（Standard mode） DMX Address 1-410（Extended ） Default IP Address 2.X.X.X /10.X.X.X Address IP Address Custom IP Address X.X.X.X SubNet Mask X.X.X.X ArtNet Universe 0-255 Total Reset Really Reset? Confirm/Cancle Reset...
  • Page 10 Fan Settings Standard/Theatre Defaults Restore Defaults? Confirm/Cancle View DMX Values Lamp Hours Reset Lamp Hours Total Hours Display Board XX℃/F PanTilt BoardXX℃/F Driver Board XX℃/F LED Board 1 XX℃/F LED Board 2 XX℃/F LED Board 3 XX℃/F Temperature LED Board 4 XX℃/F LED Board 5 XX℃/F LED Board 6 XX℃/F LED Board 7 XX℃/F...

  • Page 11: Dmx Protocol

    Preset Memory Change Operation Mode? Stand-Alone Mode User Memory 1 Change Operation Mode? User Memory 2 Change Operation Mode? Change Operation Mode? Static Scene Strobe XXX Dimmer XXX … Edit User Memory 1 Scene XX Delay Time XXX （1~200 Scenes） Edit User Memory 2 Delay Unit Edit User Memory...
  • Page 12 000-255 Linear change(0%-100%) Area 3 red 000-255 Linear change(0%-100%) Area 3green 000-255 Linear change(0%-100%) Area 3 blue 000-255 Linear change(0%-100%) Area 3 white 000-255 Linear change(0%-100%) Area 4 red 000-255 Linear change(0%-100%) Area 4green 000-255 Linear change(0%-100%) Area 4 blue 000-255 Linear change(0%-100%) Area 4 white...
  • Page 13 000-255 Linear change(0%-100%) Area 14 red 000-255 Linear change(0%-100%) Area 14green 000-255 Linear change(0%-100%) Area 14 blue 000-255 Linear change(0%-100%) Area 14 white 000-255 Linear change(0%-100%) Area 15 red 000-255 Linear change(0%-100%) Area 15green 000-255 Linear change(0%-100%) Area 15 blue 000-255 Linear change(0%-100%) Area 15 white...
  • Page 14 If the effect works, the dimmer for areas 1-6 doesn’t work. But the total dimmer still works. Macro Dimming Fore Color 000-255 (For customized macros) Dimmer Macro Dimming Back Color 000-255 （For Customized macros ） Dimmer Macro 000-255 From slow to fast Speeds Macro 000-255...
  • Page 15 SIGNS ON THE TOUCH SCREEN Config Settings Option Settings Chinese/English Information Error messages Service Address Operation Mode User Memories Reset 9. ERROR MESSAGES The system can detect some errors during the reset, if displayed, touch to view the error. The error messages are as follows: Name Type Correction...
  • Page 16 COLORS Linear RGBW ,color mixing with unlimited colors, macros DIMMER 0-100% linearly adjustable STROBE: Electronic strobe:0-25 F.P.S.( Pulse Strobe Macro) OTHER EFFECTS: Rainbow, Wash, Beam, Profile, Effect Modes(Kaleidoscope, Swirl), multiple macros ROTATION Pan 0-540 degrees, Tilt 0-210 degrees with auto-positioning , Bi-directional and continual rotation for the front lens panel BEAM ANGLE Beam angle(1/2 peak) θ...

  • Page 17: Light Output

    SIZES: LIGHT OUTPUT : 3.3 ° lux 472413 118103 52490 29526 18897 13123 60 ° lux 6666 1667 DISTANCE (m) 60°DIAMETER (m) 1.99 3.99 5.98 7.97 9.96 11.96 3.3°DIAMETER (m) 0.12 0.24 0.36 0.48 0.60 0.72...

  • Page 18: Dial Switch

    LED LAMP DISTRIBUTION 1.灯珠区域分布从区域1～19. 2.此图为灯具复位初始状态. 1. LED lamp distribution from area 1 to area 19 2. The projector above is at initial status after reset. DIAL SWITCH LED LAMP area：1～6 ⑤ ⑥ ④ Dial bit：1～6 ③ ① ② Initial status of dial switch The operations of the dial switch are described hereinafter: ①...

  • Page 19: Circuit Diagram And Pcb Connections

    11. CIRCUIT DIAGRAM AND PCB CONNECTIONS CIRCUITDIAGRAM ●...
  • Page 20 PCB CONNECTIONS ● Name Master board ● DMX512 signal input Reserved Reserved Reserved Power input Reserved 485 signal input Wireless signal Pan/Tilt board ● Name Tilt optical sensor Tilt magnet sensor Reserved Reserved Power input 485 signal output 485 signal input Reserved Pan optical sensor Pan magnet sensor...

  • Page 21: Component Order Codes

    序号 名称 Program input DMX input DMX output Power + Power - Power + Power - 12. COMPONENT ORDER CODES NAME PART NO. REMARKS 030040248 14HY5201-14W-100 STEPPING MOTOR 030040256 17HDC1217Y-110NE STEPPING MOTOR 030040264 24HED4002-28M STEPPING MOTOR 030060074C AD09224HB257900 PWM SPEED ADJUSTABLE FAN PF75302B3-L04C-Q99 030060064B TURBO FAN 180817...
  • Page 22 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020951 Version: 20191216...
