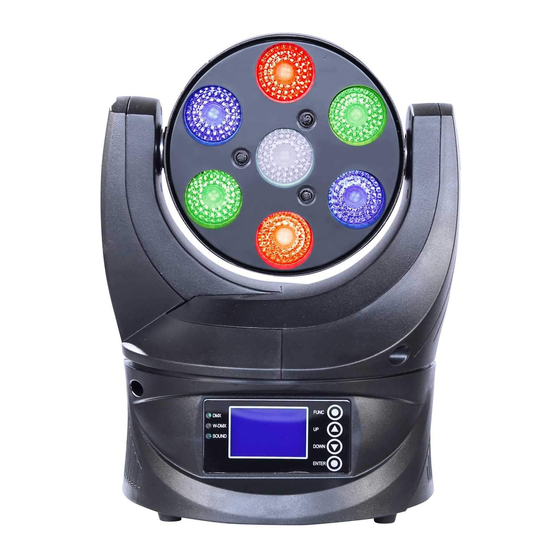

XLED 3007
PR-8125
This product manual contains important information about the safe installation and use of this product. Please
read and follow these instructions carefully before installing and using the product and keep this manual in a
safe place for future reference.
PR LIGHTING LTD.
http://www.pr-light ing.com
Advertisement
Table of Contents
Related Manuals for PR Lighting XLED 3007
Summary of Contents for PR Lighting XLED 3007
- Page 1 XLED 3007 PR-8125 This product manual contains important information about the safe installation and use of this product. Please read and follow these instructions carefully before installing and using the product and keep this manual in a safe place for future reference.
-
Page 2: Table Of Contents
INDEX SAFETY INFORMATION AND WARNINGS ------------------------------------------------------------------------------------ PRODUCT INSTALLATION ----------------------------------------------------------------------------------------------------------- POWER SUPPLY CONNECTION -------------------------------------------------------------------------------------------------- DMX CONTROL CONNECTION ---------------------------------------------------------------------------------------------------- DMX TERMINATOR --------------------------------------------------------------------------------------------------------------------- PRODUCT FUNCTION SETUP ---------------------------------------------------------------------------------------------------- DMX START ADDRESS SETUP ---------------------------------------------------------------------------------------------------- STAND-ALONE MODE ----------------------------------------------------------------------------------------------------------------- MASTER/SLAVE MODE --------------------------------------------------------------------------------------------------------------- SOUND OPERATION---------------------------------------------------------------------------------------------------------------------- OPERATION MENU --------------------------------------------------------------------------------------------------------------------- DMX PROTOCOL ----------------------------------------------------------------------------------------------------------------------- DISPLAY INFORMATION --------------------------------------------------------------------------------------------------------------... -
Page 3: Safety Information And Warnings
SAFETY INFORMATION AND WARNINGS After receiving product, please unpack and check if there are any damages caused by transportation. Do not use the fixture if transportation damages occur and contact the manufacturer or the dealer as soon as possible. The product is only for indoor use, IP20. Use only in dry locations. Keep this device away from rain and moisture, excessive heat, humidity and dust. -
Page 4: Product Installation
PRODUCT INSTALLATION SAFETY CORD CLAMP WARNING： Please run the safety cord through safety hole and make sure that the cord is property secured. Take 1 clamp and 1 the safety cord out from the package and mount 1 clamp on the BOTTOM of fixture with 2 retainers attached to the clamp. -
Page 5: Power Supply Connection
POWER SUPPLY CONNECTIONS Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Please be advised to notice power supply’s voltage and frequency meet what are described on the nameplate of the product. It is recommended that each unit be power connected separately so that they may be individually switched on and off. -
Page 6: Dmx Terminator
DMX TERMINATOR In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX512 control signals. The DMX terminator is simply a Canon connector with a 120 (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last fixture in the chain. -
Page 7: Dmx Start Address Setup
Press button ENTER to save your settings or enter the sub-menus. Press button UP or DOWN to change the parameters (increase or decrease the numbers) Press button FUNC, it will return to the upper menu one by one. If the button not pressed, the system will go back to display status automatically. -
Page 8: Sound Operation
SOUND OPERATION To select different level(0-100) of sound sensitivity based on different operating environment under sound operation under Operation Mode. There are several different(0-6) sound effects for different operating environment under Sound Operation. Note: If several fixtures in series under Master/Slave mode, Only Master responds to external sound. OPERATION MENU Level 1 Level 2... - Page 9 Display Reverse Display Contrast 0~18 ( Default: 9 ) Display Dimming 0～10 ( Default: 10 ) Power On Hours Hour:XXX Information Software Version 1.0.1 Self Test Green Blue White Lamp Red & Green Green & Blue Red & Blue Red &Green &Blue Test Mode Manual Test Zoom...
-
Page 10: Dmx Protocol
0-255 Blue 0-255 White 0-255 Zoom 0-255 Location 0-255 Tilt 0-255 Location Tilt 0-255 P&T 0-255 Speed Keep Time 0.1s~25s Note: 1. There is only one projector to be set as a Master in a signal cable if Master’s functions used, Please disable DMX control signal. - Page 11 Area 2 Red 000-255 Linear adjustment in Red from light to dark of Area 2 Area 3 Red 000-255 Linear adjustment in Red from light to dark of Area 3 Area 4 Red 000-255 Linear adjustment in Red from light to dark of Area 4 Area 5 Red 000-255 Linear adjustment in Red from light to dark of Area 5...
-
Page 12: Display Information
Area3 Area2 Area4 Area1 Area7 Area5 Area6 DISPLAY INFORMATION LED Indications： DMX Signal OK DMX Indication NO DMX Signal Wireless DMX Signal available W-DMX Indication Not linked to any transmitter Flash Lose link with a transmitter or being linked with one Sound Operation on SOUND Indication Sound Operation off... -
Page 13: Product Cleaning
PRODUCT CLEANING To ensure the reliability of the fixture it should be kept clean. It is recommended that the fans should be cleaned every 15 days. The lens should also be regularly cleaned to maintain an optimum light output. Do NOT use any type of solvent containing chemical elements. - Page 14 DIMMER 0-100% linearly adjustable COLOR TEMPERATURE CORRECTION: Linear color temperature correction from 10000K to2700K. STROBE: Electronic strobe, 0-25 F.P.S LENS ANGLE: Beam Angle(1/2 Maximum) : 7°~42° Field Angle( 1/10 Maximum): 17°~60° CONTROL: DMX512, 5 pin interfaces 18channels in standard mode, and 43 channels in extended mode. Master/slave mode Stand-alone mode, Preset mode, Self test mode, mode...
-
Page 15: Component Order Codes
LIGHT OUTPUT : 60° LUX （lx） 1309 17° LUX （lx） 19739 4935 2193 1234 DISTANCE （M） 0 17° DIAMETER （M） 0 0.27 0.53 1.06 1.33 60° DIAMETER （M） COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK POWER SUPPLY 192010184 1 PCS 20W LED ASSAMBLY 230060361 1 PCS... -
Page 16: Ircuit Diagram
IRCUIT DIAGRAM 16/18... - Page 17 17/18...
- Page 18 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020266 Version: 20141013 18/18...
