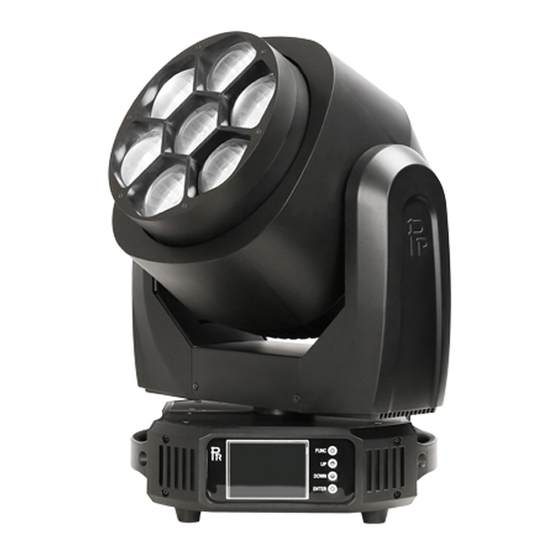

- Page 1 XLED 6007 PR-8128 This product manual contains important information about the safe installation and use of this product. Please read and follow these instructions carefully before installing and using the product and keep this manual in a safe place for future reference.
-
Page 2: Table Of Contents
Any damage caused by improper use will not be assumed by the manufacturer and / or dealer. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty. -
Page 3: Safety And Warnings
1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. Warning User Electrical Protective Flames High Goggles Manual shock Gloves Temperature When unpacking , check if there is transportation damage before using the projector. -
Page 4: Troubleshooting
cord supplied through the safety cord holes for safety support. Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from ● power mains. After running for 30minutes, the temperature of the housing of the projector is .After stable operation , ●... -
Page 5: Appearance
3. APPEARANCE HEAD YOKE BASE BOX 4. INSTALLATION RIGGING ● While transportation of the fixture, please lock both Pan and Tilt well; Before the use of the fixture, please unlock both. It’s forbidden to run the fixture while it’s locked. Take 1clamp and 1 the safety cord out from the package and mount 1 clamp on the BOTTOM of fixture with 2 retainers attached to the clamp. -
Page 6: Power Connections
WARNING: The projector MUST be lifted or carried by the HANDLES instead of clamps. ● .For safety the safety cord should afford 10 times the Projector’s weight. ● POWER CONNECTION ● Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Before power connection, please ensure the power supplied must match what the nameplate says. -
Page 7: Setup And Configuration
DMX TERMINATOR DMX TERMINATOR ● In the Controller mode, at the last projector in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. -
Page 8: Dmx Start Address
DMX START ADDRESS ● If many projector s are controlled by the controller, each projector should be set with a start address to receive signals sent by the controller and respond to it. The projector have 3 DMX modes. There are short mode, standard mode and extended mode. For example standard mode has 18channels, so set the No. -
Page 9: Operation Menu
Operation Mode. There are several different(0-8) sound effects for different operating environment under Sound Operation. Note: If several fixtures in series under Master/Slave mode, Only Master responds to external sound. 6. OPERATION MENU level menu level menu level menu level menu DMX Address 000 - 512 Standard... - Page 10 Defaults Motor and Color offset not restored Total Hours Display Board Pan and Tilt Temperature LED 1 LED 2 Software Ver. Inf. Electronic SN Pan Encoder Pan sensor Pan Over Temp. Pan Fault Tilt Encoder Tilt sensor Status Inform. Tilt Over Temp. Tilt Fault Pan Run Sensor Zoom Sensor...
-
Page 11: Dmx Protocol
5.) LOGO： Names Logo Remark Warning Display Invert Exit English Chinese 7. DMX PROTOCOL function Description Standard 16 Extended 16 Short 8 Value 000-007 008-127 Strobe from slow to fast 128-135 136-177 Fast closing and slow opening 178-185 Strobe 186-227 Fast opening and slow closing 228-235 236-249... -
Page 12: Display Signs
000-255 Linear change from dark to bright Area 4 Red 000-255 Linear change from dark to bright Area 4 Green 000-255 Linear change from dark to bright Area 4 Blue 000-255 Linear change from dark to bright Area4 White 000-255 Linear change from dark to bright Area 5 Red 000-255... -
Page 13: Technical Data
9. TECHNICAL DATA VOLTAGES 100V~240V AC,50/60Hz POWER CONSUMPTION 600W@220V LIGHT SOURCE LED: OSRAMS: 60W RGBW LED(SMT), Four in One Power: 60W,7pcs Color temperature: Linear change from 2700K to 10000K Rated life 50000hrs COLORS Linear RGBW ,color mixing with unlimited colors, macros DIMMER 0-100% linearly adjustable STROBE:... - Page 14 Total hours, DMX channel number, software versions are displayed and display inversion HOUSING: High temperature engineering-plastic, IP20 WEIGHT: 14Kg AMBIENT TEMPERATURE Maximum ambient temperature: 40 °C SIZES: LIGHT OUTPUT : 60 ° lux 4100 1215 3.3 °lux 325431 81358 36159 20339 13017 9040...
-
Page 15: Circuit Diagram And Pcb Connections
8. CIRCUIT DIAGRAM AND PCB CONNECTIONS CIRCUIT DIAGRAM ●... -
Page 16: Pcb Connections
PCB CONNECTIONS ● 1。 LED Driver Control Board of PR-8128 Name LED Driver Power 9，10 Front Lens Panel Motor 11，17 LED Lamp board thermal sensor 12， 13， 14 Zoom Motor Zoom Magnet Sensor Front Lens Panel Magnet Sensor 485 signal interface 18，19 24v Fan interface 2. -
Page 17: Component Order Codes
3. Pan & Tilt Board of PR-8128 Name Power Tilt Driver Pan Driver 485 signal 4，5 Optical-coupler for Tilt Optical-coupler for Pan Pan Magnet Sensor Tilt Magnet Sensor Reserved 9. COMPONENT ORDER CODES NAME PART NO. REMARKS POWER SWITCH 192010208 24V 25A 600W OSRAM’S 60W 4 IN ONE LED LAMP BOARD... - Page 18 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020474 Version: 20170704...
