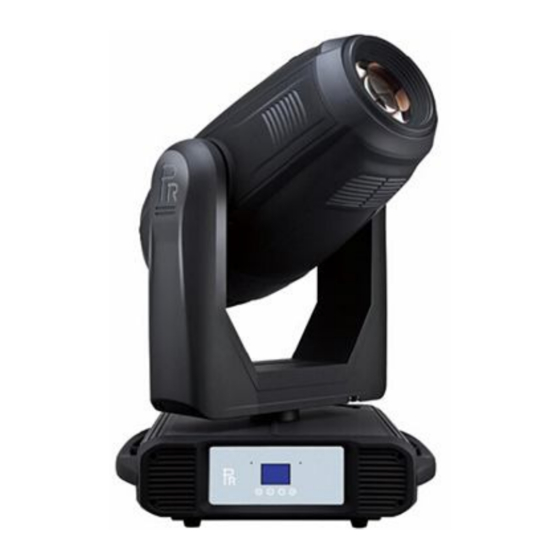

PR-6000 Spot
The user manual contains important information about the safe installation and use of a projector. Please read
and follow these instructions carefully and keep the manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-light ing.com
1/26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR-6000 Spot and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR Lighting PR-6000 Spot

Summary of Contents for PR Lighting PR-6000 Spot

  • Page 1 PR-6000 Spot The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-light ing.com...

  • Page 2: Table Of Contents

    INDEX 1. SAFETY AND WARNINGS 2. INSTUCTIONS CLEANING AND MAINTENANCE ● LUBRICATION ● TROUBLESHOOTING ● 3. APPEARANCE 4. INSTALLATION RIGGING ● POWER CONNECTIONS ● DMX CONTROL CONNECTIONs ● DMX TERMINATOR ● ALIGNMENT/INSTALLATION/REPLACEMENT OF A LAMP ● GOBO/COLOR FILTER REPLACEMENT ● 5.
  • Page 3 1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. User Electrical Protective High Warning Flames Goggles Manual shock Gloves Temperature When unpacking , check if there is transportation damage before using the projector.

  • Page 4: Cleaning And Maintenance

    There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety ● cord supplied through the safety cord holes for safety support. Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from ●...

  • Page 5: Troubleshooting

    TROUBLESHOOTING ● PROBLEM ACTION  Check the fuse on the power socket. The projector doesn’t switch on  Check the lamp.  The lamp is on but the projector doesn’t respond Make sure that the fixture’s start address is right ...

  • Page 6: Power Connections

    Take 2 clamps and the safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the underside of the base as shown above) To pass the SAFETY CORD through the HOLES for safety! Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning.

  • Page 7: Alignment/Installation/Replacement Of A Lamp

    DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT TO CONTROLLER TO TERMINATER DMX TERMINATOR ● In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals.

  • Page 8: Setup And Configuration

    GOBO REPLACEMENT ● Lock the tilt and loosen the 6 fast-fit screws on the upper cover ,After removing the cover, you will see the structures as the figure below. Before replacing a gobo on the fixed gobo wheel, use your finger to remove the spring tightening it and take the old one out with due care.

  • Page 9: Dmx Start Address

    Press button FUNC, it will return to the upper menu. If button FUNC not pressed, the default will show display status automatically. Shortcut key: Press UP and DOWN buttons together to invert the screen; Press DOWN and ENTER together to change between English and Chinese menus.

  • Page 10: Operation Menu

    6. OPERATION MENU First Menu Secondary Menu Third Menu Fourth Menu PR Lighting PR-6000 Spot DMX Address=XXX DMX Address Reset Reset Are You Sure Standard 16 DMX Mode Extended 16 (Default: Standard 16 ) Short 8 Lamp Control By Control Channel...
  • Page 11 CMY Invert CMY Invert (Default: Off) CMY Invert CTO Invert CTO Invert (Default: Off) CTO Invert Defaults Defaults (Default: Off) Defaults Restore Defaults Display On Always Display Mode Display After Delay Display Invert Display Invert Display Invert Display Options Display Dimming Full Display Contrast XX(1-21)
  • Page 12 Driver Board 1 Driver Board1 = Driver Board 2 Driver Board2= Driver Board 3 Driver Board3= Driver Board 4 Driver Board4= Pan and Tilt Board= Pan and Tilt Board Head Sensor Head Sensor = Display Board Display Board System=XXX Boot=XXX Driver Board 1 Driver Board 1 System=XXX...
  • Page 13 Factory Setup Factory Setup Factory Setup Test Mode Self Test Self Test Self Test S=X C=X Lamp Status Lamp On/Off Lamp Manual Control Turn Lamp On Turn Lamp Off Wireless Mode XLR First Wireless Mode Wireless Only Wireless Options Wireless Mode Wireless Mode XLR Only (Only for the projectors...
  • Page 14 Focus Zoom Pan Coarse Pan Fine Tilt Coarse Tilt Fine M-Speed Delay Link to Step Shutter Dimmer Dimmer Macro Cyan Yellow Magenta Color Wheel Iris Iris Macro Fixed Gobo R Gobo Wheel R Gobo Rotate R Gobo Rotate L R Gobo Static Scene 2 Wheel R Gobo...

  • Page 15: Dmx Protocol

    Reset User2 Reset User2 Unlock 2 3 4 Reset Static Reset Static Scene Scene Unlock 2 3 4 Note: 1. The parameters transmitted from the mater if multiple units are synchronized include: DMX channel mode ,Display setting, operation mode including user memory 2.
  • Page 16 046-053 Color 3 054-060 Color3/Color4 061-068 Color 4 069-075 Color4/Color5 076-083 Color 5 084-090 Color5/Color6 091-098 Color 6 099-105 Color6/Color7 106-113 Color 7 114-120 Color7/white 121-127 White Forward Rainbow effect from slow to 128-191 fast Reverse Rainbow effect from slow to 192-255 fast Iris...
  • Page 17 128-156 Forward Rotation from slow to fast 157-185 Reverse Rotation from slow to fast 186-196 Gobo1 shakes from slow to fast 197-208 Gobo2 shakes from slow to fast 209-220 Gobo3shakes from slow to fast 221-232 Gobo4shakes from slow to fast 233-244 Gobo5 shakes from slow to fast 245-255...

  • Page 18: Led Indication

    Focus 000-255 Focusing in 16 bit Focus Fine 000-255 Linear Zooming Zoom 000-255 Zooming in 16 bit Zoom Fine 000-255 Pan Rotation 000-255 Tilt in 16 Bit Pan Fine 000-255 Tilt Rotation Tilt 000-255 Tilt in 16 Bit Tilt Fine Pan &...

  • Page 19: Technical Data

    Color Wheel Error（Driver Board1 motor1 ） Sensor Err S1-M1 CTO error （Driver Board1 motor2） Sensor Err S1-M2 Sensor Err S1-M3 Cyan Error（Driver Board1 motor3） Sensor Err S1-M4 Yellow Error（Driver Board1 motor4） Sensor Err S1-M5 Magenta Error（Driver Board1 motor5） Sensor Err S2-M2 Fixed Gobo Wheel Error（Driver Board2 motor2）...
  • Page 20 LAMP PHILIPS MSR GOLD 2000/1 FastFit Color Temperature 5800K Single ended Ceramic Stand Manufacturers Rated Lamp Life 750hours 090070041A COLORS 090070047A CMY linear mixing system with macros 1 color wheel: 7colors+ open, half color effect Rainbow effect with bi-directional and variable speeds Stepping/linear color changing 090070044A Yellow...
  • Page 21 Rotating gobo Wheel2 1 fixed gob wheel: 7 replaceable gobos+ open Gobo shake effect with variable speeds, bi-directional scrolling with variable speeds Gobo outer size: 36.3mm Gobo image size: 26mm PRISM 1pc of 3-facet prism , Bi-directional rotation with variable speeds and indexing function FROST 1pc frost filter, linear frost effect IRIS...
  • Page 22 BEAM ANGLE linear zoom 7.3°～ 68°with 16 bit function CONTROL DMX512, 3 pins and 5 pins interfaces RMD control protocol 25channels in short mode, 31channels in standard mode and 38channels in extended mode Self-test mode OTHER FUNCTIONS Adjustable Pan & Tilt speed Lamp and Total hours displayed LCD English and Chinese Display with Contrast and brightness adjustable Energy saving ballast...

  • Page 23: Circuit Diagram And Pcb Connections

    LIGHT OUTPUT 63° （ lux） 1398 7.5°（ lux） 96371 24093 10708 6023 3855 2677 63° 7.5° DISTANCE （ m） 7.5° DIAM ETER （ m） 0.66 1.33 1.99 2.65 3.31 3.98 63° DIAM ETER （m） 5.55 11.11 16.66 22.21 27.76 33.32 11.

  • Page 24: Component Order Codes

    12. COMPONENT ORDER CODES 24/26...
  • Page 25 NAME CODE NUMBER REMARKS POWER SWITCH 192010136 S-350-24 POWER FILTER 193020008 20A 115/250VAC THERMAL SWITCH 190010150 250V-16A ELECTRONIC BALLAST 040070132 2000W IGNITER 040090066 2000W LAMP 100070044 MSR GOLD 2000/1 FASTFIT TILT BELT 290151320 213-3M-5 PAN BELT 290151328 885-3M-9 CHAMBER FAN 030060064 LAMP FAN 030060065...
  • Page 26 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted! P/N: 320020429 Version: 20170718(Preliminary）...
