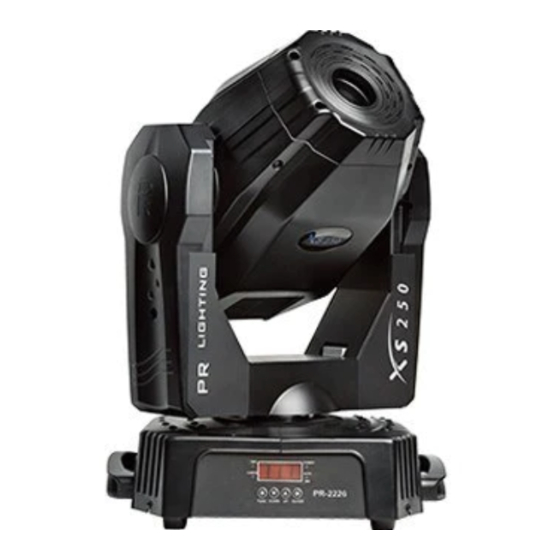

XS 250
PR-2226
This product manual contains important information about the safe installation and use of this
projector. Please read and follow these instructions carefully and keep this manual in a safe place
for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XS 250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR Lighting XS 250

Summary of Contents for PR Lighting XS 250

  • Page 1 XS 250 PR-2226 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...
  • Page 2 INDEX SAFE USAGE OF THE PROJECTOR INSTALLING THE PROJECTOR FITTING THE LAMP POWER SUPPLY – MAINS CONTROL CONNECTIONS DMX TERMINATOR SETUP OPTIONS-PROJECTOR CONFIGURATION TO SET THE DMX START ADDRESS MASTER/SLAVE MODE STAND-ALONE MODE OPERATION MENU ERROR MESSAGES REPLACING GOBOS DMX PROTOCOL LED INDICATION MAINTENANCE LUBRICATION...

  • Page 3: Safe Usage Of The Projector

    SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The projector is for indoor use only, IP20.

  • Page 4: Install The Projector

    Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning. Always ensure that the structure that you are going to mount the projector is secure and is strong enough to support a weight of XS 250.

  • Page 5: Power Supply-Mains

    Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. The body of the plug is not connected in any way. The XS 250 accepts digital control signals in protocol DMX512 (1990).

  • Page 6: Dmx Terminator

    TO SET THE DMX START ADDRESS Each XS 250 must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the controller.

  • Page 7: Standalone Mode

    been enabled. Press button FUNC, it will return to the upper menu one by one. STAND-ALONE MODE Operate the projector without connecting a controller, enable the master mode in the operation panel, the projector will run in Stand-Alone mode automatically. MASTER/SLAVE MODE Without using a controller, many projectors can run synchronously in the Master/Slave mode by linking them with each other.

  • Page 8: Operation Menu

    OPERATION MENU 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL 5th LEVEL 6th LEVEL DMX Address 001－501 in Short Mode 001－497 in Standard AddR Mode 001－495 in Extended Mode RST? （Defaults：STd） SHRT NORM LdMX CNFG （Defaults：NORM） HOLd CTRL LAMP （Defaults：CTRL） STEP COLR （Defaults：STEP）...
  • Page 9 （Defaults：OFF） Status = XXX STRT Control = LAMP TIME UM 1 TIME UM 2 TIME MSTR PM 1 TIME PM 2 MOdE TIME （Defaults :dMX） PM 3 TIME UM 1 TIME UM 2 TIME SLAV PM 1 TIME PM 2 TIME PM 3 STAT...
  • Page 10 PANH XXX（0~255） PANL XXX（0~255） TLTH XXX（0~255） TLTL XXX（0~255） MSPd XXX（000~255） dELY （0.25s~100min） LINK XX（1~28） SHUT XXX（0~255） XXX（0~255） COLR XXX（0~255） GObO XXX（0~255） RGbO XXX（0~255） GROT XXX（0~255） PRSM XXX（0~255） STAT PROT XXX（0~255） FOCS XXX（0~255） PANH XXX（0~255） PANL XXX（0~255） TLTH XXX（0~255） TLTL XXX（0~255） MSPd XXX （000~255）...

  • Page 11: Error Messages

    ERROR MESSAGES In the course of launch, XS 250 examines automatically whether there are errors and if there are, it will display information as follows: Display Message SE 1 Zoom (1# motor) error SE 6 Rotating Gobo wheel (6# motor) error...

  • Page 12: Dmx Protocol

    DMX PROTOCOL Short Standard Extended FUNCTION DESCRIPTION mode mode mode 000-009 Black 011-025 Open Strobe 026-225 Strobe speed from slow to fast 226-255 Open Dimmer 000-255 Dimming from dark to light (0-100%) Dimmer Fine 000-255 Dimmer in 16 Bit precision 000-020 White 021-028...
  • Page 13 Gobo shake 6 (From slow to fast) 216-223 224-231 Gobo shake 7 (From slow to fast) 232-239 Gobo shake 8 (From slow to fast) Gobo shake 9 (From slow to fast) 240-247 248-255 Gobo shake 10 (From slow to fast) 000-016 white Gobo1...

  • Page 14: Led Indication

    LED INDICATION DMX signal OK Green No DMX signal Flash DMX signal error Yellow Setting the panel Blue Power Running slave mode or self test mode Red/Green Green Running master mode MAINTENANCE If the projector’s lens becomes damaged or broken it should be replaced. If the lamp becomes damaged or deformed in any way it must be replaced.

  • Page 15: Troubleshooting

    TROUBLESHOOTING PROBLEM ACTION Check the fuse on the power socket. The projector doesn’t switch on Replace the lamp. The lamp comes on but the projector Make sure that the projector is correctly configurated. doesn’t respond to the controller Replace or repair the DMX cable. The projector only functions intermittently Make sure the fan is working and not dirty.

  • Page 16: Technical Data

    TECHNICAL DATA VOLTAGES: 220V, 50Hz Options: 100V/120V/200V/220V/230V/240V AC，50/60Hz POWER CONSUMPTION: 370W LAMP: PHILIPS MSD 250W/2 Colour Temperature 8500°K Socket GY9.5, single ended Manufacturers Rated Lamp Life 2000 Hours replacement OSRAM HSD 250/78 Colour Temperature 7800°K Socket GY9.5, single ended Manufacturers Rated Lamp Life 3000 Hours replacement CSD250/2/SE Colour Temperature...
  • Page 17 FOCUS: DMX controlled focus DIMMER: 0-100% linearly adjustable SHUTTER: Double shutter blades, 0.3~12 F.P.S HEAD MOVEMENT: Pan 540º, Tilt 270º with auto position correction BEAM ANGLE: 16° CONTROL: DMX512, 3 pin, 5 pin interfaces RDM control protocol 12 channels in short mode, 16 channels in standard mode, and 218channels in extended mode. Master/Slave mode Stand-alone mode Self-test mode...
  • Page 18 LIGHT OUTPUT: 18/22...
  • Page 19 M4-1 M4-2 STROBE STROBE PRISM FIXED GOBOS COLOUR FOCUS GOBO ROTATING ROTATING-GOBO PRISM ROTATING TILT AC Plug Filter POWER-SW Delay Fuse 240V 230V 230V 220V 24VAC 200V 120V 100V FOCUS PRISM PRISM ROTATING STROBE ROTATING-GOBOGOBO ROTATING FIXED GOBOS COLOUR TILT Transformer 50Hz 60Hz...

  • Page 20: Component Order Codes

    COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK 040030039 21V 100W/230V 320W TRANSFORMER 190010065 75℃ THERMOSTAT 040070022 230V 50/60Hz BALLAST 040090016 230V 50/60Hz IGNITOR LAMP 100050057 MSD250/2 TILT DRIVE BELT 290151252 HTD-612-3M 290151251 HTD-447-3M PAN DRIVE BELT 030060057 DC24V/2.88W FAN IN BASE 030060053 24V 1.4W FAN NEAR THE LAMP...
  • Page 21 21/22...
  • Page 22 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020009B Version: 20101129 22/22...
