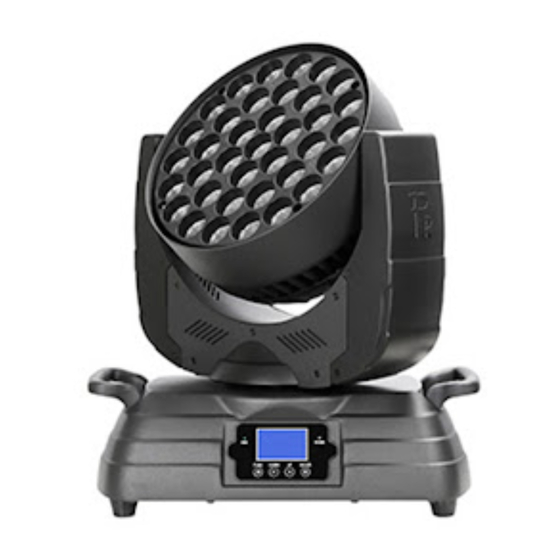

XLED 1037
PR-8120
This product manual contains important information about the safe installation and use of this projector.
Please read and follow these instructions carefully and keep this manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-light ing.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XLED 1037 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR Lighting XLED 1037

Summary of Contents for PR Lighting XLED 1037

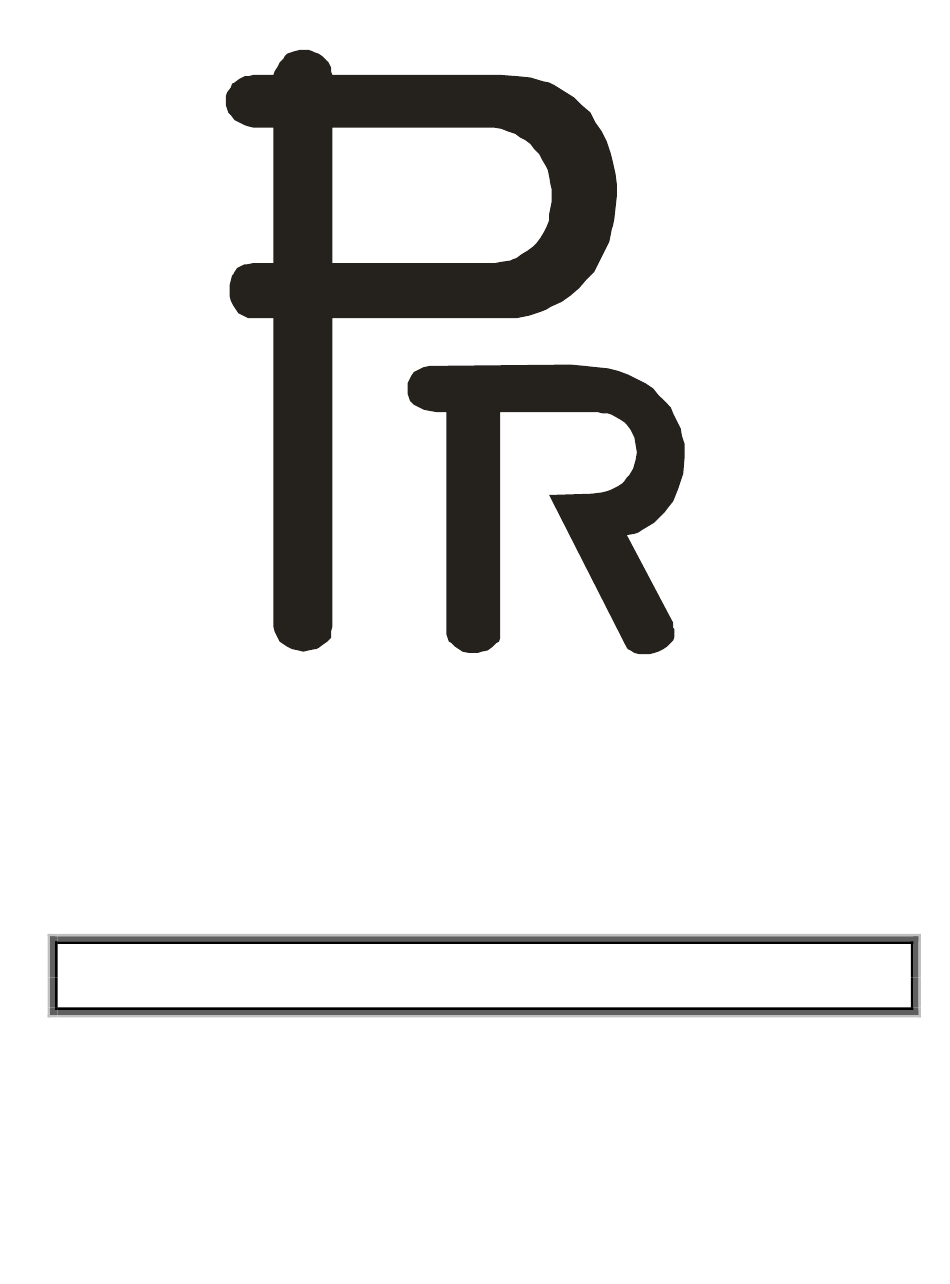

  • Page 1 XLED 1037 PR-8120 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-light ing.com...

  • Page 2: Table Of Contents

    INDEX SAFE USAGE OF THE PROJECTOR INSTALLING THE PROJECTOR POWER SUPPLY – MAINS CONTROL CONNECTIONS DMX TERMINATOR SETUP OPTIONS-PROJECTOR CONFIGURATION TO SET THE DMX START ADDRESS OPERATION MENU DMX PROTOCOL INDICATION OF LED DIGITAL TUBE MAINTENANCE KEEPING THE PROJECTOR CLEAN TROUBLESHOOTING TECHNICAL DATA ELECTRICAL DIAGRAM...

  • Page 3: Safe Usage Of The Projector

    SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The projector is for indoor use only, IP20.

  • Page 4: Installing The Projector

    INSTALL THE PROJECTOR Take 2 clamps and 1 safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the underside of the base as shown above) Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning.

  • Page 5: Power Supply-Mains

    POWER SUPPLY-MAINS Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel of the projector.

  • Page 6: Dmx Terminator

    electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. The connections are illustrated below. DMX TERMINATOR CONNECTION Connect a 120...
  • Page 7 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL AddR （XXX:1~512） (DMX address) (Standard mode) (DMX mode，Default: STD) (Extended mode) dISP (Display settings Default: ON) (Shut off digital CRT without pressing buttons in 5 minutes) xyCH Pan and Tilt Swap (Default: OFF) xyCP Pan and Tilt Invert (Default: OFF)
  • Page 8 Tilt 000-255 RESE (DMX mode) PRUN (Preset memory） ERUN (User memory) CH01 000-255 Strobe CH02 000-255 Red Dimming CH03 000-255 Green Dimming mENU CH04 (Operation mode) 000-255 Blue Dimming CH05 ET XX 000-255 White Dimming (User memory,ET01~ET16） CH06 000-255 Zoom CH07 000-255 CH08...

  • Page 9: Dmx Protocol

    DMX PROTOCOL Standard Extended FUNCTION DESCRIPTION mode mode No Strobe 000-015 Strobe Speed form Slow to Fast 016-255 Dimmer Linear Dimming from Dark to Bright 000-255 Dimmer Fine Dimmer in 16Bit 000-255 000-031 032-063 Green 064-095 Blue 096-127 Color Macros Yellow 128-159 Cyan...

  • Page 10: Indication Of Led Digital Tube

    INDICATION OF LED DIGITAL TUBE DMX signal OK Decimal point of the first digital tube No DMX signal Master / slave signal is OK Decimal point of the third digital tube No master / slave signal When setting master mode Decimal point of the fourth digital tube When setting slave mode Parameters that LED digital tubes display...

  • Page 11: Troubleshooting

    TROUBLESHOOTING PROBLEM ACTION  Power Cable not connected well  Power supply damaged or not connected well, a qualified Technician The projector can’t be started should be required  Control board not connected well and a qualified Technician should be required.

  • Page 12: Technical Data

    TECHNICAL DATA VOLTAGES: 100V~240V AC，50/60Hz POWER CONSUMPTION: 450W@220V LED: CREE (MCE4CT-A2-KPEK-A3LWC0000) Model Power consumption 10W(RGBW) Quantity 37pcs Manufacturers Rated LED Life 50000 Hours COLOURS: RGBW linear color mixing with Macro COLOR TEMPERATURE CORRECTION Linear color temperature correction from 3200K to 10000K DIMMER: 0-100% linearly adjustable STROBE:...
  • Page 13 RDM Control Protocol 15channels in standard mode, and 24 channels in extended mode Master/Salve Synchronous Control Mode Static Scene Mode Single Mode Self Test Mode OTHER FUNCTIONS: Pan & Tilt Speed adjustable Auto speed adjustment of Fans LED Lamp Overheating Protection Display’s Brightness and Contrast adjustable Lamp/Projector use Time display DMX512 Channel Value Display...
  • Page 14 LIGHT OUTPUT: 70°LUX PR-8120(WASH) 27°LUX 3500 DISTANCE(m) 27°DIAMETER(m) 2.42 4.84 7.27 9.69 12.11 14.53 70°DIAMETER(m) 6.18 12.37 18.55 24.74 30.92 37.11 14/16...

  • Page 15: Electrical Diagram

    15/16...

  • Page 16: Component Order Codes

    First Lens 090010172 Stepper Motors 030040174 Stepper Motors 030040162 20DAM10D2B-K(Portescap) Cooling Fans(Bi-Sonic) 030060052 PWM Speed variable Fan 030060074 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020108 Version: 20121120 (Preliminary） 16/16...
