SREL, SREL.ADV, SREL.W SREL.G2,
SREL.G2.W, SREL2.G2

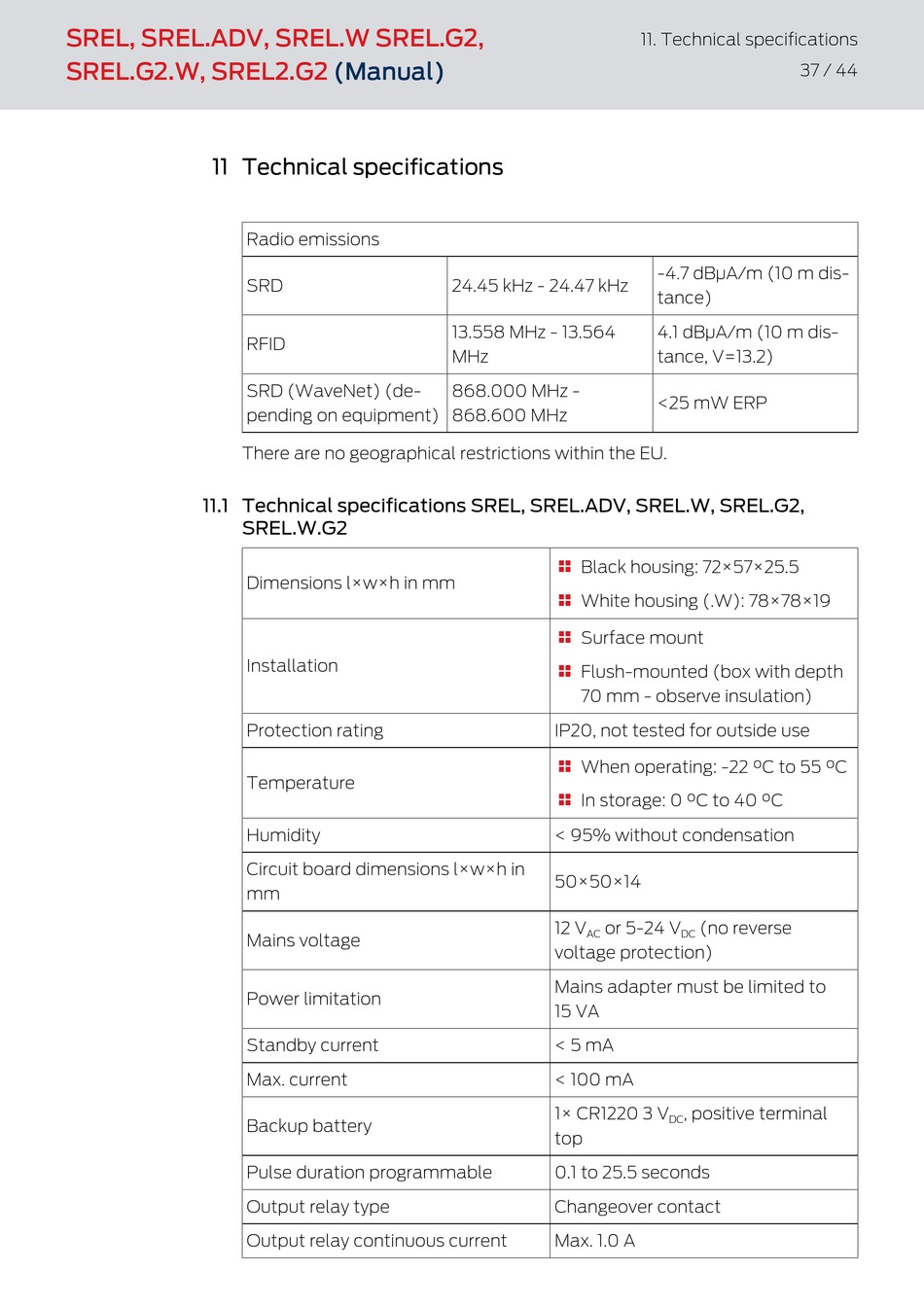

11 Technical specifications

11.1 Technical specifications SREL, SREL.ADV, SREL.W, SREL.G2,
(Manual)
Radio emissions
SRD
RFID
SRD (WaveNet) (de-
pending on equipment)
There are no geographical restrictions within the EU.
SREL.W.G2
Dimensions l×w×h in mm
Installation
Protection rating
Temperature
Humidity
Circuit board dimensions l×w×h in
mm
Mains voltage
Power limitation
Standby current
Max. current
Backup battery
Pulse duration programmable
Output relay type
Output relay continuous current
24.45 kHz - 24.47 kHz
13.558 MHz - 13.564
MHz
868.000 MHz -
868.600 MHz
Black housing: 72×57×25.5

White housing (.W): 78×78×19

Surface mount

Flush-mounted (box with depth

70 mm - observe insulation)
IP20, not tested for outside use
When operating: -22 °C to 55 °C

In storage: 0 °C to 40 °C

< 95% without condensation
50×50×14
12 V or 5-24 V
AC
voltage protection)
Mains adapter must be limited to
15 VA
< 5 mA
< 100 mA
1× CR1220 3 V
top
0.1 to 25.5 seconds
Changeover contact
Max. 1.0 A
11. Technical specifications
37 / 44
-4.7 dBµA/m (10 m dis-
tance)
4.1 dBµA/m (10 m dis-
tance, V=13.2)
<25 mW ERP
(no reverse
DC
, positive terminal
DC
