SREL, SREL.ADV, SREL.W SREL.G2,
SREL.G2.W, SREL2.G2

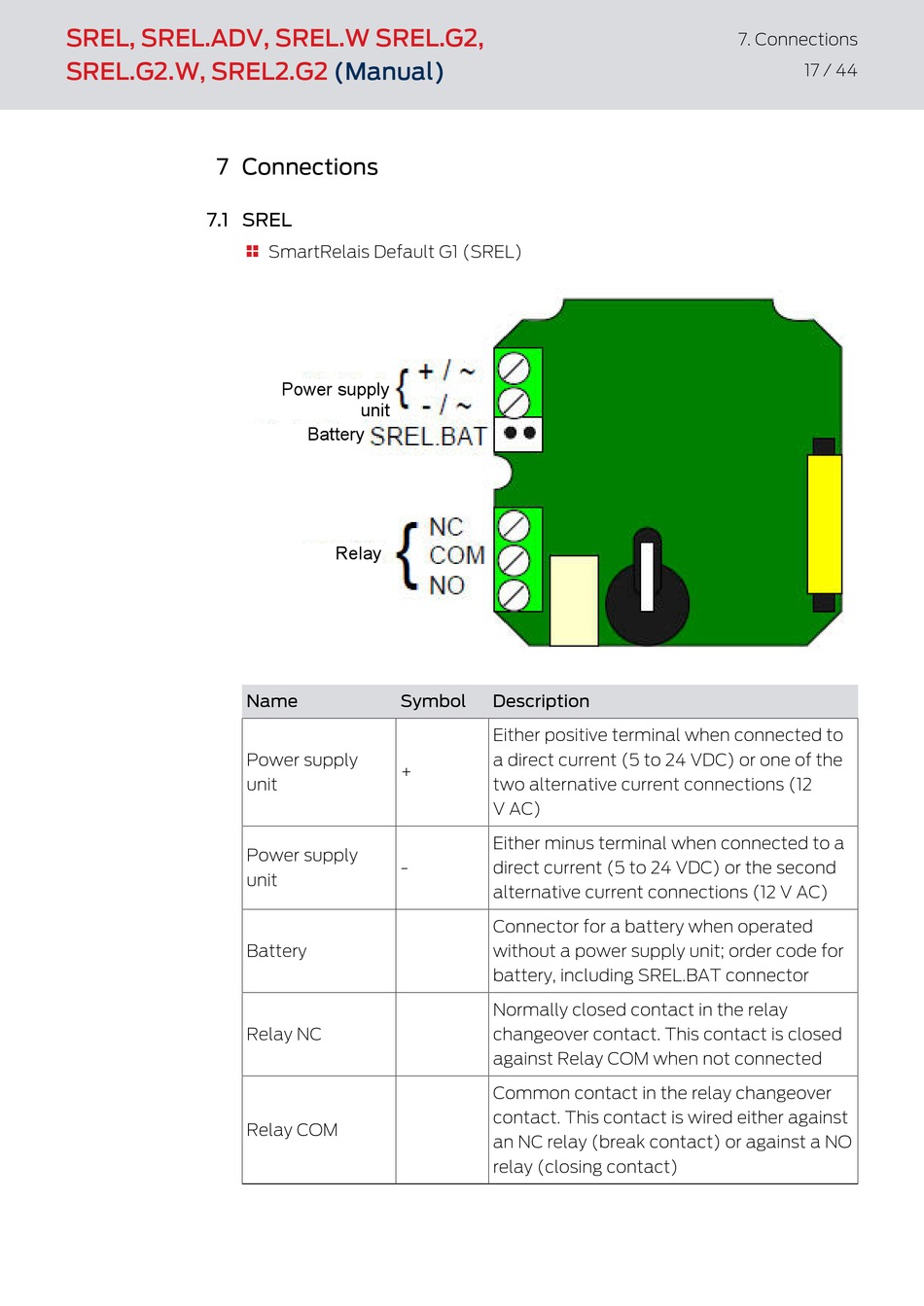

7 Connections

7.1 SREL

(Manual)
SmartRelais Default G1 (SREL)

Power supply
unit
Battery
Relay
Name Symbol
Power supply
+
unit
Power supply
-
unit
Battery
Relay NC
Relay COM
Description
Either positive terminal when connected to
a direct current (5 to 24 VDC) or one of the
two alternative current connections (12
V AC)
Either minus terminal when connected to a
direct current (5 to 24 VDC) or the second
alternative current connections (12 V AC)
Connector for a battery when operated
without a power supply unit; order code for
battery, including SREL.BAT connector
Normally closed contact in the relay
changeover contact. This contact is closed
against Relay COM when not connected
Common contact in the relay changeover
contact. This contact is wired either against
an NC relay (break contact) or against a NO
relay (closing contact)
7. Connections
17 / 44
