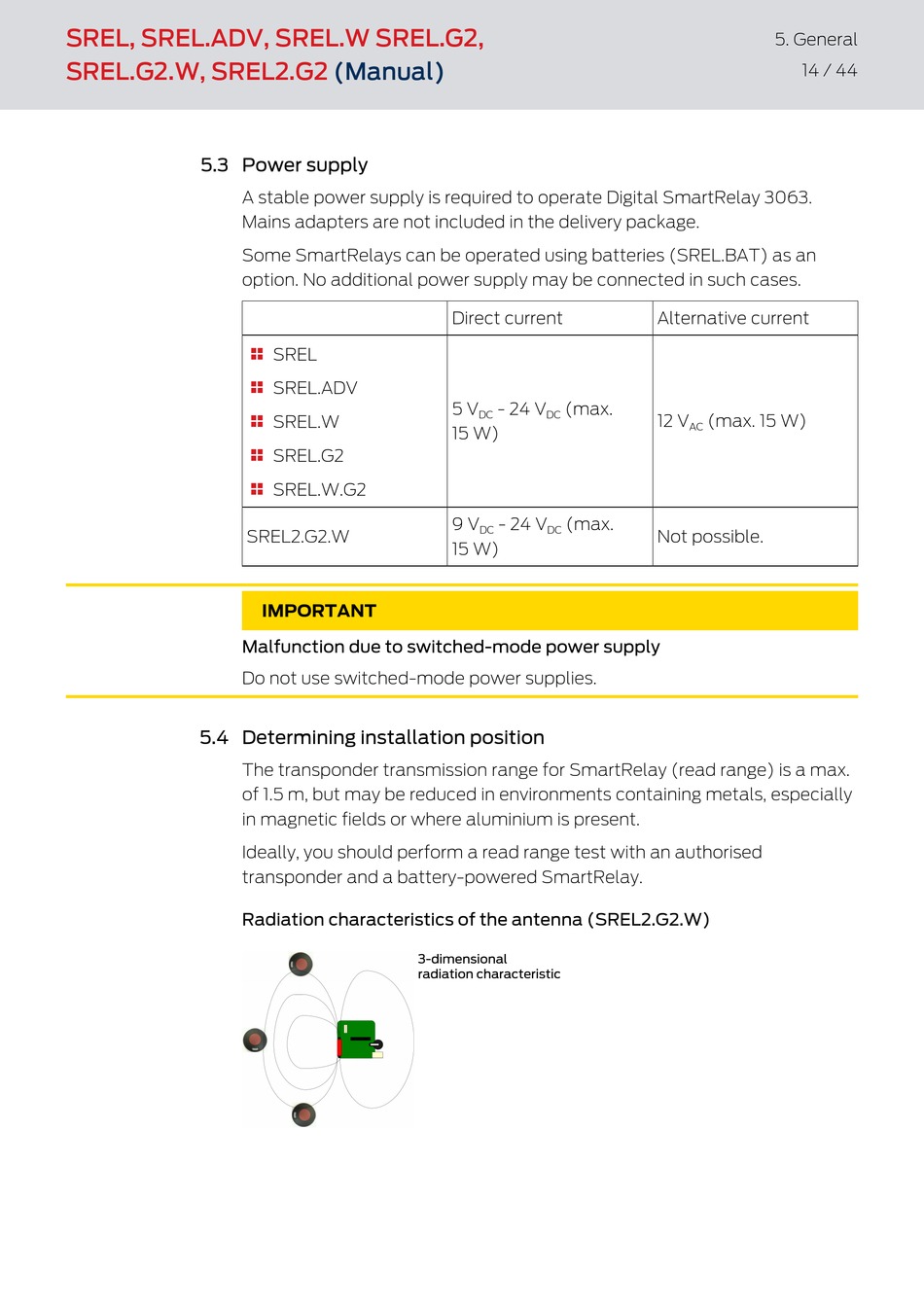

5.3 Power supply

5.4 Determining installation position

(Manual)
A stable power supply is required to operate Digital SmartRelay 3063.
Mains adapters are not included in the delivery package.
Some SmartRelays can be operated using batteries (SREL.BAT) as an
option. No additional power supply may be connected in such cases.
SREL

SREL.ADV

SREL.W

SREL.G2

SREL.W.G2

SREL2.G2.W
IMPORTANT
Malfunction due to switched-mode power supply
Do not use switched-mode power supplies.
The transponder transmission range for SmartRelay (read range) is a max.
of 1.5 m, but may be reduced in environments containing metals, especially
in magnetic fields or where aluminium is present.
Ideally, you should perform a read range test with an authorised
transponder and a battery-powered SmartRelay.
Radiation characteristics of the antenna (SREL2.G2.W)
Direct current
5 V - 24 V (max.
DC DC
15 W)
9 V - 24 V (max.
DC DC
15 W)
3-dimensional
radiation characteristic
5. General
14 / 44
Alternative current
12 V (max. 15 W)
AC
