SREL, SREL.ADV, SREL.W SREL.G2,
SREL.G2.W, SREL2.G2

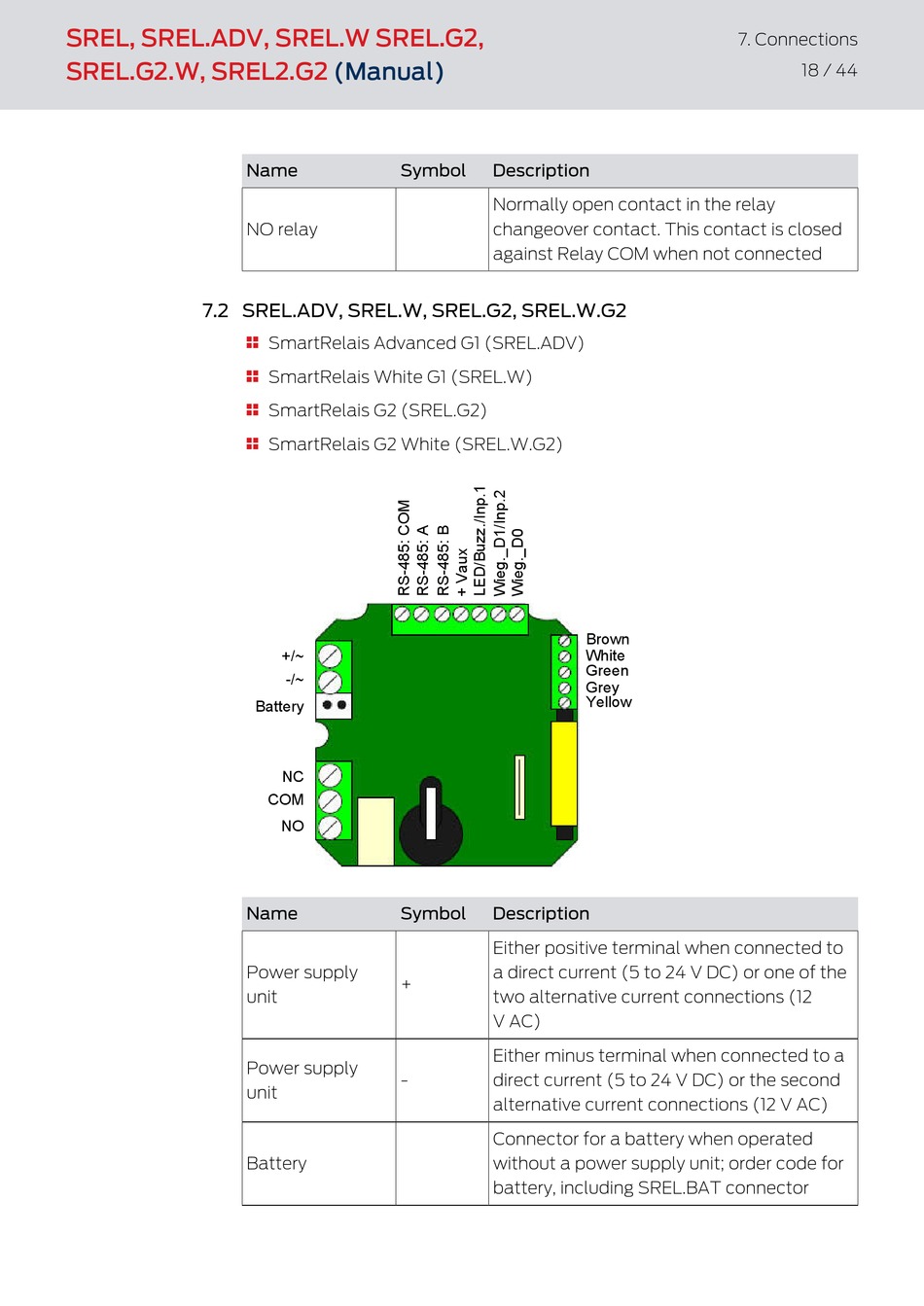

7.2 SREL.ADV, SREL.W, SREL.G2, SREL.W.G2

(Manual)
Name Symbol
NO relay
SmartRelais Advanced G1 (SREL.ADV)

SmartRelais White G1 (SREL.W)

SmartRelais G2 (SREL.G2)

SmartRelais G2 White (SREL.W.G2)

+/~
-/~
Battery
NC
COM
NO
Name Symbol
Power supply
+
unit
Power supply
-
unit
Battery
Description
Normally open contact in the relay
changeover contact. This contact is closed
against Relay COM when not connected
Brown
White
Green
Grey
Yellow
Description
Either positive terminal when connected to
a direct current (5 to 24 V DC) or one of the
two alternative current connections (12
V AC)
Either minus terminal when connected to a
direct current (5 to 24 V DC) or the second
alternative current connections (12 V AC)
Connector for a battery when operated
without a power supply unit; order code for
battery, including SREL.BAT connector
7. Connections
18 / 44
