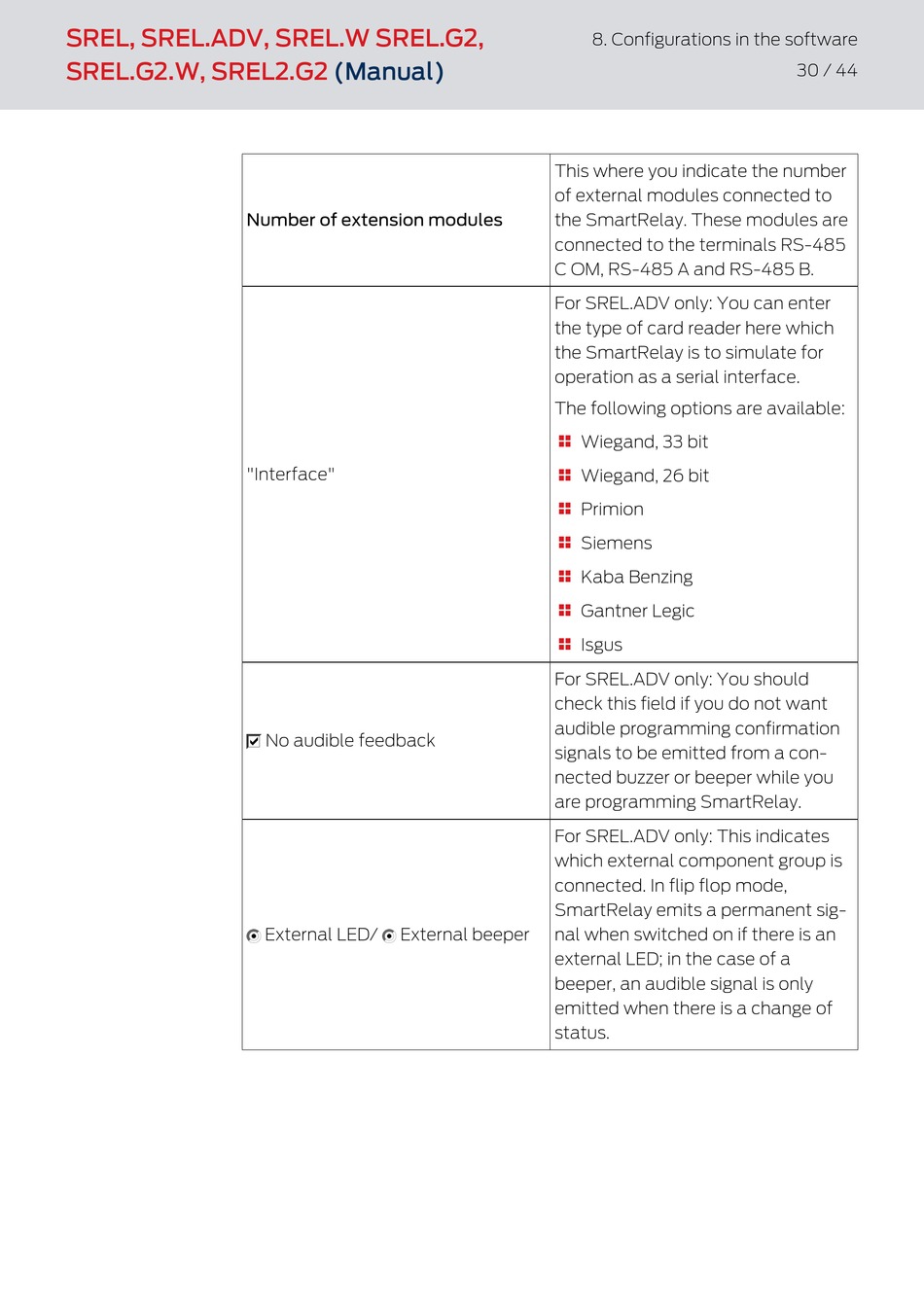

Simons Voss Technologies SREL Manual page 30

SREL, SREL.ADV, SREL.W SREL.G2,
SREL.G2.W, SREL2.G2 (Manual)
Number of extension modules
"Interface"
No audible feedback
External LED/ External beeper
8. Configurations in the software
This where you indicate the number
of external modules connected to
the SmartRelay. These modules are
connected to the terminals RS-485
C OM, RS-485 A and RS-485 B.
For SREL.ADV only: You can enter
the type of card reader here which
the SmartRelay is to simulate for
operation as a serial interface.
The following options are available:
Wiegand, 33 bit

Wiegand, 26 bit

Primion

Siemens

Kaba Benzing

Gantner Legic

Isgus

For SREL.ADV only: You should
check this field if you do not want
audible programming confirmation
signals to be emitted from a con-
nected buzzer or beeper while you
are programming SmartRelay.
For SREL.ADV only: This indicates
which external component group is
connected. In flip flop mode,
SmartRelay emits a permanent sig-
nal when switched on if there is an
external LED; in the case of a
beeper, an audible signal is only
emitted when there is a change of
status.
30 / 44
