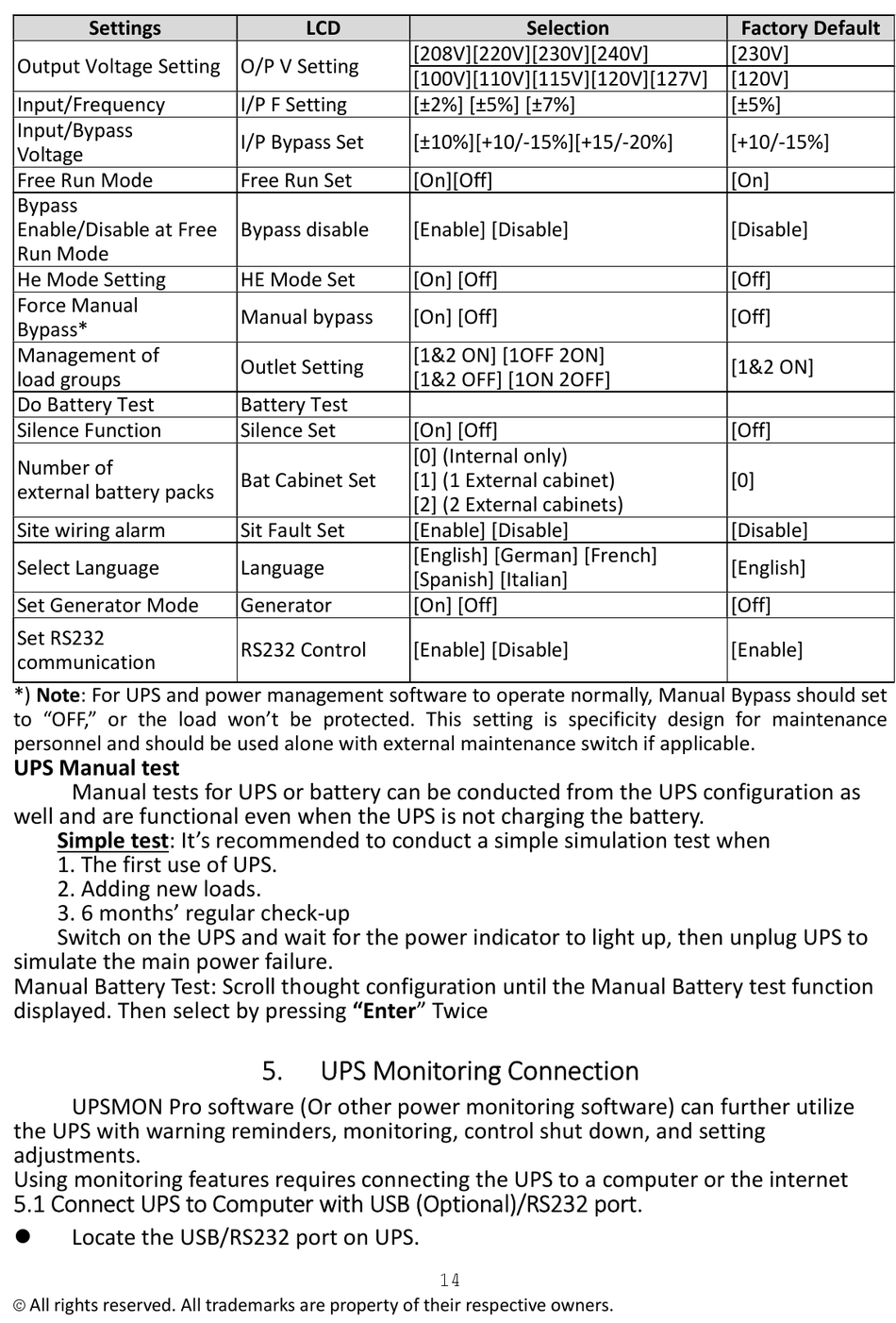

Ups Monitoring Connection; Connect Ups To Computer With Usb (Optional)/Rs232 Port - Powercom 1000 User Manual

Settings
Output Voltage Setting O/P V Setting
Input/Frequency
Input/Bypass
Voltage
Free Run Mode
Bypass
Enable/Disable at Free
Run Mode
He Mode Setting
Force Manual
Bypass*
Management of
load groups
Do Battery Test
Silence Function
Number of
external battery packs
Site wiring alarm
Select Language
Set Generator Mode
Set RS232
communication
*) Note: For UPS and power management software to operate normally, Manual Bypass should set
to "OFF," or the load won't be protected. This setting is specificity design for maintenance
personnel and should be used alone with external maintenance switch if applicable.
UPS Manual test
Manual tests for UPS or battery can be conducted from the UPS configuration as
well and are functional even when the UPS is not charging the battery.
Simple test: It's recommended to conduct a simple simulation test when
1. The first use of UPS.
2. Adding new loads.
3. 6 months' regular check-up
Switch on the UPS and wait for the power indicator to light up, then unplug UPS to
simulate the main power failure.
Manual Battery Test: Scroll thought configuration until the Manual Battery test function
displayed. Then select by pressing "Enter" Twice
UPSMON Pro software (Or other power monitoring software) can further utilize
the UPS with warning reminders, monitoring, control shut down, and setting
adjustments.
Using monitoring features requires connecting the UPS to a computer or the internet

5.1 Connect UPS to Computer with USB (Optional)/RS232 port.

Locate the USB/RS232 port on UPS.

© All rights reserved. All trademarks are property of their respective owners.
LCD
I/P F Setting
I/P Bypass Set
Free Run Set
Bypass disable
HE Mode Set
Manual bypass
Outlet Setting
Battery Test
Silence Set
Bat Cabinet Set
Sit Fault Set
Language
Generator
RS232 Control
5.

UPS Monitoring Connection

Selection
[208V][220V][230V][240V]
[100V][110V][115V][120V][127V] [120V]
[±2%] [±5%] [±7%]
[±10%][+10/-15%][+15/-20%]
[On][Off]
[Enable] [Disable]
[On] [Off]
[On] [Off]
[1&2 ON] [1OFF 2ON]
[1&2 OFF] [1ON 2OFF]
[On] [Off]
[0] (Internal only)
[1] (1 External cabinet)
[2] (2 External cabinets)
[Enable] [Disable]
[English] [German] [French]
[Spanish] [Italian]
[On] [Off]
[Enable] [Disable]
14
Factory Default
[230V]
[±5%]
[+10/-15%]
[On]
[Disable]
[Off]
[Off]
[1&2 ON]
[Off]
[0]
[Disable]
[English]
[Off]
[Enable]
