Summary of Contents for Powercom 600A

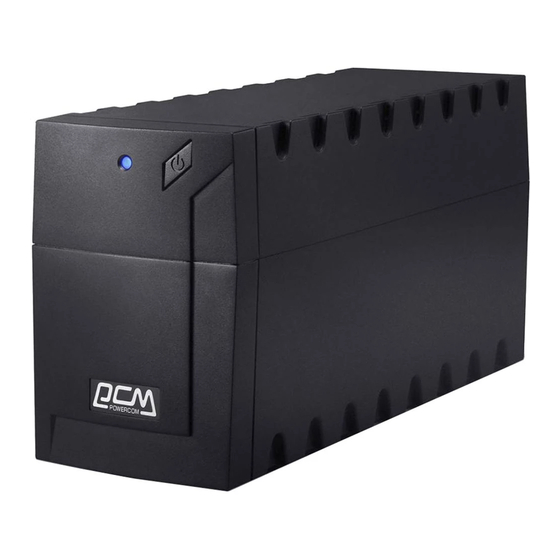

- Page 1 U P S Line-Interactive 600VA-1000VA ■USER MANUAL■...
- Page 2 EMC Statement These products are tested and thereby comply with the conditions of CE regulation, which established to offer sufficient protection against dangerous interference for installation. Installation and use of the equipment should comply with the instructions provided to avoid such interference due to the amount of radiofrequency energy that generates by the equipment;...
-
Page 3: Table Of Contents
Table of content IMPORTANT SAFETY INSTRUCTION ............3 Introduction ....................4 Installation ....................4 3.1 Rear panel view ..................4 3.2 Connection to Main and Load ..............4 Operation ....................5 4.1 General Description .................. 5 4.2 System Configuration ................5 4.3 UPS Control .................... -
Page 4: Important Safety Instruction
1. IMPORTANT SAFETY INSTRUCTION WARNING: SAVE THESE INSTRUCTIONS!! WARNING: Manual contains important instructions of UPS and batteries during installation and maintenance. Follow this instruction at all time WARNING: It is recommended to install UPS in an ANSI/NFPA75 room in which temperature ... -
Page 5: Introduction
Introduction The information provided in this manual covers Line-Interactive 500VA-1000VA uninterruptible power system (UPS). This manual contains basic functions, operating procedures, and emergencies, also including information on how to ship, store, handle, and install the equipment. Only detailed requirements of the UPS units described herein. The installation must carry out according to this manual. -
Page 6: Operation
(Optional) To protect your telecom/internet system, use RJ45/RJ11 cable to install the input/output cable with matching in/out jack. Operation Necessary information for the operation of the unit is covered in this chapter. Normally UPS runs automatically, but on a few occasions such as just after installation, all procedures are described herein. -
Page 7: Ups Configuration
Cold Start function When the main power is disconnected from UPS, it is capable of starting with battery power for users' needs. Simply start the UPS as the instruction below. “On/Off/Test/Silence” button Turn on the UPS Switch on the Load ... -
Page 8: Maintenance
adjustments. UPS must connect to a computer or the internet to use the monitoring feature. Connect UPS to Computer with USB (Optional) Locate the USB port on UPS. Connect with factory-provided Ensure your computer can install and support power management software. ... - Page 9 Troubleshooting procedures give simple instructions in determining UPS malfunctions. Start the troubleshooting procedure if you witness any alarm indication. Alarm The UPS has an audible alarm. When different situations occurred, UPS will alert users with display and buzzer. Battery-mode (Slow alarm) During battery mode, the alarm will beep every 2 seconds for the first 15 seconds, then dropped to twice per minute.
-
Page 10: App-B Technical Specifications
Check the UPS batteries; Battery not connected make sure they are well connected The battery fault indicator occurred Battery out of order Replace battery or damaged APP-B Technical Specifications 600A 800A 1000A Model 600AP 800AP 1000AP Configuration Capacity (VA) 600 VA... - Page 11 Management & Communication Indicator LED Panel, LCD Panel (Option) Communication Port USB B type : AP Model Physical Dimensions (WxDxH) (mm) 100 x 278 x 143 Weight (kgs) Shipping Dimensions (mm) 147 x 329 x 227 Shipping Weight (kgs) Alarm Overload / Fault Continuous Beeping Battery Mode...
