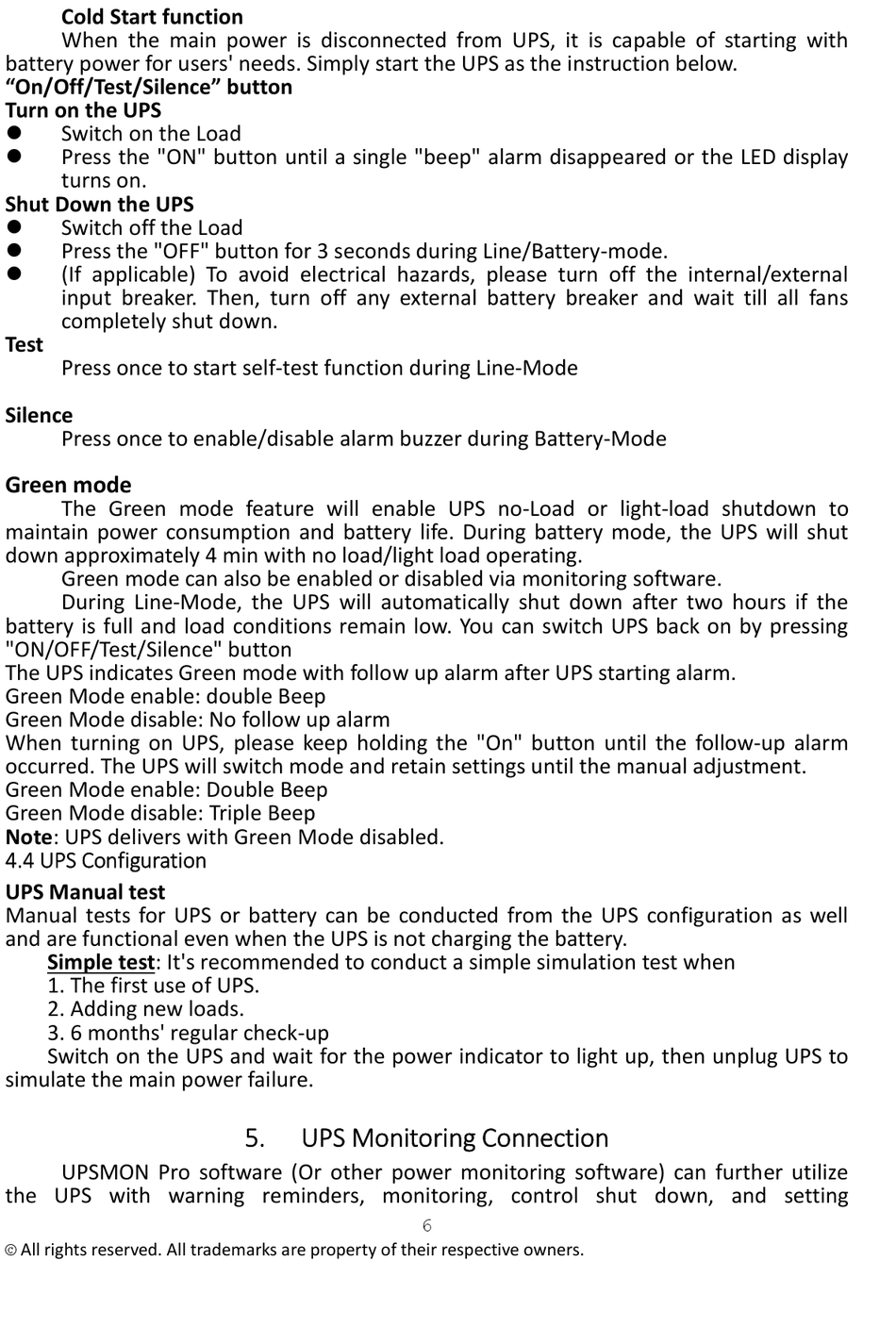

Cold Start function
When the main power is disconnected from UPS, it is capable of starting with
battery power for users' needs. Simply start the UPS as the instruction below.
"On/Off/Test/Silence" button
Turn on the UPS
Switch on the Load

Press the "ON" button until a single "beep" alarm disappeared or the LED display

turns on.
Shut Down the UPS
Switch off the Load

Press the "OFF" button for 3 seconds during Line/Battery-mode.

(If applicable) To avoid electrical hazards, please turn off the internal/external

input breaker. Then, turn off any external battery breaker and wait till all fans
completely shut down.
Test
Press once to start self-test function during Line-Mode
Silence
Press once to enable/disable alarm buzzer during Battery-Mode
Green mode
The Green mode feature will enable UPS no-Load or light-load shutdown to
maintain power consumption and battery life. During battery mode, the UPS will shut
down approximately 4 min with no load/light load operating.
Green mode can also be enabled or disabled via monitoring software.
During Line-Mode, the UPS will automatically shut down after two hours if the
battery is full and load conditions remain low. You can switch UPS back on by pressing
"ON/OFF/Test/Silence" button
The UPS indicates Green mode with follow up alarm after UPS starting alarm.
Green Mode enable: double Beep
Green Mode disable: No follow up alarm
When turning on UPS, please keep holding the "On" button until the follow-up alarm
occurred. The UPS will switch mode and retain settings until the manual adjustment.
Green Mode enable: Double Beep
Green Mode disable: Triple Beep
Note: UPS delivers with Green Mode disabled.

4.4 UPS Configuration

UPS Manual test
Manual tests for UPS or battery can be conducted from the UPS configuration as well
and are functional even when the UPS is not charging the battery.
Simple test: It's recommended to conduct a simple simulation test when
1. The first use of UPS.
2. Adding new loads.
3. 6 months' regular check-up
Switch on the UPS and wait for the power indicator to light up, then unplug UPS to
simulate the main power failure.
UPSMON Pro software (Or other power monitoring software) can further utilize
the UPS with warning reminders, monitoring, control shut down, and setting
© All rights reserved. All trademarks are property of their respective owners.
5.

UPS Monitoring Connection
