- Page 1 U P S Uninterruptible Power System Line-Interactive Network UPS 800VA/ 1000VA/ 1200VA/ 1500VA 2200VA/ 3000VA ■ ■ ■ ■ USER‘S MANUAL ■ ■ ■ ■...
-
Page 2: Table Of Contents
ABLE OF CONTENTS ……………………………………………………………………..1 NTRODUCTION 1. I ………………………...……………..………2 MPORTANT AFETY NSTRUCTIONS 2. P ………………...………………,.………………………..…………3 RESENTATION 3. I ………………………………………………………...……………5 NSTALLATION 4. O ………………………………………………………...………………7 PERATION 5. S ………………..…………………………8 OFTWARE AND OMPUTER NTERFACE A. T ……………………………………………………9 PPENDIX ROUBLESHOOTING B. S ……………………………………….………………10 PPENDIX PECIFICATIONS... -
Page 3: Introduction
NTRODUCTION Please read and save this manual! Thank you for selecting this uninterruptible power system (UPS). It provides you with a perfect protection for connected equipment. The manual is a guide to install and use the UPS. It includes important safety instructions for operation and correct installation of the UPS. -
Page 4: Important Safety Instructions
1. I MPORTANT AFETY NSTRUCTIONS ● WARNING (SAVE THESE INSTRUCTIONS): This manual contains important instructions should be followed during installation and maintenance of the UPS and batteries. ●WARNING: Intend for installation in a controlled environment. ●WARNING (Fuses): To reduce the risk of fire, replace only with the same type and rating of fuse. -
Page 5: Presentation

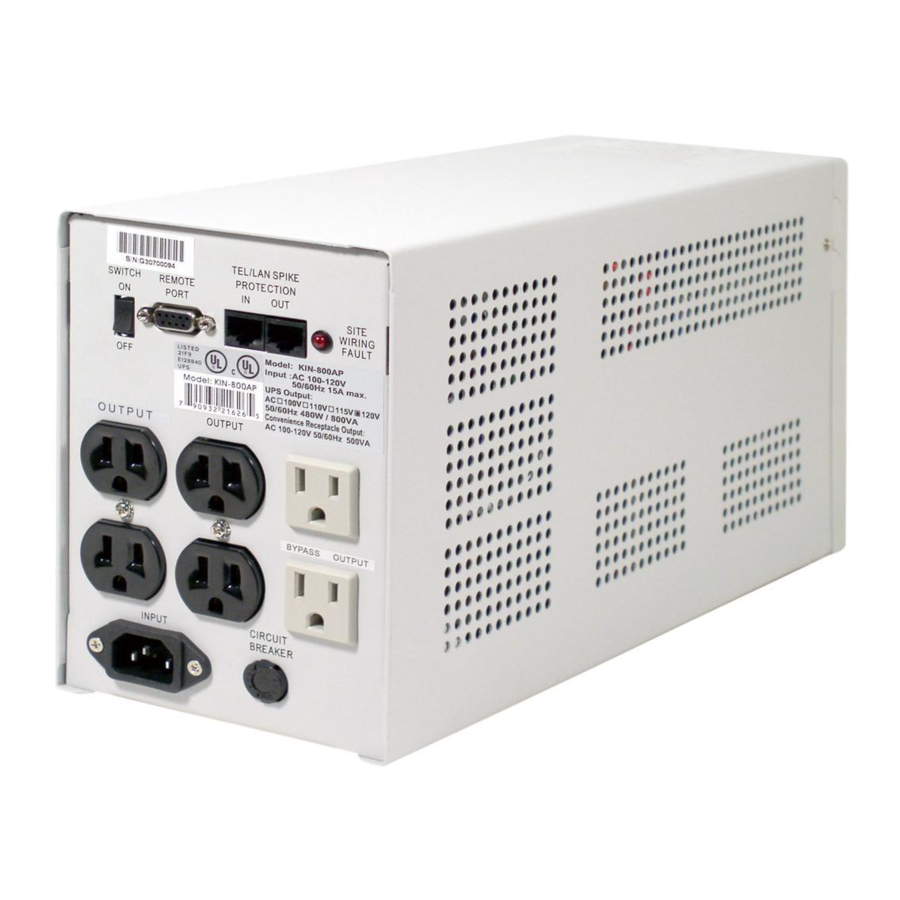

2. P RESENTATION FRONT & REAR PANELS 2.1"REPLACE BATTERY" indicator (RED LED) The LED illuminates when the UPS's battery is no longer useful and must be replaced. 2.2 "BUCK AVR (VOLTAGE REDUCTION)" indicator (YELLOW LED) The LED illuminates when the UPS is correcting a high utility voltage condition. - Page 6 2.10 MAIN SWITCH 2.11 REMOTE PORT (COMPUTER INTERFACE) Provide both RS-232 and relay signal to support NOVELL, UNIX, DOS, WINDOWS and other operating systems. 2.12 TEL./MODEM port Telecom transfer ports provide users to extend the applications. ● Caution: To reduce the risk of fire, use only No. 26AWG or larger telecommunication line cord.
-
Page 7: Installation
3. I NSTALLATION Inspect the UPS upon receipt. The packaging is recyclable; keep it for reuse or disposed of properly. 3.1 Recharge the battery UPS may be used by anyone immediately upon receipt. The battery is fully charged before shipped from the factory. However, user is recommended to recharge the battery at least four hours before using UPS. - Page 8 3.8 Overload protection If an overload situation is detected during self-test, UPS audible alarm will activate, emit a long beep and automatically shut down the system. Unplug at least one piece of equipment from the Battery Supplied Outlets. Switch off UPS, wait 5 seconds and check to make sure the circuit breaker is set then switch on, again.
-
Page 9: Operation
4. O PERATION 4.1 Simple test It is recommended that the user perform a simulation test when using UPS for the first time or when adding an additional piece of equipment. Conduct a simulation-test: first, switch on UPS and wait for the power indicator to light up, then simply unplug UPS to simulate the event of utility failure. -
Page 10: Software And Computer Interface
5. S OFTWARE AND OMPUTER NTERFACE 5.1 Power Monitoring Software The UPS-MON series software (or other power monitoring software) is applied standard RS-232 interface to perform monitoring functions, and then provides an orderly shutdown of a computer in the event of power failure. Moreover, UPS-MON displays all the diagnostic symptoms on monitor, such as Voltage, Frequency, Battery level and so on. -
Page 11: Appendix A Troubleshooting
PPENDIX A ROUBLESHOOTING UPS has a self-protect feature that prevents the UPS from being damaged as a result of overheating. If the temperature is higher than 55°C, wait for a while and let the UPS become cool. Problems Possible Cause Solution Full-time Surge Circuit breaker button... -
Page 12: Appendix B Specifications
PPENDIX B PECIFICATIONS MODEL 800VA 1000VA 1200VA 1500VA INPUT Capacity (On Battery) 800VA 1000VA 1200VA 1500VA /480W /600W /720W /900W (Spike 500VA 500VA 500VA 500VA for protection) 220-240V only. Voltage +/-25% at line input Frequency 50 or 60 Hz +/-10% (auto sensing) - Page 13 PPENDIX B PECIFICATIONS MODEL 2200VA/2200VA 3000VA/3000VA INPUT Capacity (On Battery) 2200VA/1320W 3000VA/1800W Voltage +/-25% at line input Frequency 50 or 60 Hz +/-10% (auto sensing) OUTPUT Voltage (on battery) Simulated sine wave at 100V/115V/230V +/- 5% Frequency 50 or 60 Hz +/- 0.5% (on battery) Voltage Regulation AVR automatically increase output voltage 15%...
- Page 14 NETWORKING PRODUCTS UPSMON FOR Window s...
- Page 15 UPSMON for Novel...
