Summary of Contents for Powercom 425A/AP

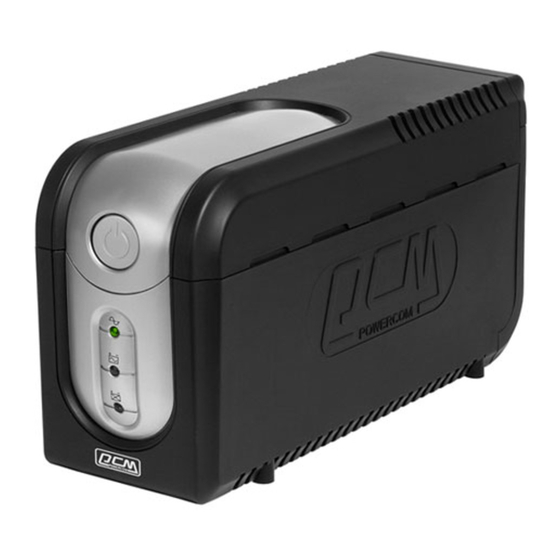

- Page 1 U P S Line-Interactive 425VA-1000VA IMD-1000AP, IMD-1000A, IMP-1000AP, IMP-1000A IMD-825AP, IMD-825A, IMP-825AP, IMP-825A IMD-625AP, IMD-625A, IMP-625AP, IMP-625A IMD-525AP, IMD-525A, IMP-525AP, IMP-525A IMD-425AP, IMD-425A, IMP-425AP, IMP-425A ■USER MANUAL■...
-
Page 2: Emc Statement
EMC Statement These products are tested and thereby comply with the conditions of CE regulation, which established to offer sufficient protection against dangerous interference for installation. Installation and use of the equipment should comply with the instructions provided to avoid such interference due to the amount of radiofrequency energy that generates by the equipment;... -
Page 3: Table Of Contents
Table of content EMC Statement ....................... 1 French Safety Instruction…………………………………………………………………………………………….1 IMPORTANT SAFETY INSTRUCTION ................ 2 Introduction ......................3 Installation ......................3 3.1 Rear panel view ..................... 3 3.2 Connection to Main and Load ................3 Operation ....................... 4 4.1 General Description ....................4 4.2 System Configuration .................... -
Page 4: Introduction
CAUTION: DO NOT dispose UPS and its batteries to fire, the battery may explode. CAUTION: DO NOT attempt to open or mutilate the battery. User’s operations: Users only permits to: • Turning the UPS unit on and off. •... -
Page 5: Operation
Do not connect devices that draw either massive power shortly or half-wave rectified current - such as hairdryer, vacuum cleaner, laser printer, and plotter. Note: Although you may use the UPS immediately, maximum back up time will not be available yet. It is recommended to charge the batteries for a minimum of 8 hours before use. -
Page 6: Ups Configuration
(If applicable) To avoid electrical hazards, please turn off the internal/external input breaker. Then, turn off any external battery breaker and wait till all fans completely shut down. Test Press once to start self-test function during Line-Mode Silence Press once to enable/disable alarm buzzer during Battery-Mode Green mode The Green mode feature will enable UPS no-Load or light-load shutdown to maintain power consumption and battery life. -
Page 7: Replacement
6.4.2 Replacement Please contact for technical assistance. Ensure UPS is turned off and disconnected from the main power. Remove the battery cover from the bottom of UPS. Disconnect battery wire and remove the battery pack. Replace with the same type and number of battery. Reconnect the battery and reinstall the cover. -
Page 8: App-B Technical Specifications
APP-B Technical Specifications Model 425A/AP 525A/AP 625A/AP 825A/AP 1000A/AP Configuration Capacity (VA) 425 VA 525 VA 625 VA 825 VA 1000 VA Capacity (Watts) 255 W 315 W 375 W 495 W 550 W Form Tower Type Input Voltage / 110 / 120 VAC or 220 / 230 / 240 VAC...
