External Battery Pack - Powercom 1000 User Manual

1. (For Tower model below 2KVA): Locate the front panel's 2 tenons as the arrow
indicated; Press the tenon and pull out lightly. Then push the front panel
downward and pull out to remove the panel.
(For Tower model 2000VA)
Hold the top two corners of the front panel as arrow indicated; Pull out lightly
then push down to unlock the bottom tenon.

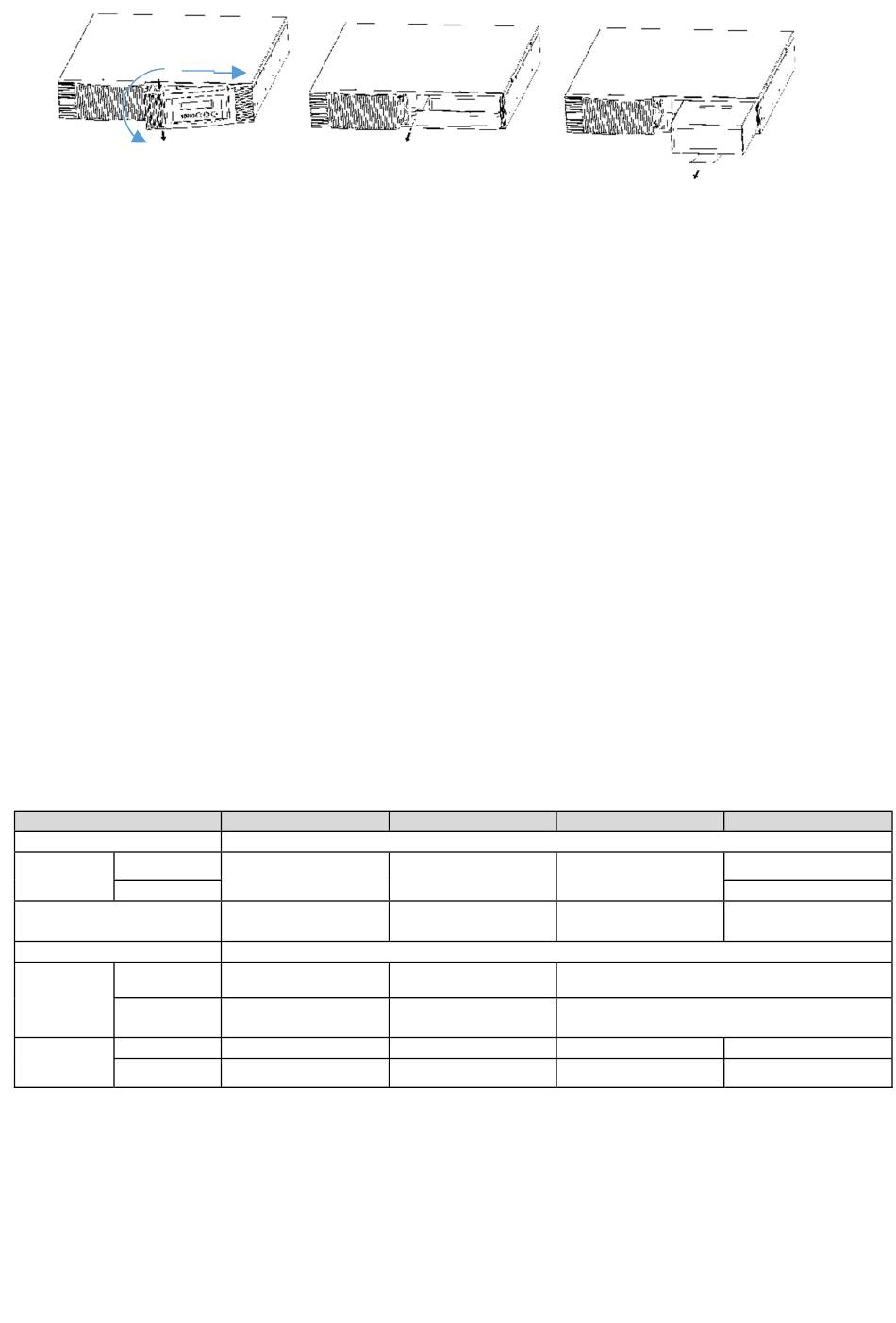

(For Rack model),
From the middle of the front panel, hold the display-side inner corner and pull
out lightly. Then, push sideways to unlock the other tenon.
2. Remove the battery cover and cartridge.
3. Replace with the same type and quantity of battery
4. Reinstall new battery cartridge back in the UPS
(For Tower Model) Ensure the battery terminal is connected to the matching
terminal (Black to black, and Red to Red)
5. Reinstall battery cover and front panel.
Note: Please ensure the battery correctly connects with the attached port.
Note: 3KVA Tower model replacement is not available; Contact for technical
assistance
Note: Do not forcefully pull out front panel, the tenon may be damaged
Note: UPS's voltage will drop to 48Vdc when the battery removed in all models.
6.4.3

External battery pack

The following chart is the recommended specification of the external battery
pack/cabinet. For other options, please ensure that the option meets safety
instruction and local legislation.
Note: when power supplies by external batteries, output loads will be limited
to 90% for overall power generation.
Model
Battery type
Number of Tower
battery
RM2U
Backup time/full load
(battery pack only)
Recharge time
Tower
Dimensions
W x D x H
RM2U
Tower
Net Weight
RM2U
Maintenance Bypass Procedure
Maintenance
1. Press the "ON/OFF" button to turn on UPS. It will operate in "Line-Mode."
2. Press the "Function" button for 3 seconds and toggle to "Manual Bypass."
3. Press "Enter" to select. You will see the default setting "OFF" displayed in LCD.
4. Use the "Function" button again to set Bypass on "ON" and press "Enter" again. UPS
will go on "Manual Bypass Mode" with display indication.
© All rights reserved. All trademarks are property of their respective owners.
1000VA
6
Approx. 13~15min Approx. 13~15min
152 x 420 x 237
428 x 425 x 84
18.8kg
20.7kg
1500VA
Lead-acid 12V/7AH
8
Approx. 13~15min
<8 h to 90%
152 x 500 x 238
428 x 500 x 84
22.9kg
26.4kg
17
2000VA 3000VA
12
Approx. 10~13min
225 x 420 x 358
428 x 631 x 84
34.6kg
37.3kg
16
12
43.2kg
37.3kg
