- Page 1 U P S Uninterruptible Power System Line Interactive Network UPS 800VA/1000VA 1200VA/1500VA/2200VA USER‘S MANUAL Printed in USA...
-
Page 2: Important Safety Instructions
Important safety instructions Thank you for selecting this uninterruptible power system (UPS). It provides you with better protection for connected equipment. Please read this manual! This manual provides safety, installation and operating instructions that will help you derive the fullest performance and service life that the UPS has to offer. -
Page 3: Table Of Contents
Table of contents I n t r o d u c t i o n … … … … … … … … … … … … … 1 S a f e t y ………………………………………. . 2 P r e s e n t a t i o n … … … … … …… … … … … …3 F r o n t P a n e l …... -
Page 4: Introduction
1. INTRODUCTION The product is line interactive UPS with the newest technology and powerful function. The LINE INTERACTIVE UPS is with AVR function allows input voltage range from 75% to 125%, including on line voltage boost-up & buck down. An ideal protection equipment for critical connected loads. It is based on microprocessor controls, with utility power connected, the charging is ongoing, no need to switch ON the UPS and at back-up mode, UPS can be automatically turned OFF if none of the connected loads is operating to save... -
Page 5: Safety
2. Safety CAUTION ! • To reduce the risk of electric shock, disconnect the UPS from the mains supply before installing a computer interface signal cable. Reconnect the power cord only after signaling interconnections have been made. • The internal energy source(the battery) cannot be de-energized by the user. The output may be energized when the unit is not connected to a mains supply. -
Page 6: Presentation
3.5 "LINE NORMAL" indicator (GREEN LED) 3.6 "ON/OFF/TEST/SILENCE" button Press the button more than 2 seconds to turn the UPS on or off, press the button less than 1 second to activate the UPS's self-testing or silence the back up alarm. 800VA/1000VA/1200VA/1500VA/2200VA... -

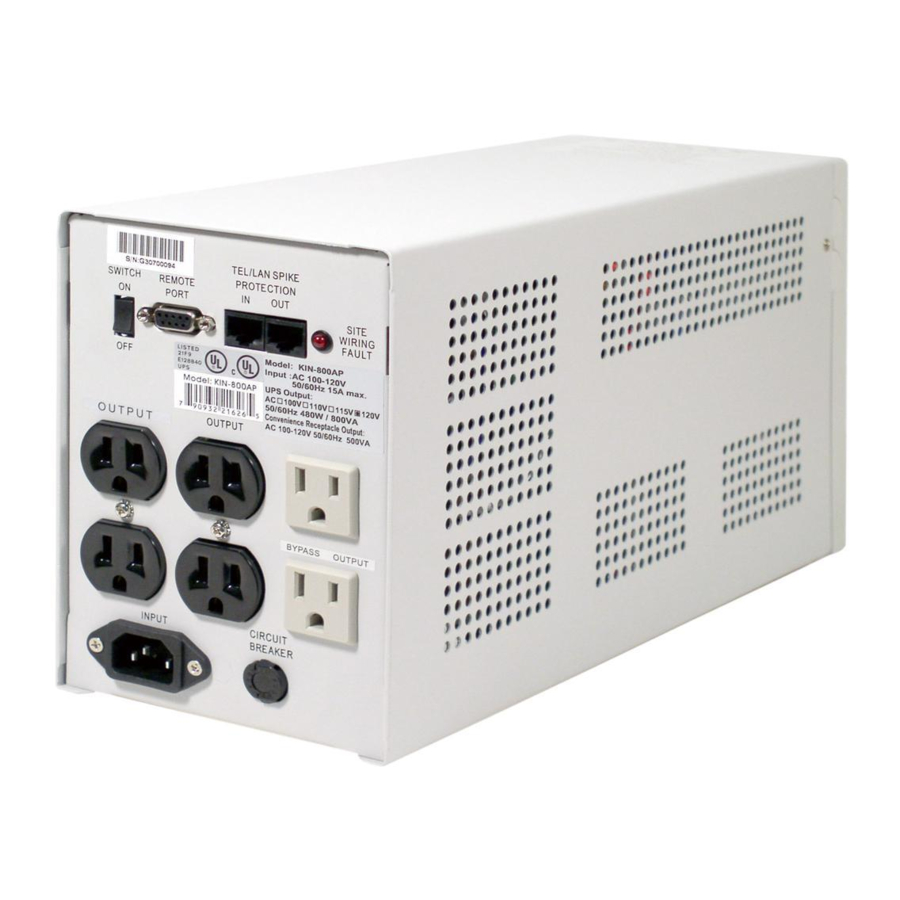

Page 7: Rear Panel
3.18 INPUT CIRCUIT BREAKER It trips when the connected loads exceed the protected receptacle's capacity, The center plungers of the circuit breakers extend when tripped. 3.11 3.12 3.10 3.16 3.17 800VA/1000VA/1200VA 1500VA 3.10 3.15 3.12 3.11 3.13 3.14 3.15 3.18 2200VA 3.13... -
Page 8: Installation
4. Installation 4.0 Inspection Inspect the UPS upon receipt. The packaging is recyclable; save it for reuse or dispose of it properly. 4.1 Placement Install the UPS in a protected area with adequate air flow and free of excessive dust. Do not operate the UPS where the temperature and humidity is outside the specified limits. -
Page 9: Charge The Battery
Note: This connection is optional. It is not necessary to use this UPS. Caution: The telephone line current limiting feature could be rendered inoperable if improperly installed. Make sure that the telephone line from the wall is plugged into the connector marked “IN”, and the device to be protected (telephone, modem, etc.) is plugged into the connector marked “OUT”. -
Page 10: Operation
5. Operation 5.1 Switch on With the UPS plugged in, turn on MAIN SWITCH (on rear panel) and press ON/OFF/TEST/SILENCE button (on front panel) less than 2 seconds to switch the UPS on. The UPS will perform self-testing each time when it is switched on. Note: When switched off the UPS maintains the battery charge and will respond to commands received through the computer interface port. -
Page 11: Alarm
6. Alarm 6.1 "BACK UP" (slow alarm) When in BACK UP mode, the YELLOW LED illuminates and the UPS sounds an audible alarm. The alarm stops when the UPS returns to LINE NORMAL operation. Press the ON/OFF/TEST/SILENCE button during on-battery alarms to stop the beeping. -
Page 12: Software Options
7. Software options 7.1 Power Monitoring Software The UPSMON series software (or other power monitoring software) is applied standard RS-232 interface to perform monitoring functions, and then provides an orderly shutdown of a computer in the event of power failure. Moreover, UPSMON displays all the diagnostic symptoms on monitor, such as Voltage, Frequency, Battery level and so on.. -
Page 13: C O M P U T E R I N T E R F A C E P O R
8. Computer Interface Port The computer interface port has the following characteristics: D-SUB 9 Pin Female Connector for white cable Contacts Normally Open Signal High Min. 1 Second D-SUB 9 Pin Female Connector for purpure cable Contacts Normally Open Signal High Min. 1 Second Low Battery Mains Failure Common... -
Page 14: B A T T E R Y R E P L A C E M E N
9. Battery Replacement Your battery should run any where from 3-5 years before eve needing to be replaced. Please follow the instructions below for easy battery replacement. Note: When replace battery, disconnect the utility power then open the case and take notice of the battery's polarity while install the new battery to avoid short. -
Page 15: T R O U B L E S H O O T I N
10. Troubleshooting PROBLEM POSSIBLE CAUSE On/off/test/silence LED not light button not pushed or push too short Battery voltage than 10V PCB failure Load less than 20W at battery mode UPS always at Power cord lose battery mode AC FUSE burn out Line voltage too high, too low or black out PCB failure... -
Page 16: S P E C I F I C A T I O N
Ambient 3,500 meters max. elevation, 0-95% humidity non-condensing operation Audible noise Storage condition © 1999 Powercom Co., Ltd. All right Reserved. All trademarks are property of their respective owners. Specifications subject to change without notice. 1000AP 1200AP 1500AP 1000VA 1200VA...
