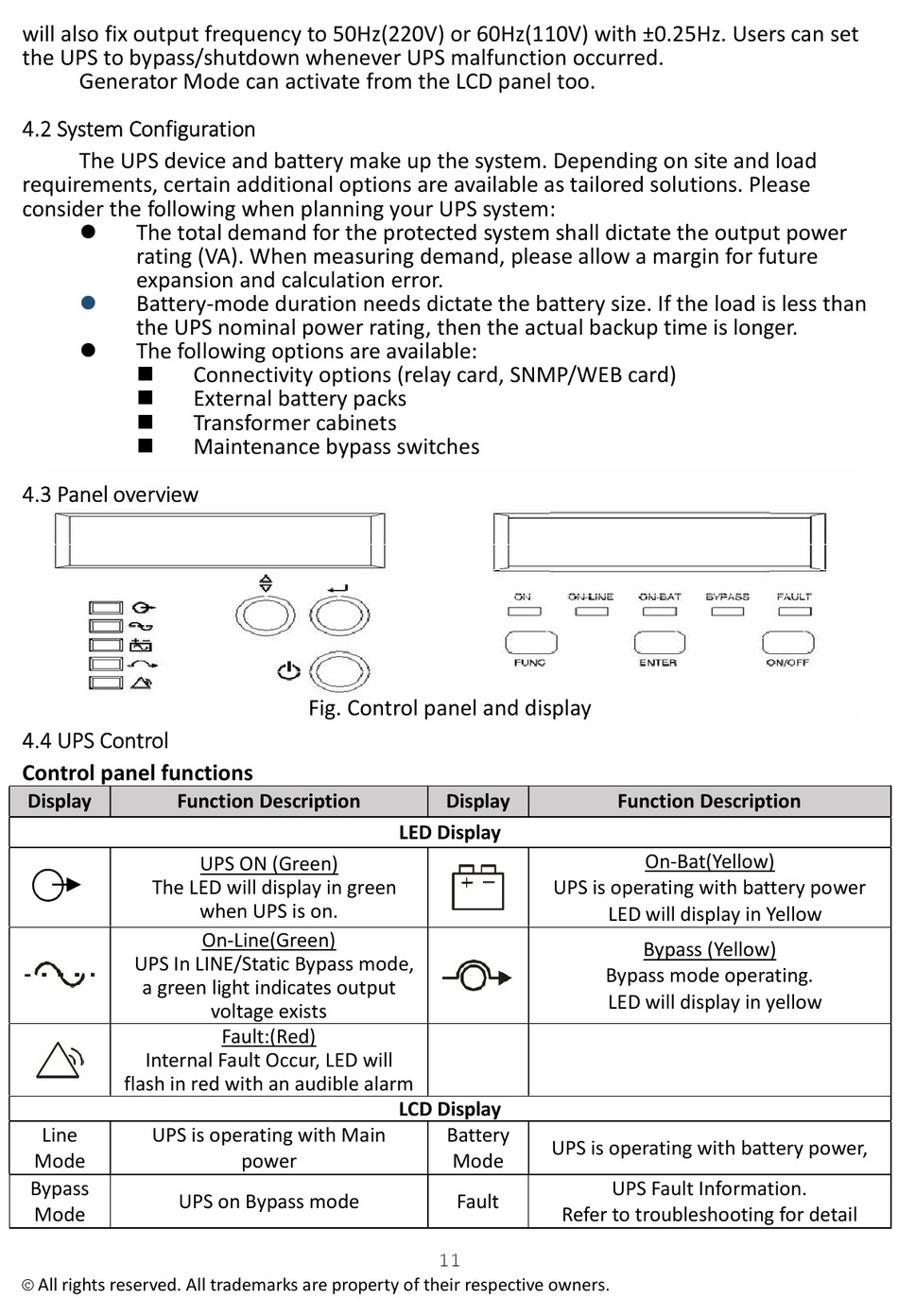

will also fix output frequency to 50Hz(220V) or 60Hz(110V) with ±0.25Hz. Users can set
the UPS to bypass/shutdown whenever UPS malfunction occurred.
Generator Mode can activate from the LCD panel too.

4.2 System Configuration

The UPS device and battery make up the system. Depending on site and load
requirements, certain additional options are available as tailored solutions. Please
consider the following when planning your UPS system:
The total demand for the protected system shall dictate the output power

rating (VA). When measuring demand, please allow a margin for future
expansion and calculation error.
Battery-mode duration needs dictate the battery size. If the load is less than

the UPS nominal power rating, then the actual backup time is longer.
The following options are available:






4.3 Panel overview

4.4 UPS Control

Control panel functions
Display Function Description
The LED will display in green
UPS In LINE/Static Bypass mode,
a green light indicates output
Internal Fault Occur, LED will
flash in red with an audible alarm
Line UPS is operating with Main
Mode
Bypass
UPS on Bypass mode
Mode
© All rights reserved. All trademarks are property of their respective owners.
Connectivity options (relay card, SNMP/WEB card)
External battery packs
Transformer cabinets
Maintenance bypass switches
Fig. Control panel and display
UPS ON (Green)
when UPS is on.
On-Line(Green)
voltage exists
Fault:(Red)
power
Display
LED Display
UPS is operating with battery power
LCD Display
Battery
UPS is operating with battery power,
Mode
Fault
Refer to troubleshooting for detail
11
Function Description
On-Bat(Yellow)
LED will display in Yellow
Bypass (Yellow)
Bypass mode operating.
LED will display in yellow
UPS Fault Information.
