Summary of Contents for Powercom Line-Interactive 1025AP

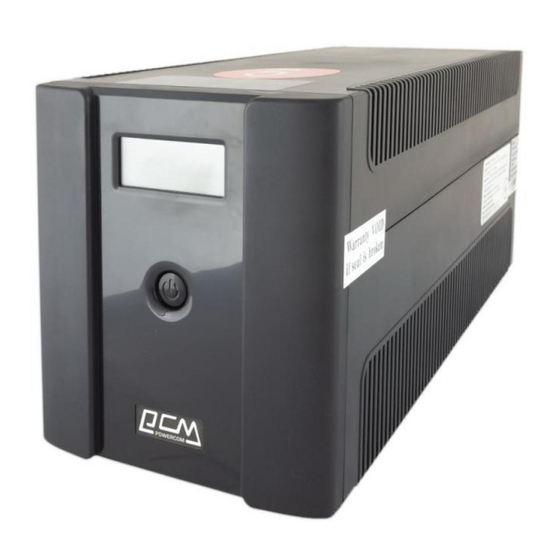

- Page 1 U P S Line-Interactive 1025VA-2000VA ■USER MANUAL■...
-
Page 2: Emc Statement
EMC Statement These products are tested and thereby comply with the conditions of CE regulation, which established to offer sufficient protection against dangerous interference for installation. Installation and use of the equipment should comply with the instructions provided to avoid such interference due to the amount of radiofrequency energy that generates by the equipment;... -
Page 3: Table Of Contents
Table of content EMC Statement ....................1 IMPORTANT SAFETY INSTRUCTION ............3 Introduction ....................4 Installation ....................4 3.1 Rear panel view ..................4 3.2 Connection to Main and Load ..............4 Operation ....................5 4.1 General Description .................. 5 4.2 System Configuration ................ -
Page 4: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTION WARNING: SAVE THESE INSTRUCTIONS!! WARNING: Manual contains important instructions of UPS and batteries during installation and maintenance. Follow this instruction at all time WARNING: It is recommended to install UPS in an ANSI/NFPA75 room in which temperature ... -
Page 5: Introduction
Introduction The information provided in this manual covers Line-Interactive 1025VA-2000VA uninterruptible power system (UPS). This manual contains basic functions, operating procedures, and emergencies, also including information on how to ship, store, handle, and install the equipment. Only detailed requirements of the UPS units described herein. The installation must carry out according to this manual. -
Page 6: Operation
Operation Necessary information for the operation of the unit is covered in this chapter. Normally UPS runs automatically, but on a few occasions such as just after installation, all procedures are described herein. 4.1 General Description As Line-Interactive UPS, it is capable of providing clean and stable power to your critical system. - Page 7 AVR MODE Output Correcting over-voltage or Output Display of current output voltage under-voltage condition. Output power remain normal Battery level Load level Battery Display of battery power remaining Load Display of current load on UPS (25/50/75/100)% (25/50/75/100)% Button Display ON/OFF/Test/Silence The master button for UPS control, refer to Button Operation Button operation Cold Start function...
-
Page 8: Ups Configuration
4.4 UPS Configuration UPS Manual test Manual tests for UPS or battery can be conducted from the UPS configuration as well and are functional even when the UPS is not charging the battery. Simple test: It’s recommended to conduct a simple simulation test when 1. -
Page 9: Battery
Do not open the UPS cabinet. Components may contain hazardous or fatal voltage. Output receptacles may carry live voltage without connecting to the main power. Pay special attention to UPS air inlet; do not let it coved by dust. ... -
Page 10: App-B Technical Specifications
no warning sound Time of pressing the button is Press and hold the "ON" button too short for a longer duration Turn off UPS and take off all load. Check Output short circuit or for any potential internal short circuit overload on UPS Then attempt to turn on UPS again Hardware failure... - Page 11 Waveform (Battery-Mode) Simulated Sine Wave Voltage 100 / 110 / 120 VAC or 220 / 230 / 240 VAC Frequency (Battery-Mode) 50 Hz / 60 Hz ± 1 Hz Transfer Time 2 - 4 ms (Typical) Protection Full Protection Overload, Surge, Short Circuit Tele Communication RJ11 / RJ45 Battery...
