the receiver in a well sealed plastic bag can avoid humidity and dust, which would possibly make the receiver
out of control.

1.1.2 Transmitter Battery Charging

The built-in battery of T8S is 1S lithium. When the voltage becomes low, the green indicator will flash with a DD
warning tone. Make sure to charge the battery in time to avoid the possible damage by over discharge.
T8S charging is as simple as only an android USB data cable needed, connecting to the computer or portable
charger.
1.2 Basic Setup

1.2.1 Compatible Receivers

The standard receiver packed with T8S is R8EF, 2.4G 8-channel receiver with SBUS,PPM and PWM signal
output supported. R8FM is another compatible receiver with extreme light weight of 2.5g and double signal
output of SBUS and PPM. The control distance of both receiver is up to 2000 meters.

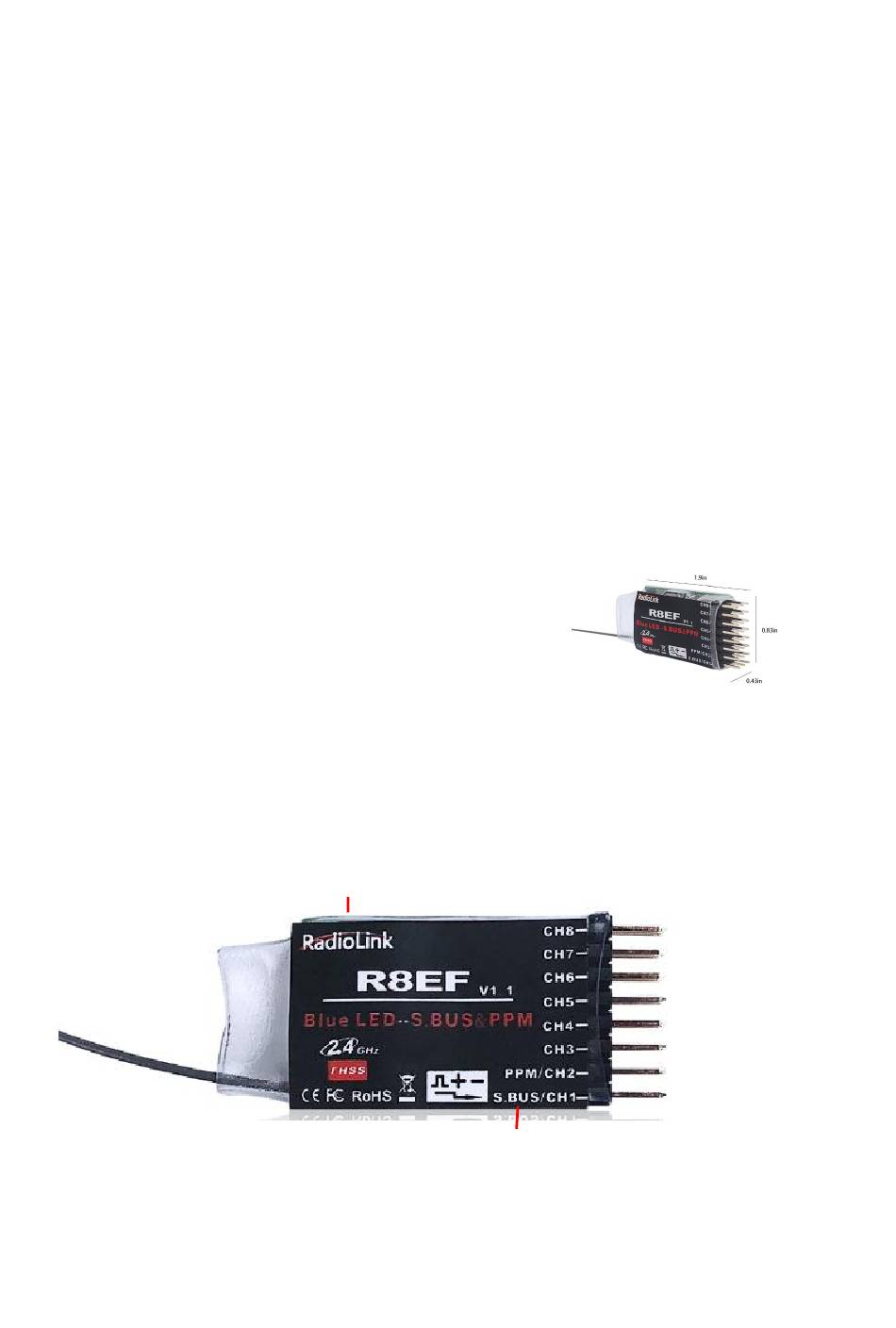

R8EF Specifications
1) Channel Qty: 8
2) Operating Voltage：4.8-10V
3) Operating Current：30mA (Input Voltage 5V)
4) Dimension : 48.5*21*11mm
5) Weight：7g
6) 2048 section precision, 0.5us per section, servo anti-shake
rudder.
7) Distance: 2000m in the air (depending on the actual flight circumstances)
Signal Working Mode
(1) PWM Working Mode: Receiver indicator is RED with all 8 channels output PWM signal.
Antenna
LED
Binding Button (ID SET)
2
Radiolink Electronic Ltd
www.radiolink.com
CH8 (AUX)
CH7 (AUX)
CH6 (AUX)
CH5 (AUX)
CH4 (RUDD)
CH3 (THRO)
CH2 (ELEV)
CH1 (AILE)
