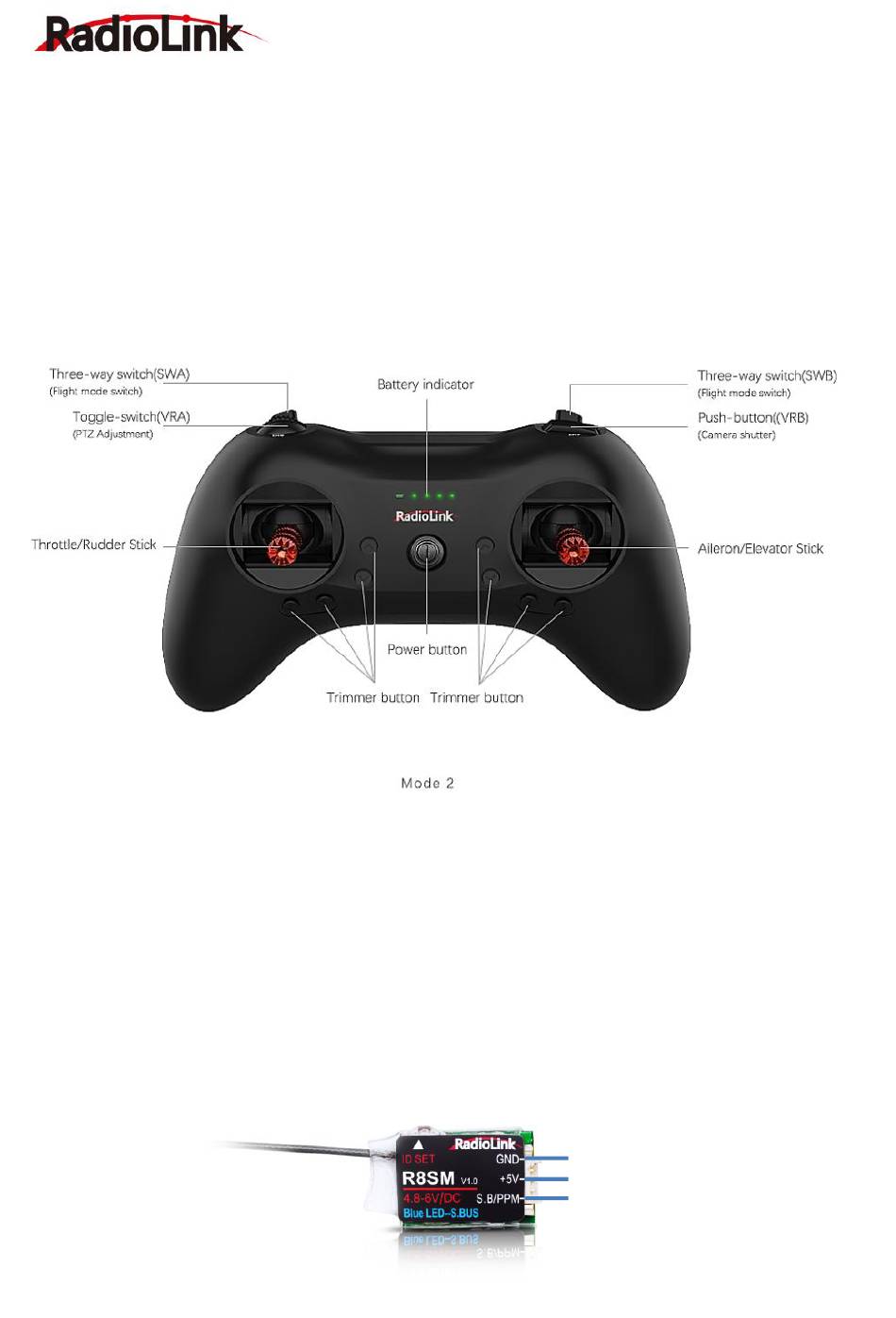

As image of T8S (Mode 2) shown below, there are two 3-way switches, one toggle-switch, one
push-button, eight trimmer buttons and two joysticks. The Mode can be personalized to 1(throttle on right hand)
or 2 (throttle on left hand) or both sticks return to center points with the small accessory packed in the bag.
Factory setting by default: CH5/3-way switch and CH6/Push-button on the right, CH7/3-way switch and
CH8/toggle-switch on the left.

1.1 Transmitter Battery Charging

The built-in battery of T8S is 1S lithium. When the voltage becomes low, the green indicator will flash with a DD
warning tone. Make sure to charge the battery in time to avoid the possible damage by over discharge.
T8S charging is as simple as only an android USB data cable needed, connecting to the computer or portable
charger. It takes approximately 40 minutes to fully charge T8S with 4 green LEDs on.

1.2 T8S Basic Setup

1.2.1 Receivers

The standard receiver packed with T8S is R8SM, 8-channel receiver with SBUS and PPM signal output
supported.

Chapter 1 Introduction

1
Radiolink Electronic Ltd
www.radiolink.com
GND
VCC
Signal
