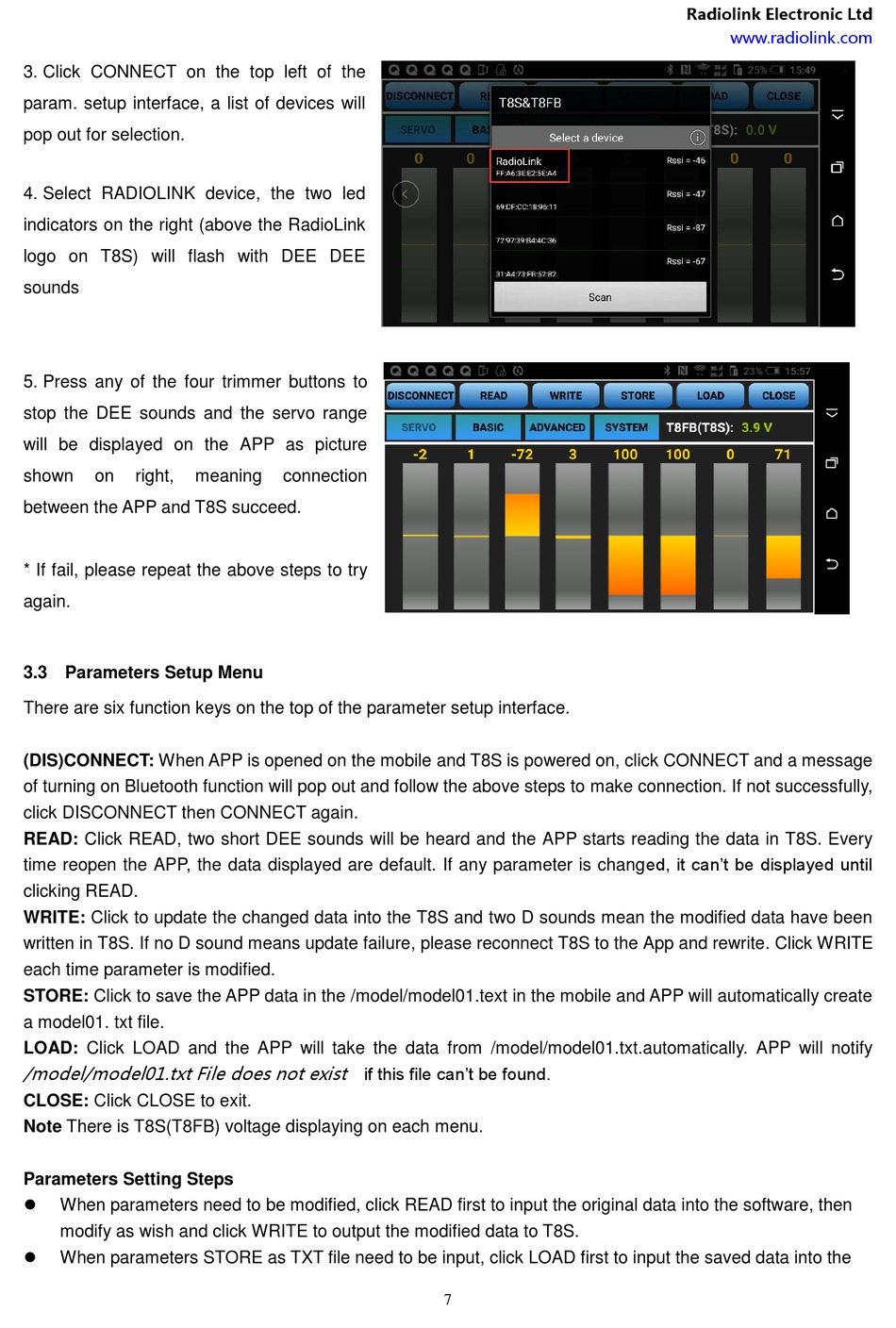

3. Click CONNECT on the top left of the
param. setup interface, a list of devices will
pop out for selection.
4. Select RADIOLINK device, the two led
indicators on the right (above the RadioLink
logo on T8S) will flash with DEE DEE
sounds
5. Press any of the four trimmer buttons to
stop the DEE sounds and the servo range
will be displayed on the APP as picture
shown on right,
between the APP and T8S succeed.
* If fail, please repeat the above steps to try
again.

3.3 Parameters Setup Menu

There are six function keys on the top of the parameter setup interface.
(DIS)CONNECT: When APP is opened on the mobile and T8S is powered on, click CONNECT and a message
of turning on Bluetooth function will pop out and follow the above steps to make connection. If not successfully,
click DISCONNECT then CONNECT again.
READ: Click READ, two short DEE sounds will be heard and the APP starts reading the data in T8S. Every
time reopen the APP, the data displayed are default. If any parameter is changed, it can't be displayed until
clicking READ.
WRITE: Click to update the changed data into the T8S and two D sounds mean the modified data have been
written in T8S. If no D sound means update failure, please reconnect T8S to the App and rewrite. Click WRITE
each time parameter is modified.
STORE: Click to save the APP data in the /model/model01.text in the mobile and APP will automatically create
a model01. txt file.
LOAD: Click LOAD and the APP will take the data from /model/model01.txt.automatically. APP will notify
/model/model01.txt File does not exist
CLOSE: Click CLOSE to exit.
Note There is T8S(T8FB) voltage displaying on each menu.
Parameters Setting Steps

When parameters need to be modified, click READ first to input the original data into the software, then
modify as wish and click WRITE to output the modified data to T8S.

When parameters STORE as TXT file need to be input, click LOAD first to input the saved data into the
meaning connection
if this file can't be found.
