Note:
G82 fixed cycle has a pause action in the hole bottom, and others are same to G81. The pause of hole
bottom can improve the precision of hole depth.

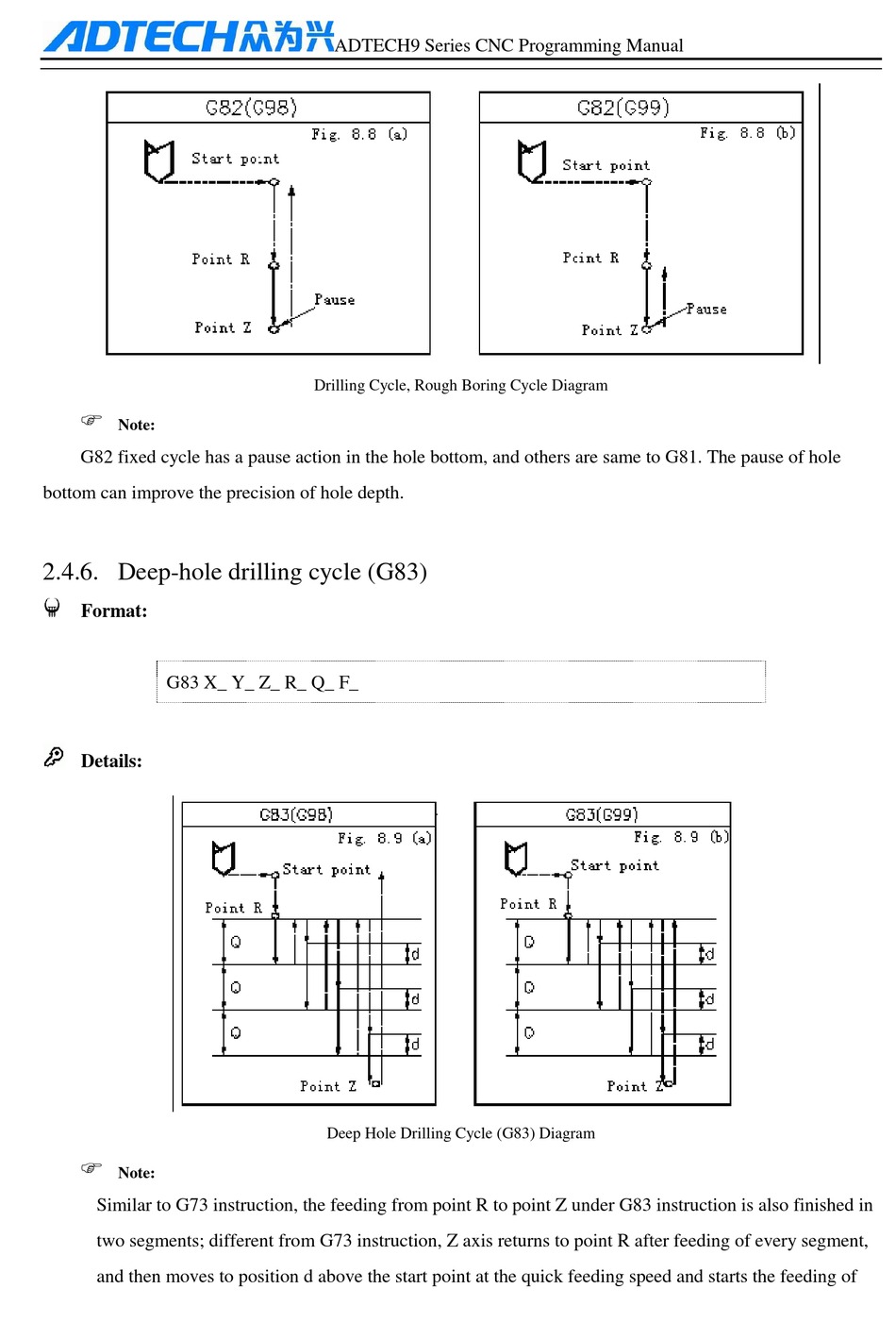

2.4.6. Deep-hole drilling cycle (G83)

Format:
G83 X_ Y_ Z_ R_ Q_ F_
Details:

Note:
Similar to G73 instruction, the feeding from point R to point Z under G83 instruction is also finished in
two segments; different from G73 instruction, Z axis returns to point R after feeding of every segment,
and then moves to position d above the start point at the quick feeding speed and starts the feeding of
ADTECH9 Series CNC Programming Manual
Drilling Cycle, Rough Boring Cycle Diagram
Deep Hole Drilling Cycle (G83) Diagram
