6.4 DXF file manual path processing
To make the reasonable planning of the movement path, improve the operation efficiency and increase the
output, a path processing layer: "PATHLAYER" will be added. The processing method is as follows: first
select the PATHLAYER layer, then select the spline curve button
in the drawing toolbar, connect one by
one from the starting point based on the planned path, and the last point is set to the safe position of the target

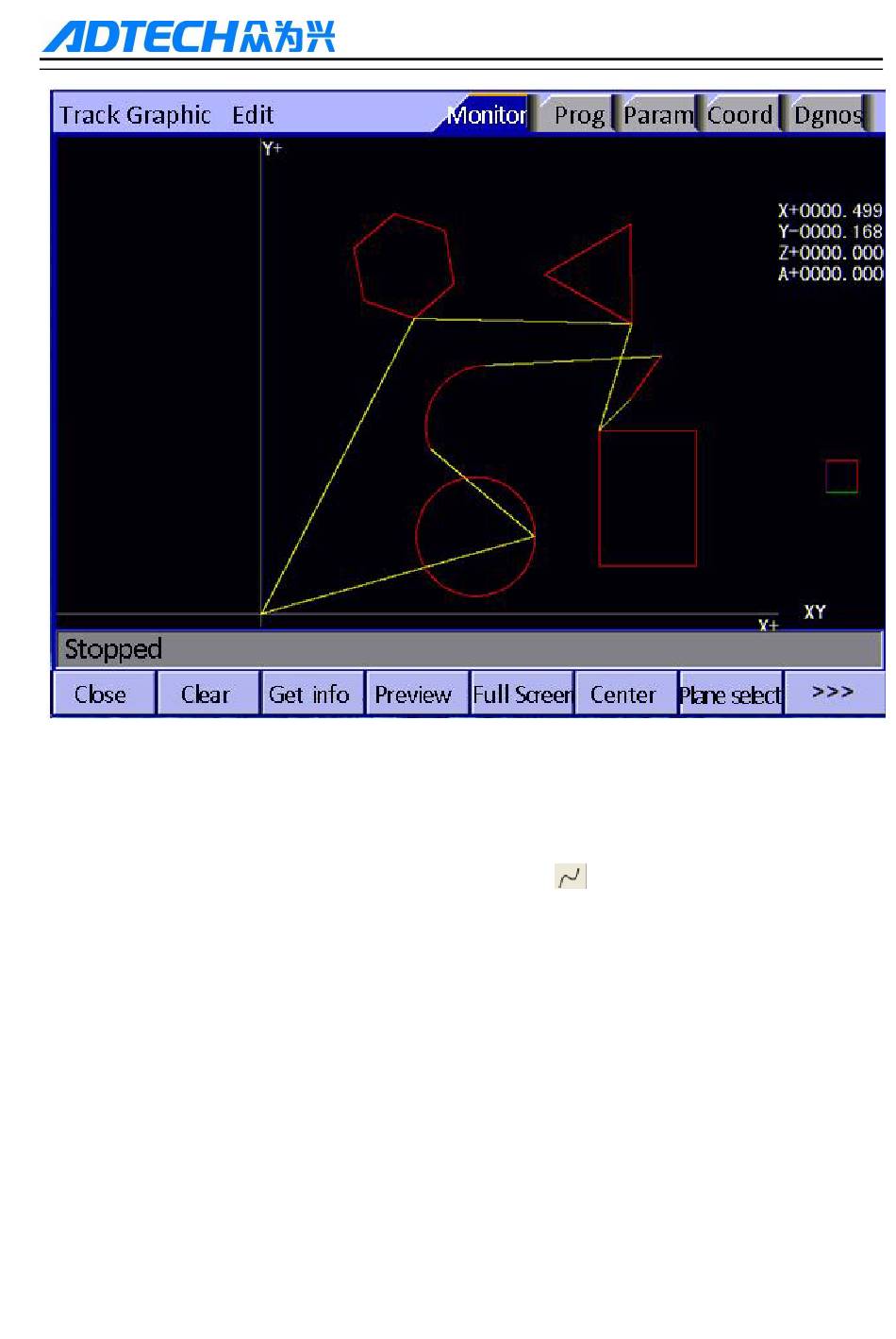

retraction. Note: Polygon type, straight line, and the end point of the arc should be on the spline curve. As
shown below:
