Adtech ADTECH9 Series Programming Manual page 49

ADTECH9 Series CNC Programming Manual

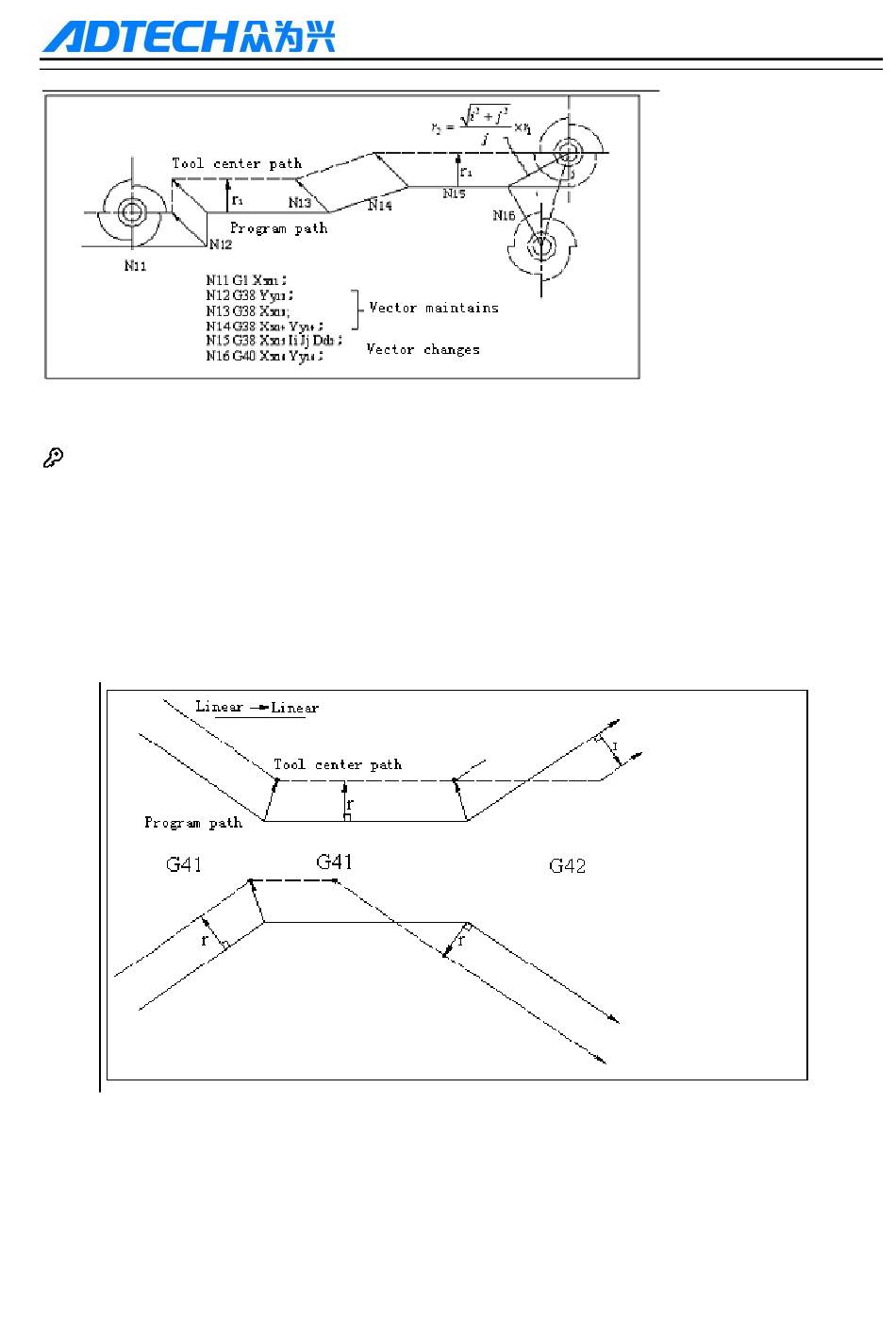

Changing compensation direction in tool radius compensation
The compensation direction follows the tool radius compensation instruction (G41, G42) and compensation
symbol.
In compensation mode, the compensation instruction and direction can be changed without compensating
cancellation instruction. However, the compensation start segment and next segment can't be changed.
When compensation direction is changed, and there is no intersection
