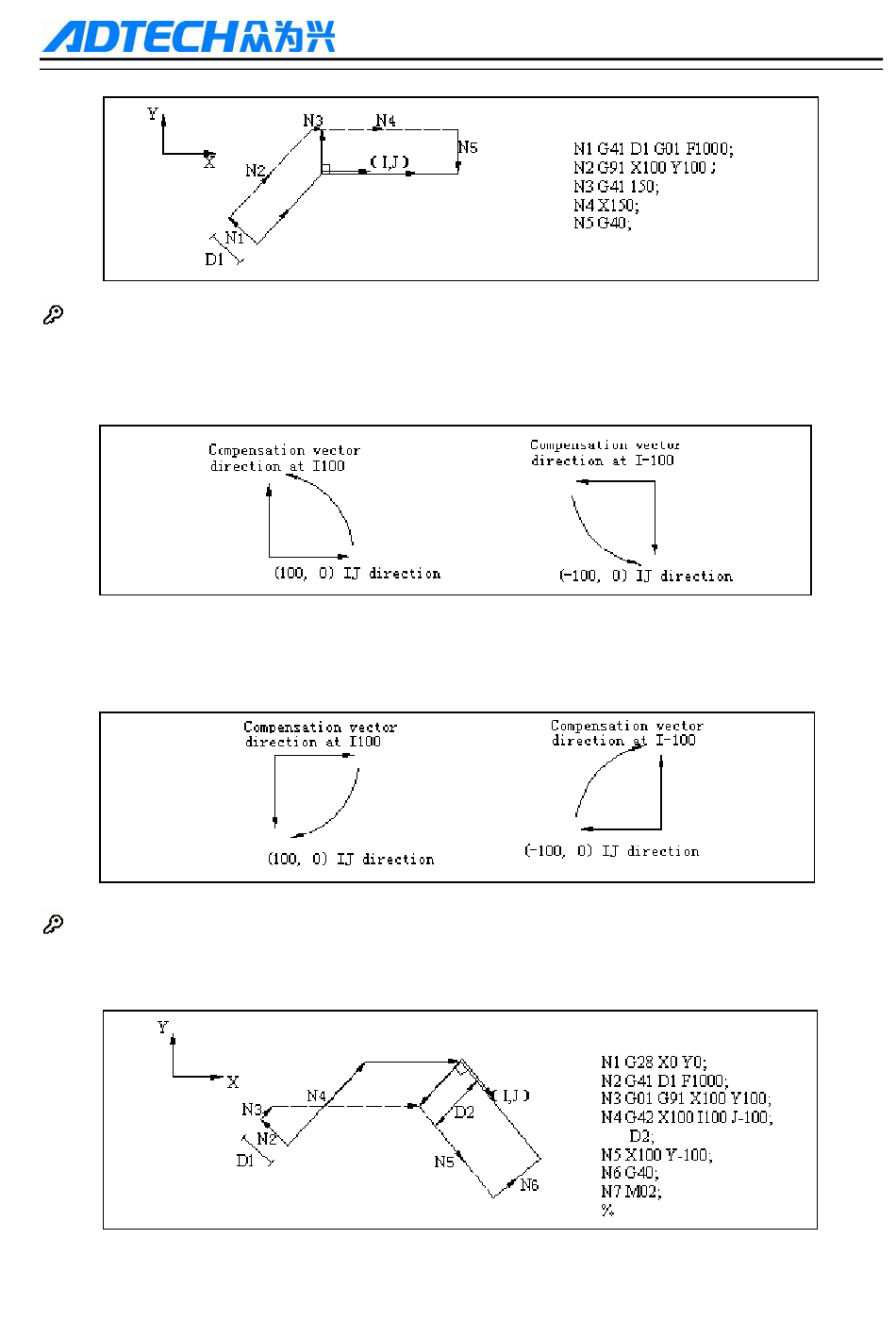

Direction of compensation vector
(1) In G41 mode
In the direction specified by I, J, rotate 90° to the left in the positive direction of Z axis.
(2) In G42 mode
In the direction specified by I, J, rotate 90° to the right in the positive direction of Z axis.
Switching compensation mode
In compensation mode, G41/G42 mode can be switched at any moment.
