Audio Interfacing

A i
Udio nteRfAcing
All analogue audio inputs and outputs are electronically balanced. The screen pins are all directly connected to the chassis
at the point of entry to comply with AES/EBU grounding and EMC recommendations.
B c
ALAnced iRcUitS
It is strongly recommended that balanced connections are used wherever possible using high quality screened cable. The

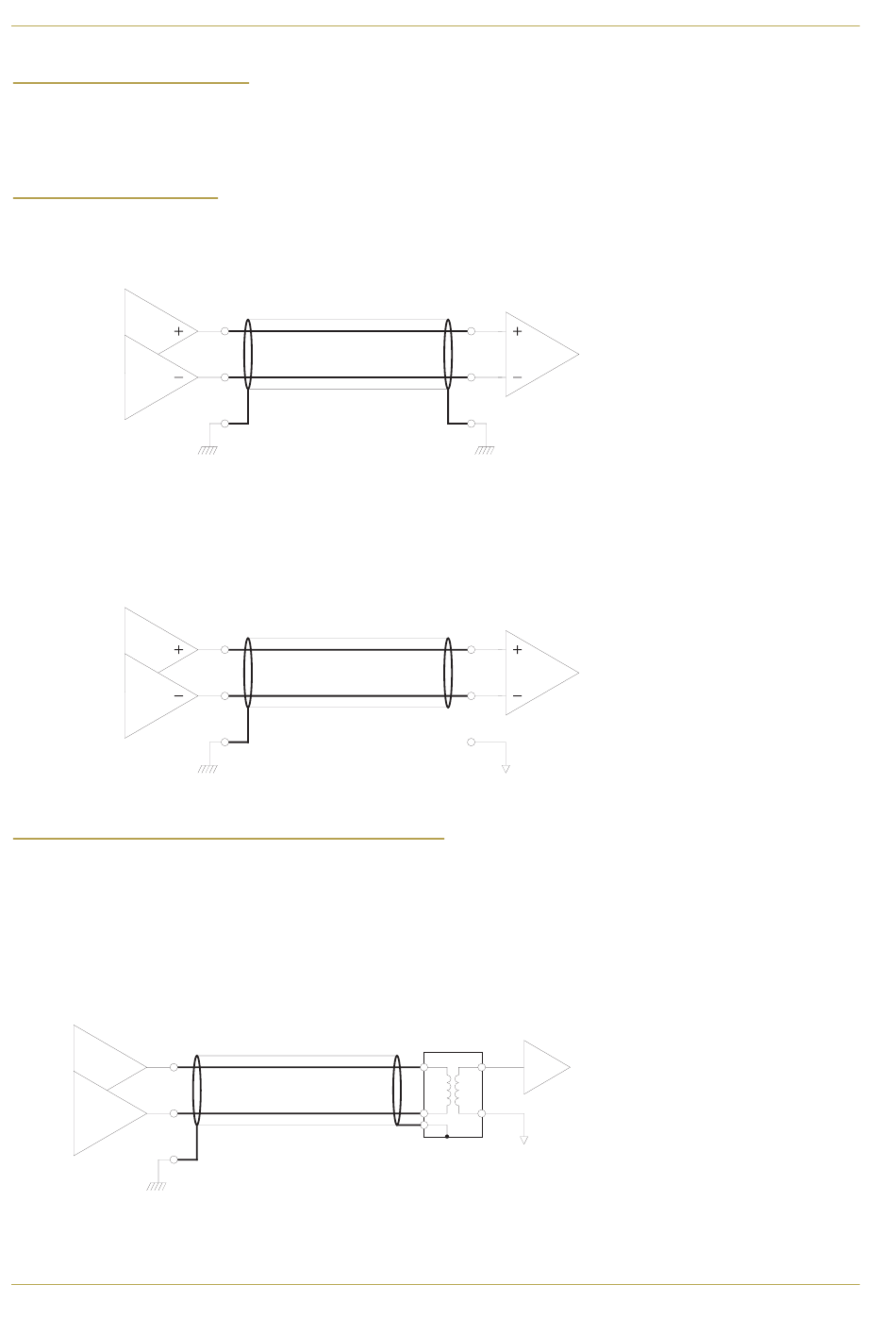

following diagram shows the recommended connection with both screens connected to the chassis:
Chassis
On some older items of equipment the screen connection may still be referenced to the circuit 0V point rather than the
chassis. In these cases it may be advantageous to disconnect the screen at this connection. Note however that this practice
will degrade the EMC performance.
Chassis
c
onnecting to
Connecting to unbalanced equipment can be much more problematic. It is quite likely that induced RF earth currents will
become referenced to the audio 0V which will give rise to audible hum and buzz.
The recommendation for connection of balanced to unbalanced equipment is to isolate unbalanced connections by using
a balancing transformer.
Chassis
Page 4-14 | Section 4 – Appendices
U e
nBALAnced qUipMent
Balanced – Balanced
Both screens connected to chassis
Chassis
Balanced – Balanced
One screen connected to chassis
0V
Balanced – Unbalanced
One screen connected to chassis
0V
