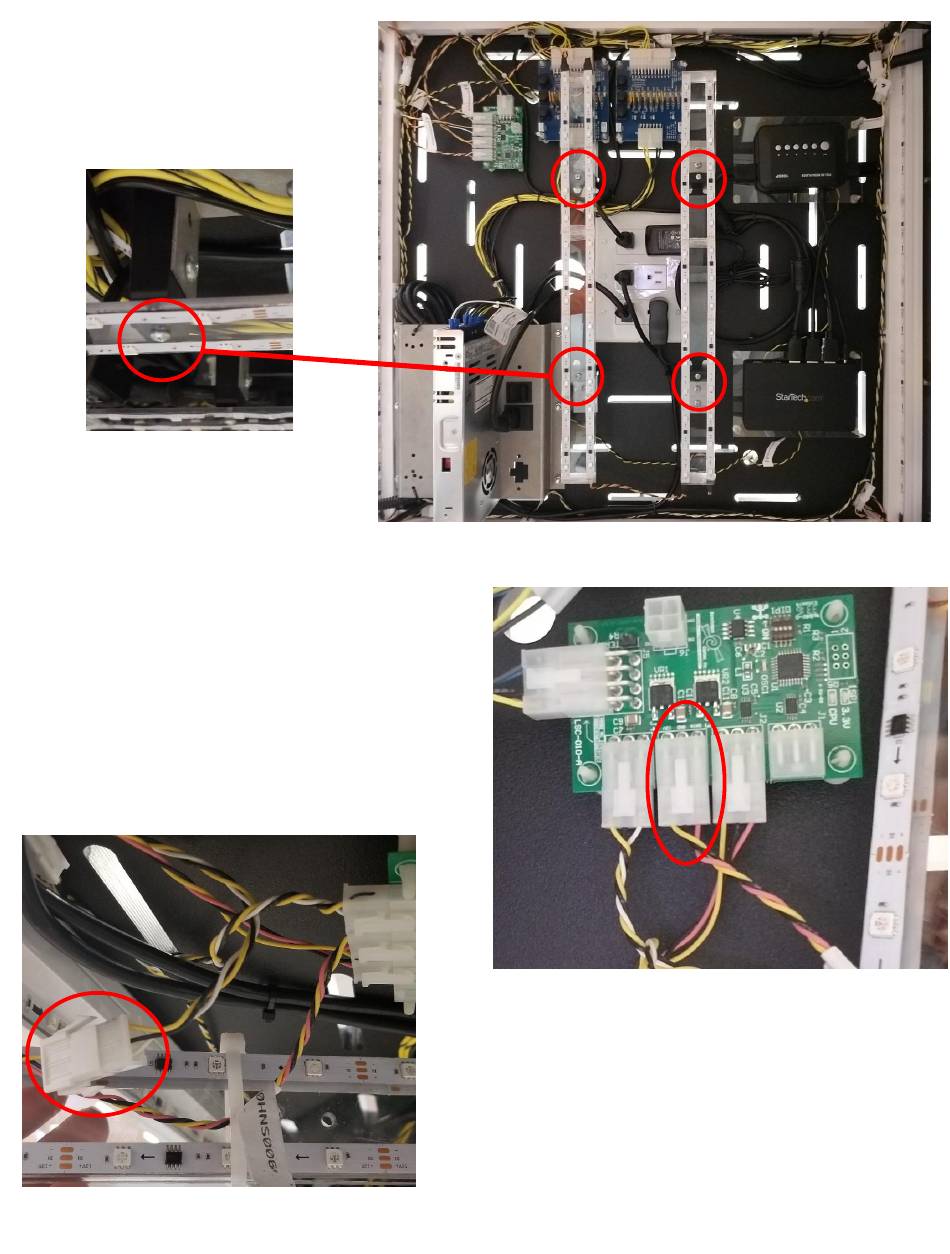

Once the Top Marquee is properly secured.
Install the Top LED Assembly. Using the four
6-24 x 3/8 screws fasten the Top LED
Assembly into place.
Now you are ready to plug in the Top LEDs to the RGB light
board. The male plug coming out of the Top LED assembly
with the Yellow, Black and Pink wires need to be plugged
into J3 of the RGB Light Board.
There will be a hanging three-pin male connector with Yellow,
Black, and white wires, this needs to connect to the female
connector on the Top RGB assembly.
