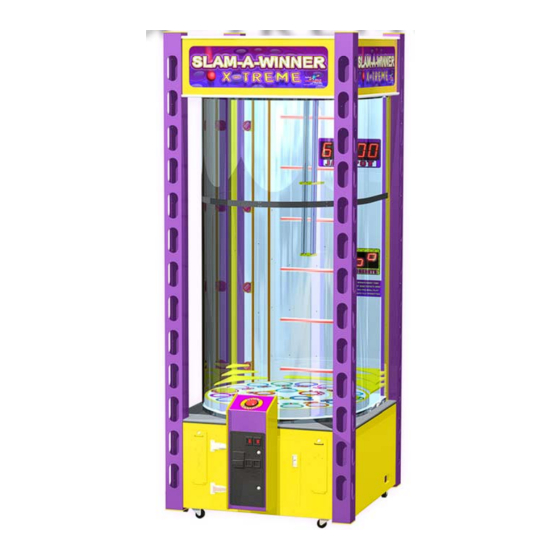

Summary of Contents for Benchmark Games SLAM-A-WINNER X-TREME
- Page 2 Table of Contents General Operation………………………………………………………. How Slam-A-Winner plays How the Wheel Scores How the Ball Lift works Programming Options…………………………………………………... Troubleshooting Guide…………………………………………………. Parts Identification……………………………………………………… Schematics……………………………………………………………… 10-13 IMPORTANT: DO NOT USE ABRASIVE CLEANERS ON ANY OF THE GLASS OR ARTWORK.
- Page 3 General Operation How Slam-A-Winner plays A player can insert as many tokens as he wishes before he starts dropping balls. Most players prefer this feature. A player tries to time a ball drop to go thru a desired hole on the rotating wheel. Note: A player can play as fast as he wants.
- Page 4 Programming Options 1.) Entering Programming Mode To enter program mode, press and hold the left button (SW1)1 located on the Power Distribution Board2. After 2 seconds, “TOTALS” will appear on the LCD Display3. At this time, release the button. “COINS IN” with the number of coins received will be displayed.
- Page 5 7.) “CHANGE PASSCODE?” Depressing Button 1 will allow for changing the passcode. Depressing Button 2 will move to “DISPLAY CONTRAST”. IMPORTANT!!! ONCE THE PASSCODE IS CHANGED, THE DEFAULT OF 0000 WILL NO LONGER WORK! BE SURE TO SAVE THE PASSCODE IN A SAFE PLACE! Entering the new passcode is accomplished in the same way that entering the passcode is done, as explained in 6.) .
- Page 6 14.) JACKPOT INCREMENT Every time a credit is logged on the game, the jackpot value is incremented by this amount. The setting is from an increment of 5 to 15. Depressing Button 1 will change this setting from 5 to 15, and then revert back to 5. Depressing Button 2 will display the next option, “SET WHEEL TYPE”.
- Page 7 Troubleshooting Guide Problem What to Check Wheel runs briefly, stops, and restarts 1. Check hall effect sensor1 operation; wheel opto light2 should flash once per wheel over and over again revolution when magnet (pressed into the bottom of the wheel) passes over sensor. If light does not flash: •...
- Page 8 2. Check ball drop solenoid5 and ball release arm6 (if solenoid does not move at all, it is most likely the ball ramp switch) 3. Check wire connection to ball ramp switch4, ball drop solenoid5, and ball release button7 1. Too many balls in machine. There should Ball Lift Jams be 5 balls loaded in the machine.
- Page 9 1. Check ball sensing opto sensors to see if ball Balls do not score opto light1 goes on when opto beam is blocked. If light does not go on: • Check power to opto receiver2 sensor pcb’s • Check output signal from the opto receiver3 pcb.
- Page 10 Parts Identification...
- Page 12 slam-a-winner ac power schematic 90 volts to 240 volts standby amp. 1.5 max. amp. 2 POWE R INP UT BOX ON/OFF SWITCH d.p.s .t 5 AM P. FUSE BLACK COM PUTE R 90/ 240 ac WHITE POWE R CORD 50/60 hz 5 AM P.
- Page 13 slam-a-winner front door pink-white pink-white cpu-j3-18 SPEAKER black black ground coin comparator yellow 12 volt (+) 12v fuse f-a high current pcb black orange black orange enable j2-4 green green output cpu j3-15 drop ball switch black red-black ground cpu j3-11 white-black white-black cpu-j2-19...
- Page 14 slam-a-winner ball ready switch n.c. black yellow-green ground cpu j3-2 jackpot display 3 digit 5 volt dc blue-yellow clock cpu j2-20 green-white latch 3 cpu j2-11 black ground yellow 12 volt (+) grey-red cpu j2-21 data 6 credit display 2 digit 5 volt dc blue-yellow clock...
- Page 15 slam-a-winner ball lift m otor 30 econo stepper pcb C-7 pin 4 pink pink pink violet phase 1 j1-8 cpu 485 comm.1 grey cpu 485 comm.2 C-7 pin 3 yellow-white yellow-white phase 1 j1-1 C-7 pin 2 blue red-white red-white phase 2 j1-9 orange...
