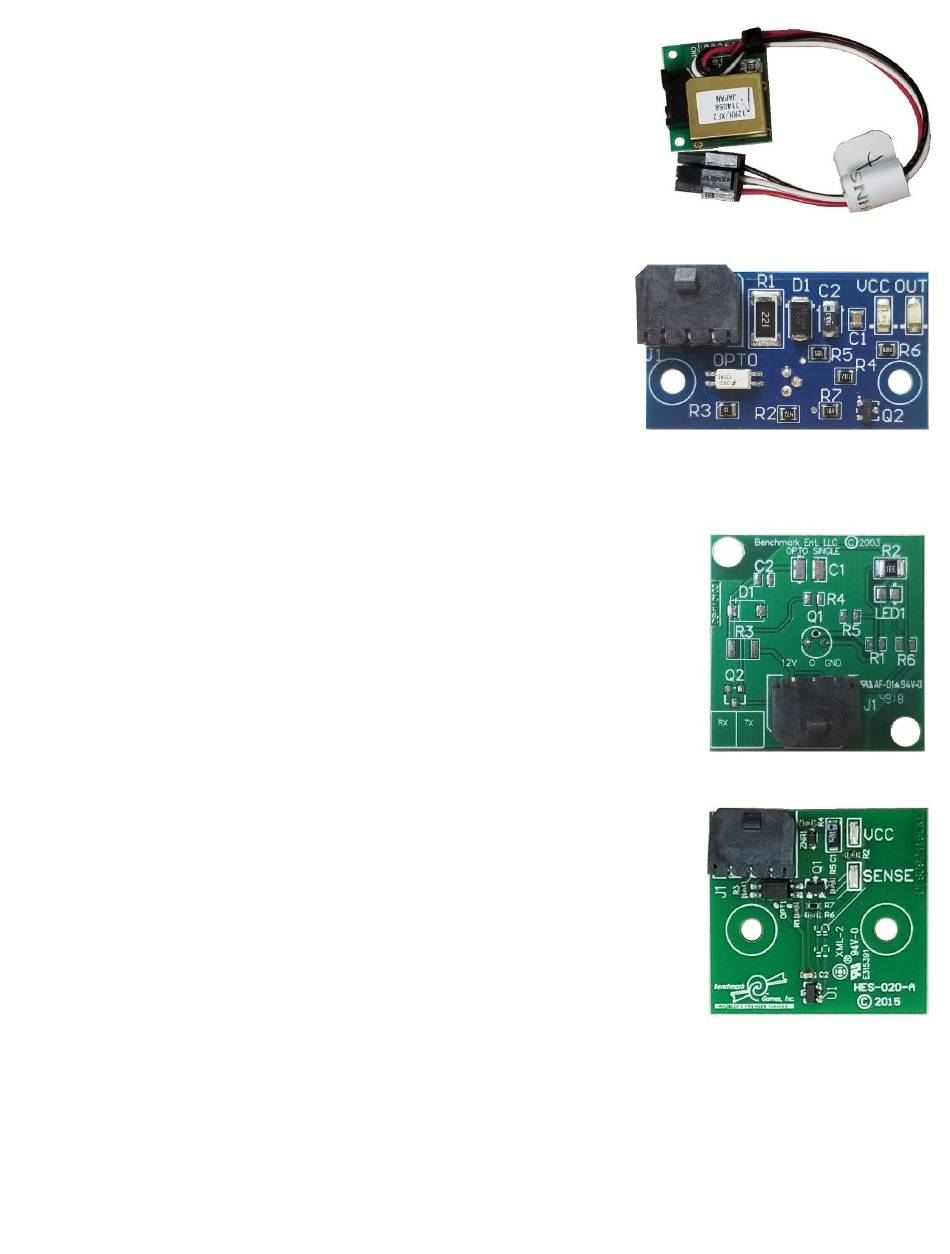

Ticket Barcode Reader
Part Number: 087PCB004/087PCB005
Location: On each ticket cutter unit.
ID Switch Setting: N/A
This board reads the barcode on the tickets as they are fed into the machine.
Opto Receiver
Part Number: PCB00046
Location: On each ticket cutter unit.
ID Switch Setting: N/A
These receiver boards look for the opposite transmitter and send a signal to
turn on the motor and count the notches on the tickets as they enter the machine.
Opto Transmitter
Part Number: PCB00029
Location: On each individual door.
ID Switch Setting: N/A
These transmitter boards send a steady beam for the opposite receiver to read.
Hall Effect Sensor
Part Number: PCB00020
Location: On each individual door.
ID Switch Setting: N/A
This sensor detects the magnet on the motor pulley.
