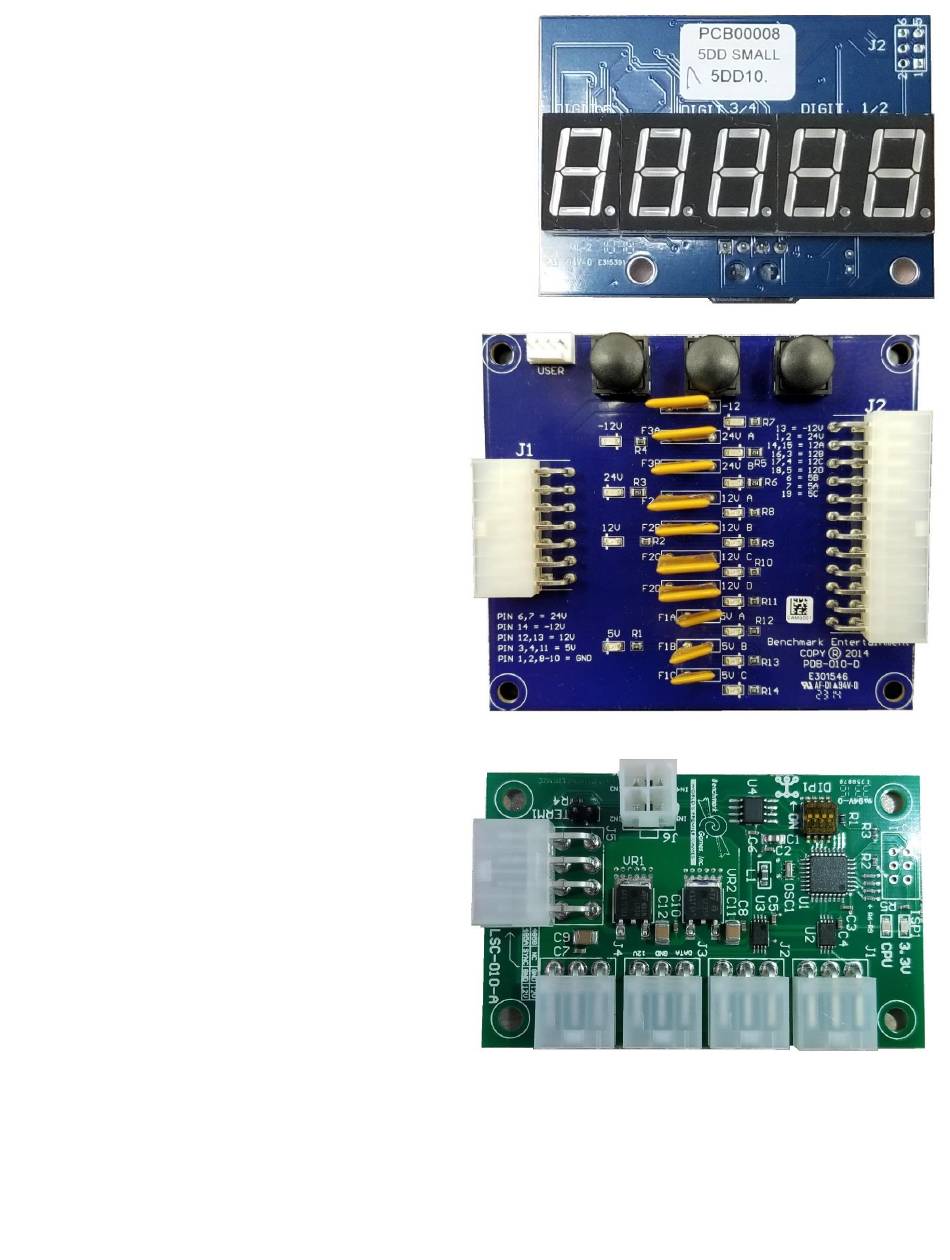

5 Digit Display Board
Part Number: PCB00008
Location: On each individual door.
ID Switch Setting: N/A
This board is used to show the count of tickets as they are fed
into the machine.
Power Distribution Board
Part Number: PCB00032
Location: On the inside roof of the cabinet.
ID Switch Setting: N/A
This board sends power to the main board, light board,
display board, motors, and lights on each door and
cabinet.
LED RGB Controller Board
Part Number: PCB00086
Location: On the inside roof of the cabinet.
ID Switch Setting: 0000(Off, Off, Off, Off)
Used to run all RGB lights
