Page 2: Table Of Contents
Table of Contents Setup Load Prizes General Operation Changing Ticket Bag Ticket Eater Service Programming 6-11 Troubleshooting Guide 11-13 Diagrams 14-21... -
Page 3: Setup
Setup Cabinet Preparation 1. Locate center/right cabinet assembly1 in the position you will want the machine. Connect power cord, but do not power the machine on. 2. Slide the left side cabinet2 together with the center/right cabinet assembly so that locating pins3 engage into locating holes. -
Page 4: General Operation

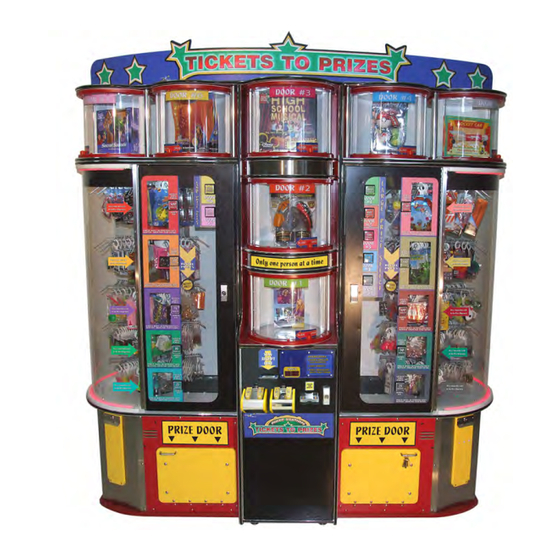

Prize doors 6 & 7 have a release pin located inside the left cabinet on the top. General Operation The Tickets To Prizes machine was designed to be a standalone enhancement or replacement for a redemption counter. Players win tickets playing redemption type games and cash them in for prizes. -
Page 5: Changing Ticket Bag
pulls the prize door open in order to remove the prize. If there was no prize on the arm that the player selected from, the player will get another try. The number of tries is a programmable option. If the player makes unsuccessful tries beyond the number set in programming, the credits will be eliminated from the machine. -
Page 6: Ticket Eater Service
Ticket Eater Service CAUTION: ALWAYS STAY CLEAR OF THE TICKET CUTTERS. Ticket Jam 1. Pull captive locking pins1 out and turn counterclockwise to secure them in the ‘out’ position. 2. Tilt cutter assembly2 down 3. Use brass handle3 to pull top assembly4 back and up to remove. 4. -
Page 7: Programming
Programming Tickets To Prizes Software Version: 5.8 1.) Entering Programming Mode To enter program mode, press and hold the left (Red) button located in the Right Enclosure, mounted on the electronics cover. After 2 seconds, “TOTALS” will appear on the LCD Display . -
Page 8: Programming
7.) “CLEAR TICKETS OWED?” This option is displayed if there are tickets that are owed that have not been dispensed, and will show the number of tickets. Depressing Button 1 will clear these tickets from the system, and “TICKETS CLEARED” will be displayed. Depressing Button 2 will display “ENTER PROGRAM MODE?”... - Page 9 options for number of allowed attempts for a vend are 1 through 5, and “NO LIMIT”. Depressing Button 1 will change the setting. Depressing Button 2 will display the next option, “TICKETS PER 1 BILL”. 14.) TICKETS PER 1 BILL If the Tickets-To-Prizes has a bill validator, then the number of tickets given for a $1 Bill can be specified.
- Page 10 19.) “EATER SAFE MODE” This option increases the Ticket Taker’s sensitivity to motor slow down. Benchmark’s Ticket Taker technology intelligently monitors the load on the motor and will momentarily slow down and increase power if a jam is detected in an effort to clear it. If Safe Mode is turned on, the eater will immediately shut down if a jam is detected.
- Page 11 The Levels are as follows: Levels 1 through 5 are the 5 levels on the right tree, starting at the bottom. Levels 6 through 10 are on the left tree, starting at the bottom, and levels 11 through 17 are Doors 1 through 7, respectively. Depressing Button 2 after the last level will display “TICKETS IN”(See Option #25 –...
-
Page 12: Troubleshooting Guide
Refer to picture below for prize level locations: Troubleshooting Guide Ticket Eaters Understanding General Operation The ticket eaters consist of 4 major assemblies: 1. Main Frame-Components of Interest: a. Ticket Opto Transmitter pcb b. Lower ticket roller 2. Upper Assembly-Components of Interest: a. - Page 13 General Features: 1. Independent ticket eater operation allows simultaneous ticket count and the reliability of redundancy. 2. Opto sensors are used to sense ticket entry and initiate startup 3. Second opto sensors are used to count ticket notches (center notch, not edge notch) and verify correct ticket length 4.
- Page 14 revolution. If the pulley is located too far from the sensor pcb, the magnetic strength will be too weak to activate the sensor. c. Check voltage to the sensor board 2. If the LED does flash, check the output of the hall effect sensor pcb all the way to the ticket eater pcb.
-
Page 15: Diagrams
UNLESS OTHERWISE SPECIFIED: Benchmark Games THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF DIMENSIONS ARE IN INCHES BENCHMARK GAMES. ANY TOLERANCES: REPRODUCTION IN PART OR AS A WHOLE TITLE: ANGULAR: +/-1 DEG. WITHOUT THE WRITTEN PERMISSION OF .XX=... - Page 24 UNLESS OTHERWISE SPECIFIED: Benchmark Games THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF DIMENSIONS ARE IN INCHES BENCHMARK GAMES. ANY TOLERANCES: REPRODUCTION IN PART OR AS A WHOLE TITLE: ANGULAR: +/-1 DEG. WITHOUT THE WRITTEN PERMISSION OF .XX=...
