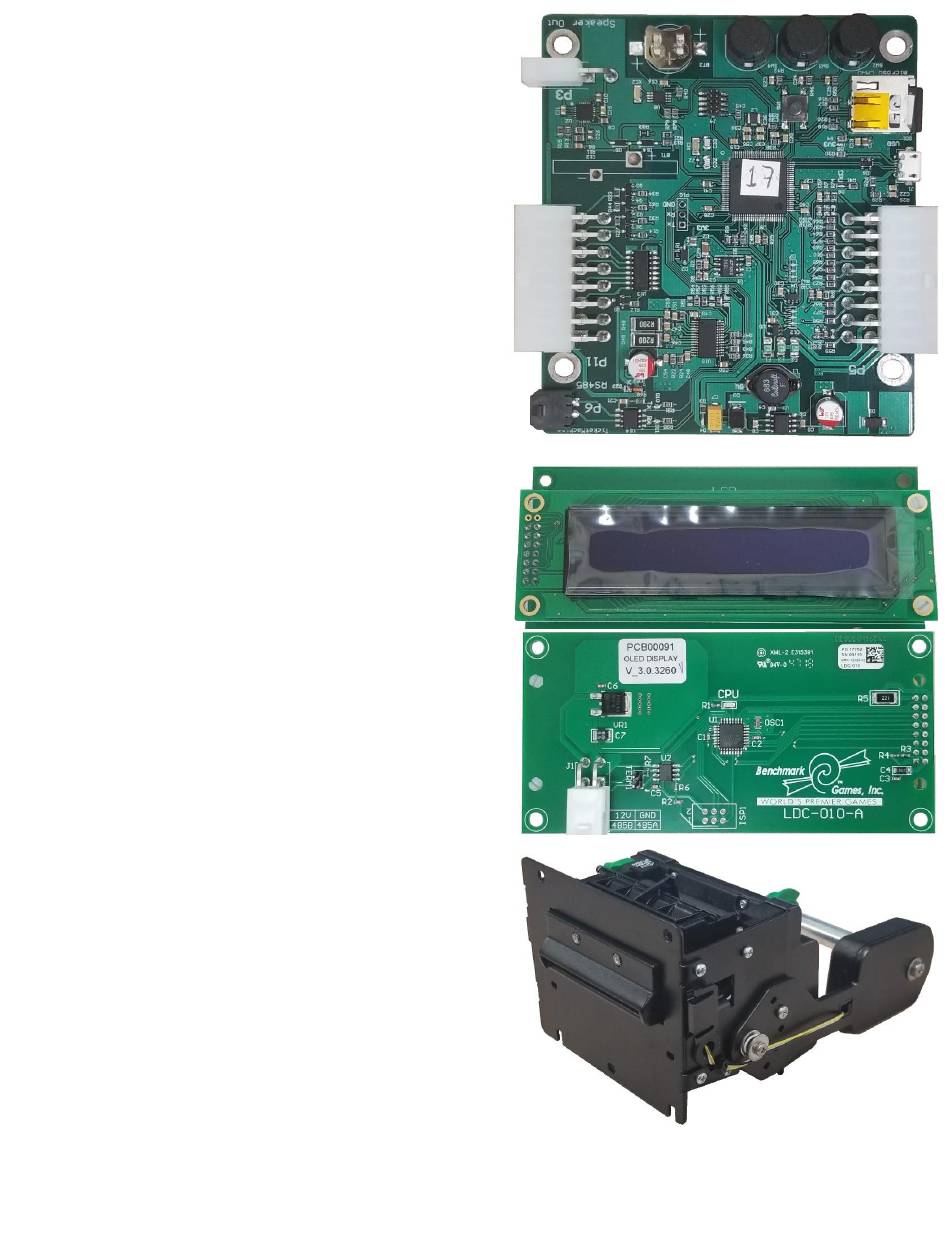

Ticket Station Control Board
Part Number: 170PCB001
Location: On each individual door.
ID Switch Setting: N/A
This board is the main controller of the machine. It decides all
the machines actions and commands the other boards to act
according to the machines scheme.
VFD Display Board
Part Number: 500ASM045
Location: On each individual door.
ID Switch Setting: N/A
This board displays instruction such as "Please insert Tickets/
Swipe Card". It also displays your program setting when in
Program Mode.
Printer
Part Number: GEN00203
Location: On each individual door.
ID Switch Setting: N/A
This USB printer is programable with your custom logo and
prints out your ticket count as well as a custom message.
