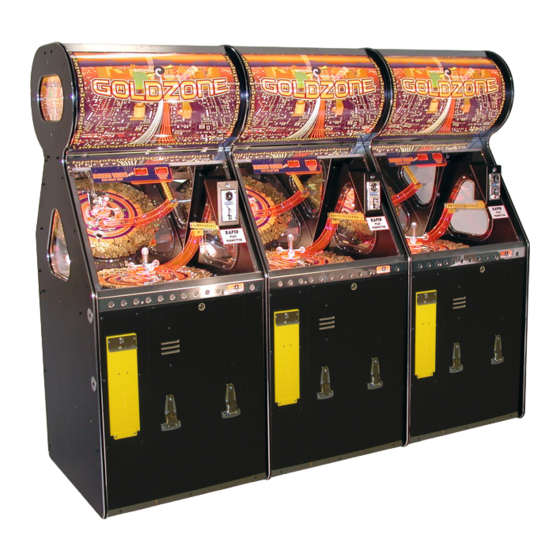

Benchmark Games GOLDZONE Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the GOLDZONE and is the answer not in the manual?

Questions and answers

Related Manuals for Benchmark Games GOLDZONE

Summary of Contents for Benchmark Games GOLDZONE

  • Page 2 TABLE OF CONTENTS INTRODUCTION WARNINGS GAME SETUP GAMEPLAY COIN MECH SETUP COIN CHUTE DESCRIPTION FLOURESCENT LIGHTS PLAYFIELD ASSEMBLY PROGRAMMING SCHEMATICS PLAYER 1 CPU-1 4 DIGIT DISPLAYS SCHEM-2 TICKET DISPENSER, SPEAKER, COUNTERS SCHEM-3 ROTATING PLAYFIELD, HOPPER, HALOGEN LIGHT SCHEM-4 COIN MECH, OPTO SWITCH, TILT, JACKPOT SWITCH SCHEM-5 SCHEMATICS PLAYER 2 4 DIGIT DISPLAYS...
  • Page 3 HOW TO PROGRAM YOUR MACHINE SHOULD YOU NEED TO. PLEASE READ THE MANUAL BEFORE YOU CALL US FOR ANY INFORMATION. WHEN YOU CALL PLEASE HAVE THE SERIAL NUMBER FOR YOUR GAME IN HAND. BENCHMARK GAMES, INC. 51 HYPOLUXO RD. HYPOLUXO, FL 33462 561-588-5200...
  • Page 4 100-130VAC 60HZ. LINE FUSE 5 AMP COPYRIGHT@ 2002 BENCHMARK GAMES. ALL RIGHTS RESERVED THE GAME, TECHNICAL MANUAL, GRAPHIC DESIGNS AND SCHEMATIC DIAGRAMS ARE PROTECTED BY THE U.S. COPYRIGHT ACT OF 1979. BENCHMARK GAMES WILL ENFORCE ITS COPYRIGHT AND PATENTS AGAINST INFRINGERS.
  • Page 5 GOLDZONE SETUP 1. REMOVE GAME FROM BOX. 2. OPEN WOOD DOOR AND REMOVE CASHBOX. REMOVE THE POWER PLUG, SPINNER ASSEMBLY AND THE PLATTER BALLS,(7/16" METAL BALLS). 3. REMOVE THE GLASS BY UNLOCKING THE LOCK AT THE TOP CORNERS OF THE GLASS AND PULLING THE GLASS OUT,(NOTE: THE COIN MECH WILL BECOME UNPLUGGED).
  • Page 6 GAME DESCRIPTION THERE IS A ROTATING PLATTER THAT TURNS AT A CONSTANT SPEED. THE 4 DIGIT LED'S AT THE TOP OF EACH PLAYER KEEPS TRACK OF THE JACKPOT AMOUNT AND THE TICKETS OWED. COINS CAN BE INSERTED AS FAST,(RAPID PLAY), AS THE PLAYER CAN INSERT THEM. GAMEPLAY THE PLAYER INSERTS A COIN INTO THE GAME, THE COIN THEN SLIDES DOWN THE COIN RAMPS ONTO THE ROTATING PLATTER.
  • Page 7 COIN MECH SETUP WHEEL DEAL USES A COIN COMPARATOR. A SAMPLE COIN MUST BE INSERTED AND LEFT IN THE MECH AS SHOWN BELOW. WHEN THE PLAYER INSERTS A COIN FOR GAMEPLAY, THE MASS OF THE COIN IS MEASURED AGAINST THE SAMPLE COIN AND IS ACCEPTED OR REJECTED. THE COIN MECH SWITCH ON THE SIDE MUST BE SET TO N.O.(NORMALLY OPEN), NOT N.C.
  • Page 8 COIN CHUTE DESCRIPTION WHEN COINS FALLS OFF THE PLAYFIELD, THEY SLIDES DOWN THE COIN CHUTE. IT THEN HITS THE METAL COIN PLATE WHICH ACTIVATES THE OPTO SENSOR. WHEN THE OPTO SENSOR IT ACTIVATED, IT STARTS THE HOPPER. THE HOPPER WILL CONTINUE TO RUN UNTIL THERE ARE NO MORE COINS IN IT.
  • Page 9 FLOURESCENT AND INCANDESCENT LIGHTS TO REPLACE THE FLOURESCENT LIGHT IN A GOLD ZONE: 1. REMOVE THE 2 6-32 ACORN NUTS AND THE TOP METAL PLATE ON THE TOP OF THE GAME. 2. REPLACE THE BULBS. 3. REPLACE THE TOP PLATE WITH THE ACORN NUTS. NOTE: THE FLOURESCENT LIGHTS ARE 100 WATT SPIRAL FLOURESCENT BULBS AVAILABLE AT MOST HARDWARE STORES.
  • Page 10 PLAYFIELD ASSEMBLY AND ADJUSTMENTS IF YOUR COINS ARE GOING UNDERNEATH THE COIN POINTER BEFORE THEY GET TO THE END OF THE POINTER, OR IF YOUR ROTATING PLAYFIELD IS GETTING SCRATCHED IN A CIRCULAR PATTERN, YOU MAY NEED TO ADJUST THE COIN POINTER HEIGHT. HOW TO ADJUST: 1.
  • Page 12 NOTE: THERE HAVE BEEN 5 REVISIONS OF THE BENCHMARK CONTROLLER, ONLY REV 5 WILL WORK IN GOLDZONE. THE JUMPER ON THE MHZ MUST BE SET AT 33 MHZ AS SHOWN ON THE PICTURE ABOVE. BE CAREFULL WITH THE CONNECTORS NOT TO PUT THEM ONE PIN OFF OR BEND ANY OF THE PINS.
  • Page 13 Schematic: Schematic: Schematic: 4 DIGIT JACKPOT DISPLAY PLAYER 1 J106 PIN 5 PIN 5 VOILET/BLACK pin 1 J105 pin 2 PIN 3 NOT USED BLACK pin 3 J106 PIN 4 ORANGE pin 4 POWER DIST. BLOCK GREEN/WHITE pin 5 pin 6 4 DIGIT TICKETS OWED DISPLAY PLAYER 1 J106 PIN 5...
  • Page 14 Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: J202 PLAYER 3 TICKET DISPENSER PIN 5 POWER DIST. BLOCK WHITE/BROWN pin 1 BLACK pin 2 J106 PIN 8 WHITE/OR/BLUE pin 3 YELLOW YELLOW +12VDC pin 4 LOW TICKET LIGHT,(PLAYER 3). POWER DIST.
  • Page 15 Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: METAL POWER DIST. BOX METAL POWER DIST. BOX ROTATING PLAYFIELD MOTOR 110 VOLTS AC. WHITE WHITE HOPPER PLAYER 3 J103 PIN 3...
  • Page 16 Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: PLAYER 3 COIN MECH POWER DIST. BLOCK YELLOW +12VDC pin 1 BLACK pin 3 J201 PIN 10 GRAY pin 2 COIN CHUTE OPTO SWITCH PLAYER 3 POWER DIST. BLOCK pin 1 J202 PIN 10...
  • Page 17 Schematic: Schematic: Schematic: 4 DIGIT JACKPOT DISPLAY PLAYER 2 J106 PIN 6 YELLOW/RED/GREEN pin 1 J105 pin 2 PIN 5 NOT USED BLACK pin 3 J106 PIN 4 VOILET/YELLOW pin 4 POWER DIST. BLOCK GREEN/WHITE pin 5 pin 6 4 DIGIT TICKET OWED DISPLAY PLAYER 2 J106 PIN 6 PIN 5...
  • Page 18 Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: PLAYER 1 TICKET DISPENSER J202 PIN 3 POWER DIST. BLOCK BLACK/RED/WHITE BLACK/RED/WHITE pin 1 BLACK pin 2 J106 PIN 3 pin 3 YELLOW +12VDC YELLOW pin 4 LOW TICKET LIGHT POWER DIST.
  • Page 19 Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: PLAYER 1 COIN MECH POWER DIST. BLOCK YELLOW +12VDC pin 1 BLACK pin 3 J201 PIN 3 BLUE/WHITE pin 2 COIN CHUTE OPTO SWITCH POWER DIST. BLOCK pin 1 WHITE pin 3 J201...
  • Page 20 Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: METAL POWER DIST. BOX ROTATING PLAYFIELD MOTOR 110 VOLTS AC. WHITE WHITE HOPPER PLAYER 1 J101 PIN 3 VIOLET/WHITE PIN 9 PIN 4 YELLOW+12VDC PIN 8 POWER DIST.BLOCK J202 PINK/WHITE PIN 6...
  • Page 21 Schematic: Schematic: Schematic: 4 DIGIT JACKPOT DISPLAY PLAYER 3 J106 PIN 7 PIN 5 GREEN pin 1 J105 pin 2 PIN 7 NOT USED BLACK pin 3 J106 PIN 4 GREY/BLACK pin 4 POWER DIST. BLOCK GREEN/WHITE pin 5 pin 6 4 DIGIT TICKET OWED PLAYER 3 J106 PIN 7...
  • Page 22 Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: J202 PLAYER 2 TICKET DISPENSER PIN 4 POWER DIST. BLOCK WHITE/RED pin 1 BLACK pin 2 J106 PIN 9 WHITE/VIOLET pin 3 YELLOW YELLOW +12VDC pin 4 LOW TICKET LIGHT,(PLAYER 2). POWER DIST.
  • Page 23 Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: METAL POWER DIST. BOX METAL POWER DIST. BOX ROTATING PLAYFIELD MOTOR 110 VOLTS AC. WHITE WHITE HOPPER PLAYER 2 J102 PIN 3...
  • Page 24 Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: Schematic: PLAYER 2 COIN MECH POWER DIST. BLOCK YELLOW +12VDC pin 1 BLACK pin 3 J201 PIN 4 YELL/BLUE pin 2 COIN CHUTE OPTO SWITCH PLAYER 2 POWER DIST. BLOCK pin 1 J202 PIN 9...
  • Page 25 TROUBLESHOOTING GUIDE THE 4 DIGIT LED'S DO NOT COME ON . IS ONE OF THE FUSES ON THE POWER DISTRIBUTION BLOCK BLOWN,(LED ON). IF NO LIGHTS OR MOTORS COMES ON, CHECK MAIN FUSE IN SWITCH ASSEMBLY. IS MAIN FUSE BLOWN FUSE IS BLOWN, REPLACE FUSE CHECK FOR LOOSE YELLOW , RED OR...
  • Page 26 TROUBLESHOOTING GUIDE CONT'D 4 DIGIT DISPLAY DOES NOT INCREMENT BY 3 AFTER INSERTING COIN DOES GAME MAKE COIN ENTRY SOUND CHECK DATA WIRES TO CHECK COIN MECH DISPLAY FUNCTION TICKETS DONT PAY OUT 10-12 TICKETS COME OUT EVERY PLAY NO TICKETS COME OUT CLEAN OPTO SENSOR IN TICKET DISPENSER PROBLEM STILL...
