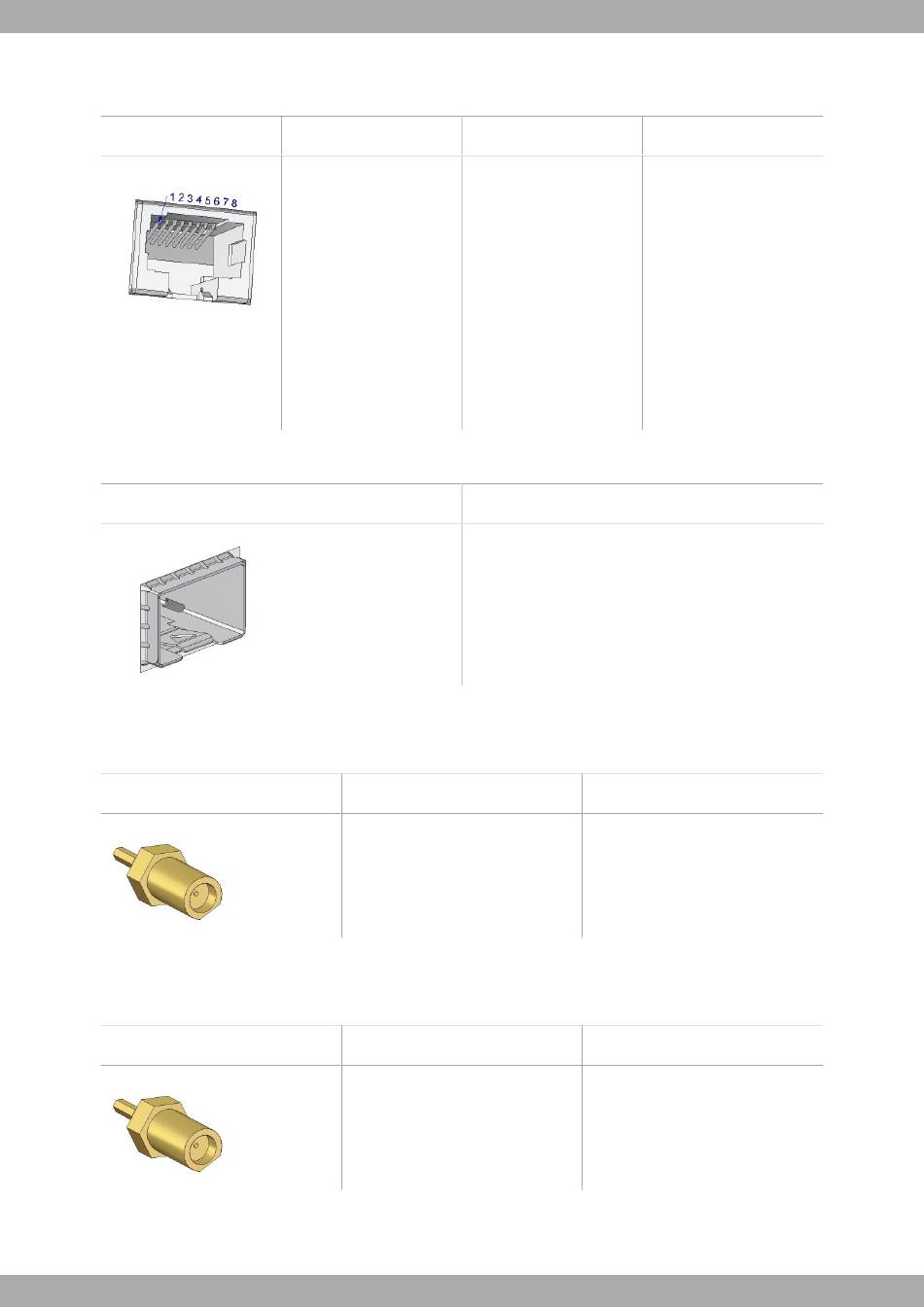

A.4.2 WAN Base-T Connector
RJ45 WAN
A.4.3 WAN SFP Connector
SFP
A.4.4 WWAN Connector
Devices equipped with this interface have up to four SMA female connectors installed.
SMA Female
A.4.5 GPS Connector
Devices equipped with this interface have one SMA female connector installed.
SMA Female
Teldat Connect-KFPlus
RJ45 PIN
1
2
3
4
5
6
7
8
PIN
Internal
External
PIN
Internal
External
FE Signals
BI-DA+
BI-DA-
BI-DB+
--
--
BI-DB-
--
--
Standard SFP connector
ANT
RF in/out
GND
ANT
RF in/out
GND
Technical Information
GE Signals
BI-DA+
BI-DA-
BI-DB+
BI-DC+
BI-DC-
BI-DB-
BI-DD+
BI-DD-
23
