Teldat S.A.
Chapter 3 Components and Power Supply
The following chapter provides detailed information on the chassis of the Teldat Connect-KFPlus router and its
components. This information includes:

• Components.

• Information on assembly.
• Power supply.
• RST button.
• Data connection.
• SIM card installation.
• Embedded access point.
3.1 Components

3.1.1 Front Panel

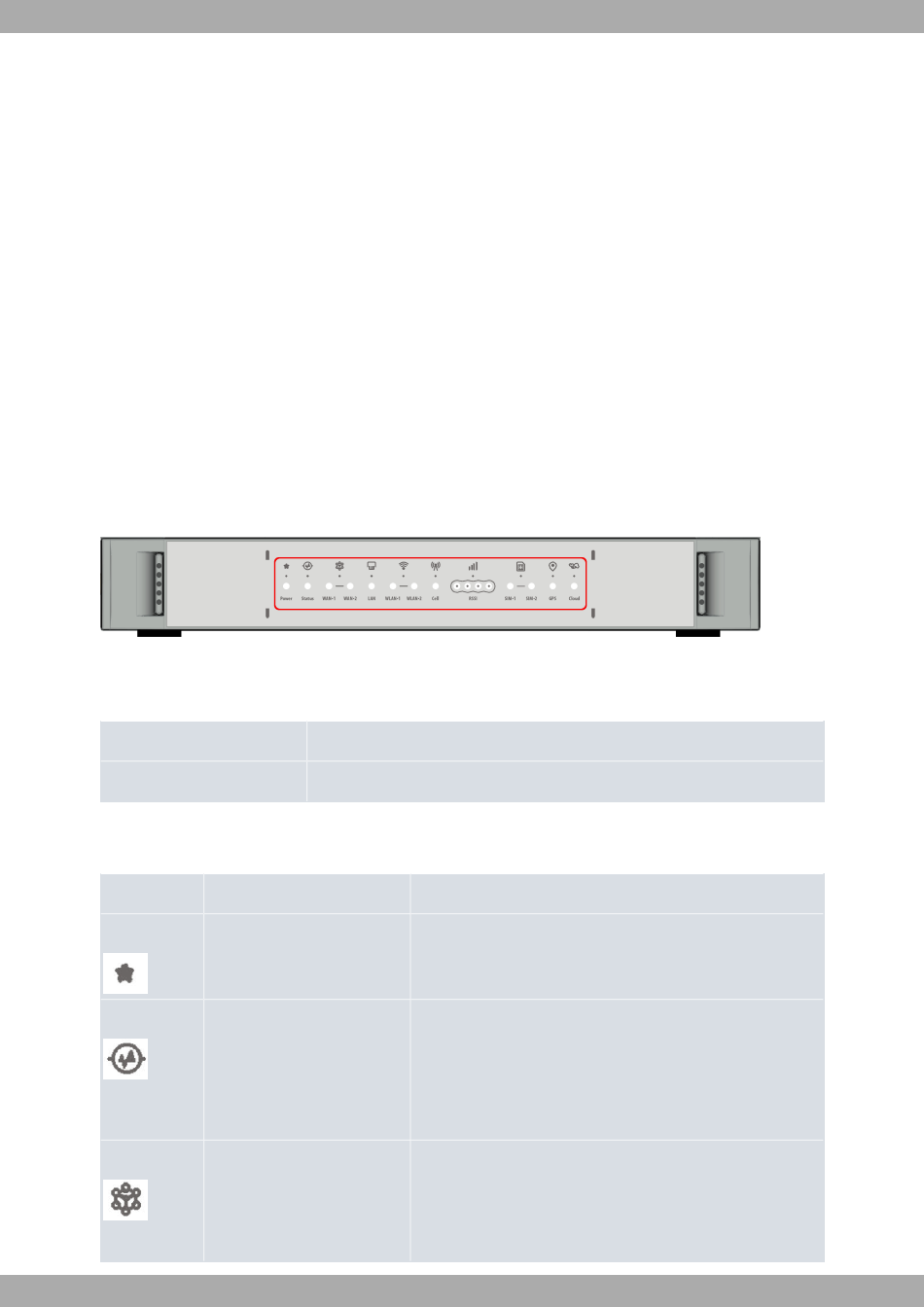

The following figure shows the front panel.
Front Panel of the Teldat Connect-KFPlus
Fig. 1:
The front panel elements are as follows:
FRONT PANEL ELEMENTS
Item
A
The LED panel provides information on the status of the components (indicating whether they are active or not) and
on network activity.
LEDs
LED
Power
Status
WAN-1
Teldat Connect-KFPlus
Description
LED panel.
Definition
Power / Switch On-Off
General Status /
Default Configuration Process
Base-T / SFP
device
Status Indication
Off -> No power through PSU.
On -> Powered through PSU.
Off -> System off.
Red -> Error, component operating incorrectly.
Green -> System initialized and operating.
Amber (blink) -> Default configuration.
Off -> No link or not used.
Green -> Link (1G). Blinking: traffic activity.
Amber -> Link (<1G). Blinking: traffic activity.

3 Components and Power Supply

5
