1 Installing the Router

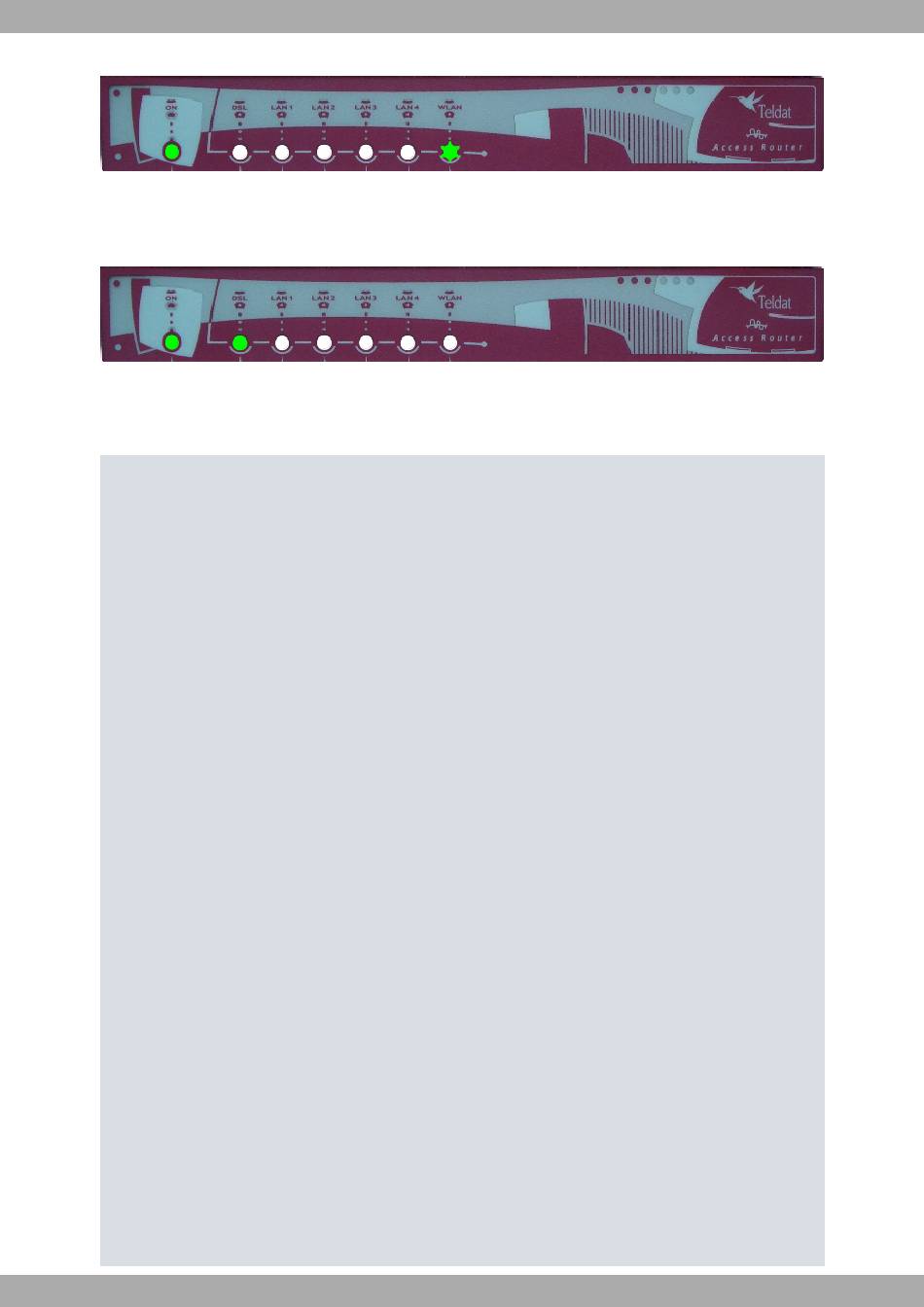

The WLAN LED flashing
Fig. 23:
• After about 15 seconds, the WLAN LED goes out and the DSL LED lights up (see
release the reset button.
WLAN LED goes out and the DSL lights up
Fig. 24:
• Wait for a few seconds until the device completes start up. If you have a local console connected to the CONF.
port, you can see that the device has paused start up in the BIOS menu (>> prompt):
CFE version 1.0.37-102.9-01 for BCM96358 (32bit,SP,BE)
Build Date: Fri Dec
Copyright (C) 2000-2008 Broadcom Corporation.
Parallel flash device: name AM29LV320MT, id 0x2201, size 16384KB
CPU type 0x2A010: 300MHz, Bus: 133MHz, Ref: 64MHz
CPU running TP0
Total memory: 67108864 bytes (64MB)
Boot Address 0xbe000000
*** Break into BIOS menu ***
Board IP address
Host IP address
Gateway IP address
Run from flash/host (f/h)
Default host run file name
Default host flash file name
Boot delay (0-9 seconds)
Boot image (0=latest, 1=previous) : 0
Board Id (0-0)
Number of MAC Addresses (1-32)
Base MAC Address
PSI Size (1-64) KBytes
Main Thread Number [0|1]
DHCP running
*** Press any key to stop auto run (3 seconds) ***
Auto run second count down: 0
Booting from latest image (0xbe160000) ...
Code Address: 0x80010000, Entry Address: 0x80330000
Booting version 10.08.01
Decompression OK!
Entry at 0x80330000
Closing network.
Closing DMA Channels.
Starting program at 0x80330000
CIT software version: 10.08.01
Current software license: 22 48
16
4 12:10:54 CET 2009 (jsirodey@orion)
: 192.168.1.1:ffffff00
: 192.168.1.100
:
: f
:
:
: 3
: 96358C1PL
: 4
: 00:a0:26:6e:00:58
: 24
: 0
Fig. 24 on page 16). At this point
