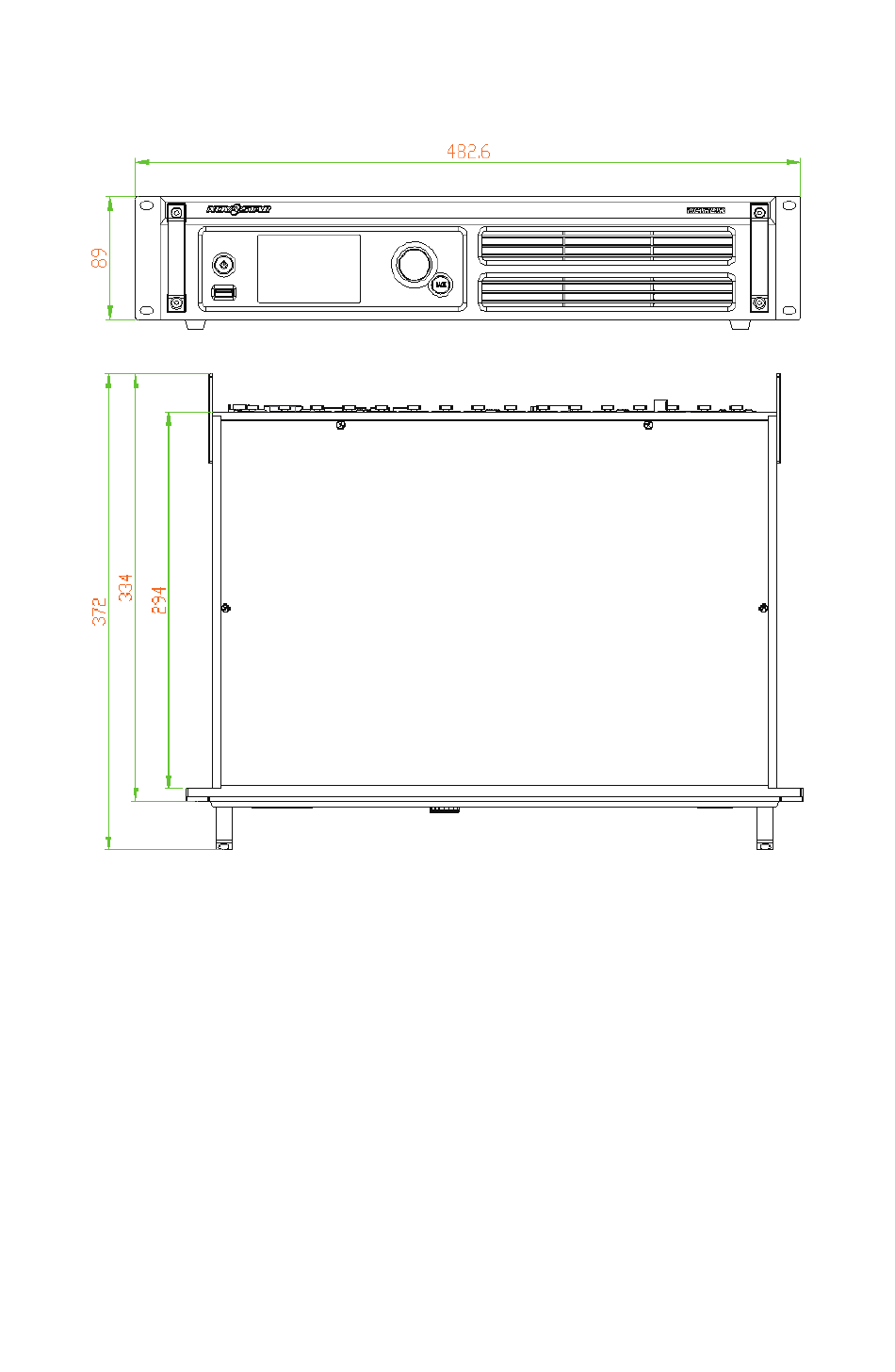

3 Dimensions

4 Operating Motion Instruction

Knob:
While in main interface, press the knob to enter menu interface;
ƒ
While in menu interface, rotate the knob to select menus and press the
ƒ
knob to select current menu or enter submenus;
Select a menu with parameters and rotate the knob to adjust the
ƒ
parameters. Please remember to press the knob again for confirmation after
adjustment.
BACK: A return button to exit from current menu or operation.
Lock /Unlock buttons: Press and hold the knob and ESC key simultaneously.
MC TRL 4 K Us e r ' s M a n u a l
(mm)
-4-
