User Manual
9d24 Mkll Cordless Telephone
for handsets and/or batteries in each rack (see Data Sheet Charging Rack TD 92382GB).
Handsets with pull-cord alarm can be charged in the Charging Rack without removing
the pull-cord catch.
As the handset cannot distinguish between a Desktop Charger and Charging Rack, it is
recommended that the alert signal is silenced when placed in a rack. It can be set in the
"In charger" mode, see
parameter that can be set in the SIM Card Programmer by your system administrator.
Note: When charging an EX-version the Charging Rack must be marked with CR2.
2.5

Icons and Text in the Display

The icons and text in the display indicate functions and settings to which you have access.
The display normally shows the owner ID and the system ID, for example "System A".
This indicates that the handset is in contact with System A. The owner ID is manually set
by the user.
System A
A Brown
Info

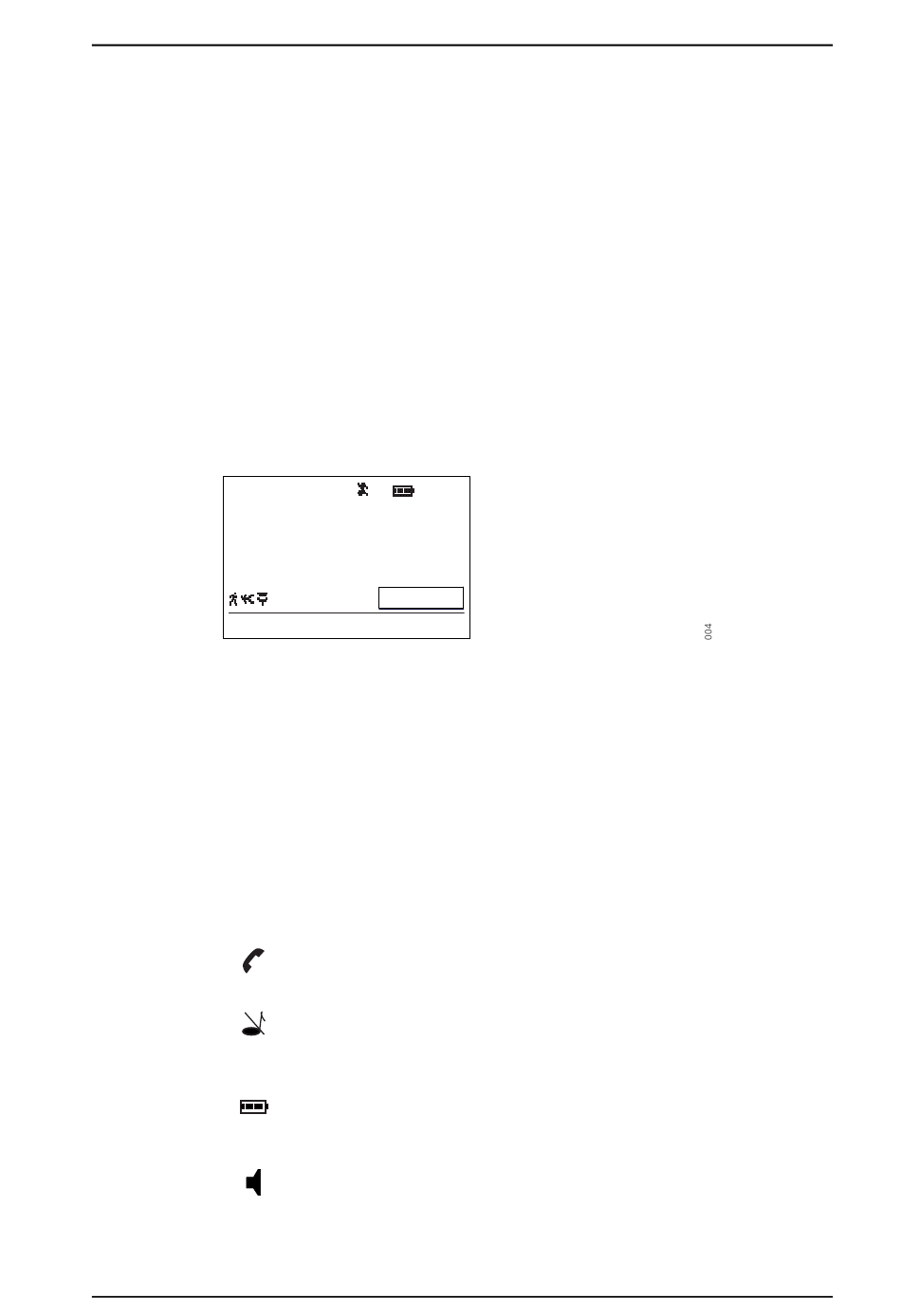

Figure 4. Example of a display configuration in stand-by mode.
In stand-by mode the upper row is used for icons and the clock. Three rows are used for
information. First row for system information and second row for user information. The
user information in stand-by mode can be set by the user. The third information row is
used for showing the alarm icons and status of the handset. Examples of status
information are; muted, in charger etc. When there is no status to show the row is empty.
The bottom row (under the line) is the Soft key field. In stand-by mode it shows the user
defined names of the three Soft keys beneath the display. In menu mode where the Soft
keys are used for different choices, it gives you the function of each Soft key. Examples of
functions are; Back, Option, Save etc.
2007-02-07/ Ver. D
8.3.2 Change Mode Settings
Figure 6.
}
13:22
}
}
4321
}
In charger
}
Doctor Jobs
"Hook off" icon indicates that your telephone is off hook.
"Audio signal off" icon is shown when all alert signals, including
ring signal, message tone, key beep etc. are turned off. High priority
messages will however override this setting.
"Battery" icon is always shown in the display in stand-by mode.
When the level is low it is time to charge the battery.
"Loudspeaking" icon is shown when the loudspeaker is activated
and the handset is in loudspeaking operation.
on page 35. There is also a SIM
Shows time and icons
System information
User information: User defined
in stand-by mode
Alarm icons and
status information, i.e. current mode
Shows the Soft keys function:
User defined in stand-by mode
TD 92333GB
6
