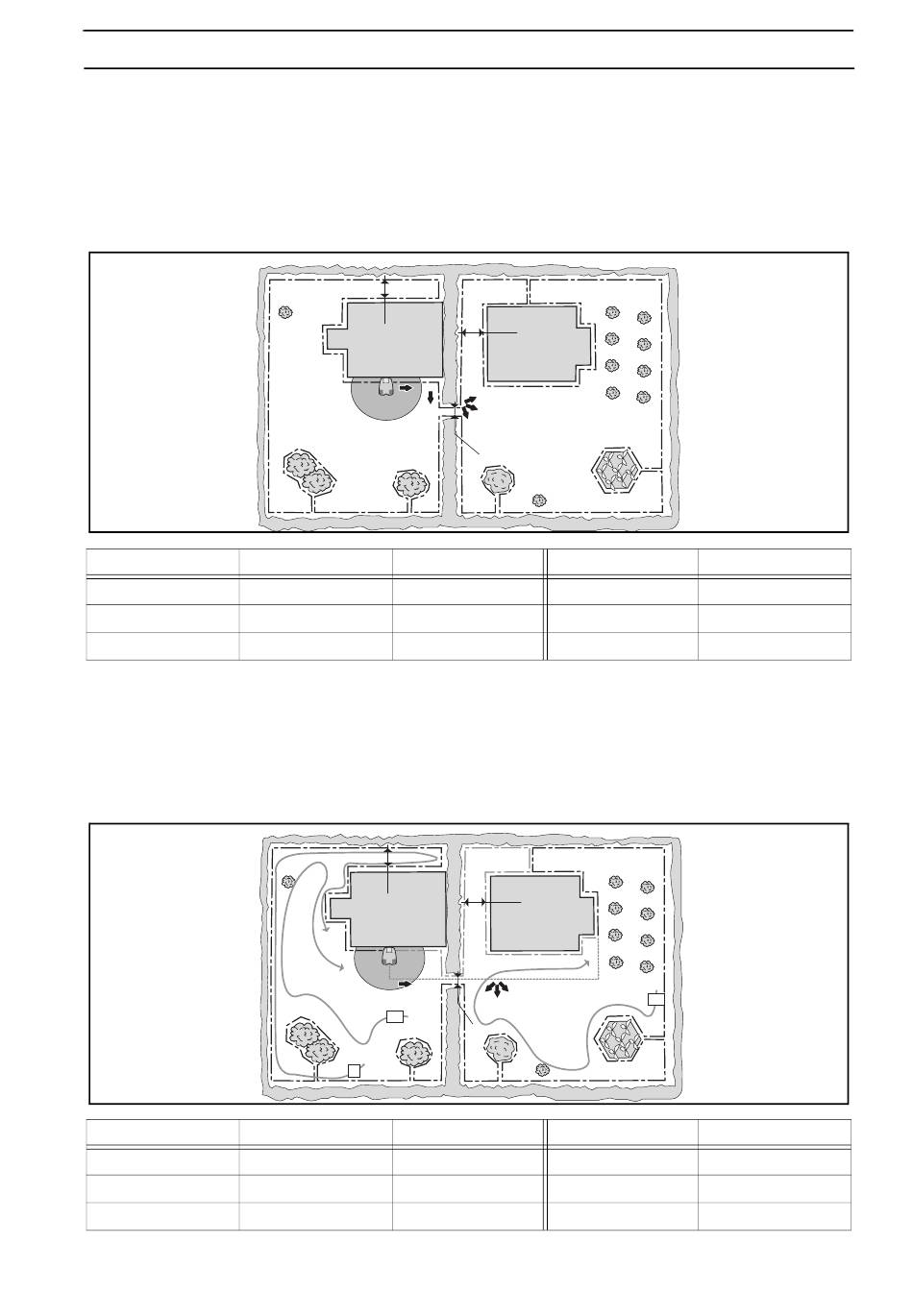

Example number 4
In this example a Corridor width 0 is required for the mower to pass through the passage. This setting
requires the boundary wire to be at least 40cm (16") inside the working area, which the passage is too
narrow for. The working area also contains many islands, which makes it inappropriate to allow the mower
to follow the boundary wire. In order for the mower to easily pass through the passage, to avoid tracks
forming and to get shorter search times, a guide wire through the passage is recommended.
Non approved
Follow loop Boundary wire
Delay 11 minutes
Corridor width 0
With the help of a guide wire, the Automower finds the charging station easily from Area 1. On the other
hand, there is a risk of the mower not finding its way out of the area if it does not find the guide wire and
start to follow it before the delay time for the boundary wire has elapsed. From Area 2 the Automower will
normally find the charging station by using the Irregular search method. With an increased corridor width
for the boundary wire the mower, when searching, will run past several passages instead of running
through them, which is an advantage in Area 2.
Fully approved
Follow loop Boundary wire
Delay 18 minutes
Corridor width 15
