Husqvarna Automower Solar Hybrid Technical Manual page 60

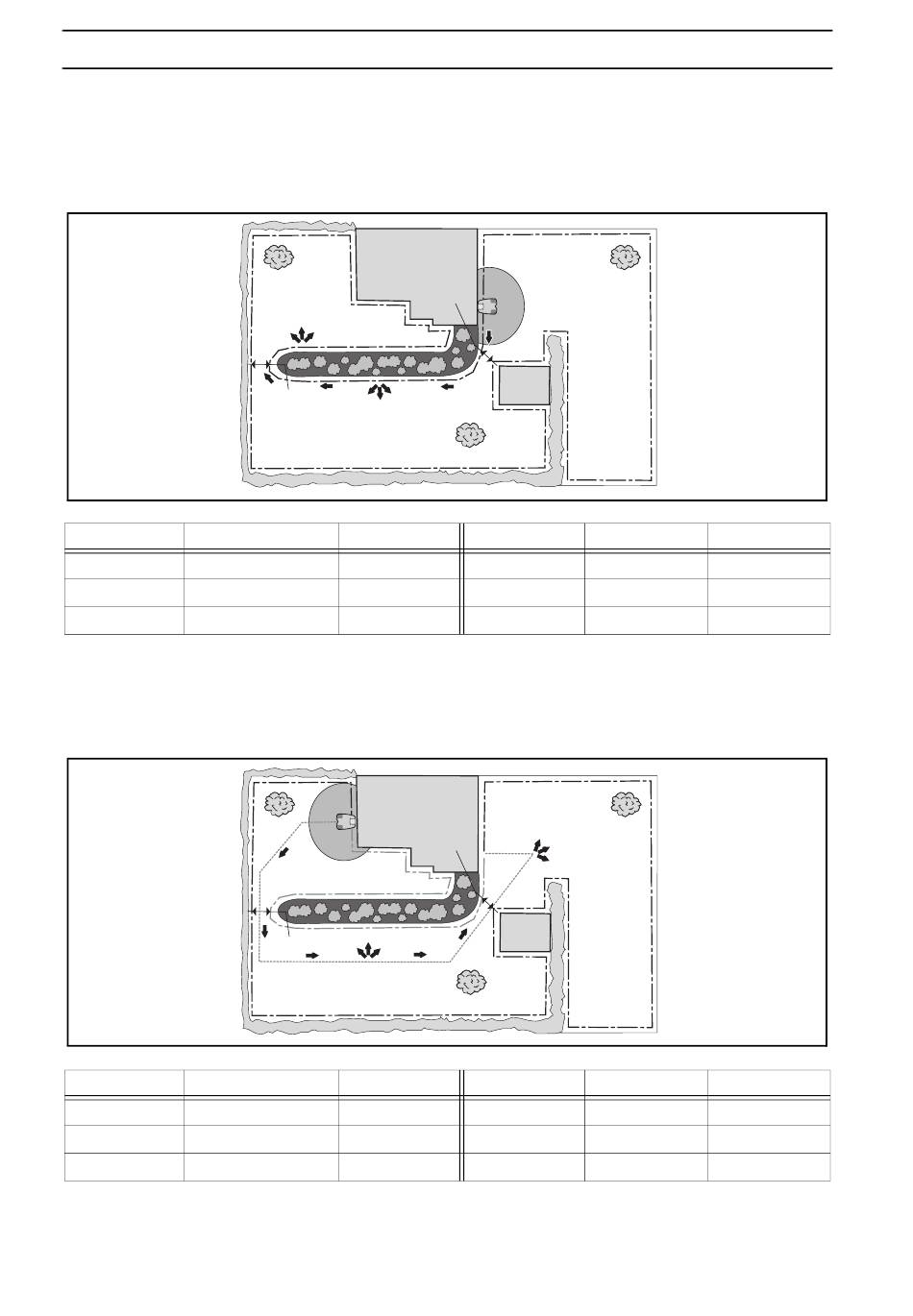

Example number 8
In this example Corridor width 1 is required for the mower to pass through the passages. The installation is
approved, but can be designed better. Both another charging station placement and a guide wire are
recommended.
Approved
Follow loop Boundary wire
Delay 11 minutes
Corridor width 1
By adopting another charging station placement it will be easier to install a guide wire and make a guide
loop that is shorter than 200 metres (700 ft). However, there is a risk of tracks forming as the charging
station is located far from the largest areas of the working area. The installation will be fully approved if the
charging station is moved again.
Approved
Follow loop Boundary wire
Delay 11 minutes
Corridor width 1
60 - English
3. INSTALLATION
1
1.5m (5ft)
1.5m (5ft)
2
Guide wire
7 minutes
6
1.5m (5ft)
1.5m (5ft)
1
Guide wire
7 minutes
6
Follow loop out Area 1
Direction Left
Distance 30 metres (100 ft)
Proportion 20%
2
Follow loop out Area 1
Direction Guide
Distance 20 metres (65 ft)
Proportion 40%
3012-646
Area 2
Left
15 metres (50 ft)
40%
3012-636
Area 2
Guide
40 metres (130 ft)
40 %
