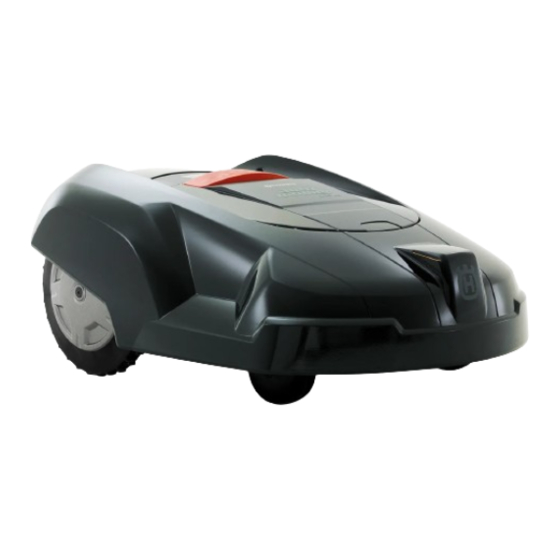

Husqvarna AUTOMOWER 230 ACX Quick Manual

5
ADJ U ST TH E MOWE R TO SU IT YOU R GARDE N
See chapters 6.4 and 6.5 in the Operator's Manual.
Here you will fi nd a few tips about important settings for your Automower™.
All settings for Automower™ are made using the menu functions.
ADJUST THE MOWER TO SUIT THE SIZE OF YOUR LAWN
The mowing results depend on mowing time. Adjust the
mowing time to suit your garden using the Timer function.
If the mower works too often: The lawn will appear trampled
down.
If the mower works too seldom: The lawn will not be properly
cut.
ADJUST THE MOWER FOR NARROW PASSAGES
Narrow passages in the garden make it diffi cult for the
mower to fi nd the charging station. Test to see if the mower
fi nds its way home using the Test IN function.
1. Look for the narrowest passage in the garden (between the
boundary loops).
2. Place the mower beyond the passage, with its front facing
the boundary loop.
3. Activate the Test IN function (Garden - Follow loop - Test IN) and
start the mower.
4. Ensure that the mower follows the boundary loop through
the passage.
a. If the mover travels through: The test is complete.
a. If the mover does not travel through: Lower the value of
the Corridor width, boundary by 1 unit. Restart the test
from point 2.
CORRIDOR WIDTH, BOUNDARY
SettingsCorridor width, boundary (Garden– Follow loop – Corridor width – Corridor
width, bound.) defi nes the distance between the mower's path to the boundary
wire or the guide wire when following these to/from the charging station.
The higher the stated Corridor width, the further from the loop the mover can
travel. This produces less wheel tracks than if the mover were to travel close to
the loop.
GUIDE WIRE
See chapter 3.8 Installation of the guide wire in the
Operator's Manual.
If you have a complicated garden or it has narrow passages
(less than 2 m / 7 ft), we recommend installing a guide wire.
AUTOMOWER™ is a trademark owned by Husqvarna AB. Copyright © 2008 HUSQVARNA. All rights reserved.
www.automower.com
115 13 05-26
TIMER
You decide what times of the day and days of the week the mower is to work.
Automower™ cuts around 125 m² / 1300 ft² per hour and day (75m² / 800 ft² for
220 AC).
If your garden consists of 1000 m² / 0.25 acre grass, the mower should work on
average 14 hours per day.
4b
4B
2
4a
1
1 4A
Main menu
Commands
Timer
Garden
Settings
Garden - Follow loop - Test IN
The guide wire is an extra wire that is run from the charging
station, out towards a remote part of the work area or through
a narrow passage. The mower can follow the guide wire to and
from the charging station.
QUIC K GUI DE
H USQVARNA AUTOMOWE R
230 ACX /220 AC
™
