Husqvarna Automower Solar Hybrid Technical Manual page 61

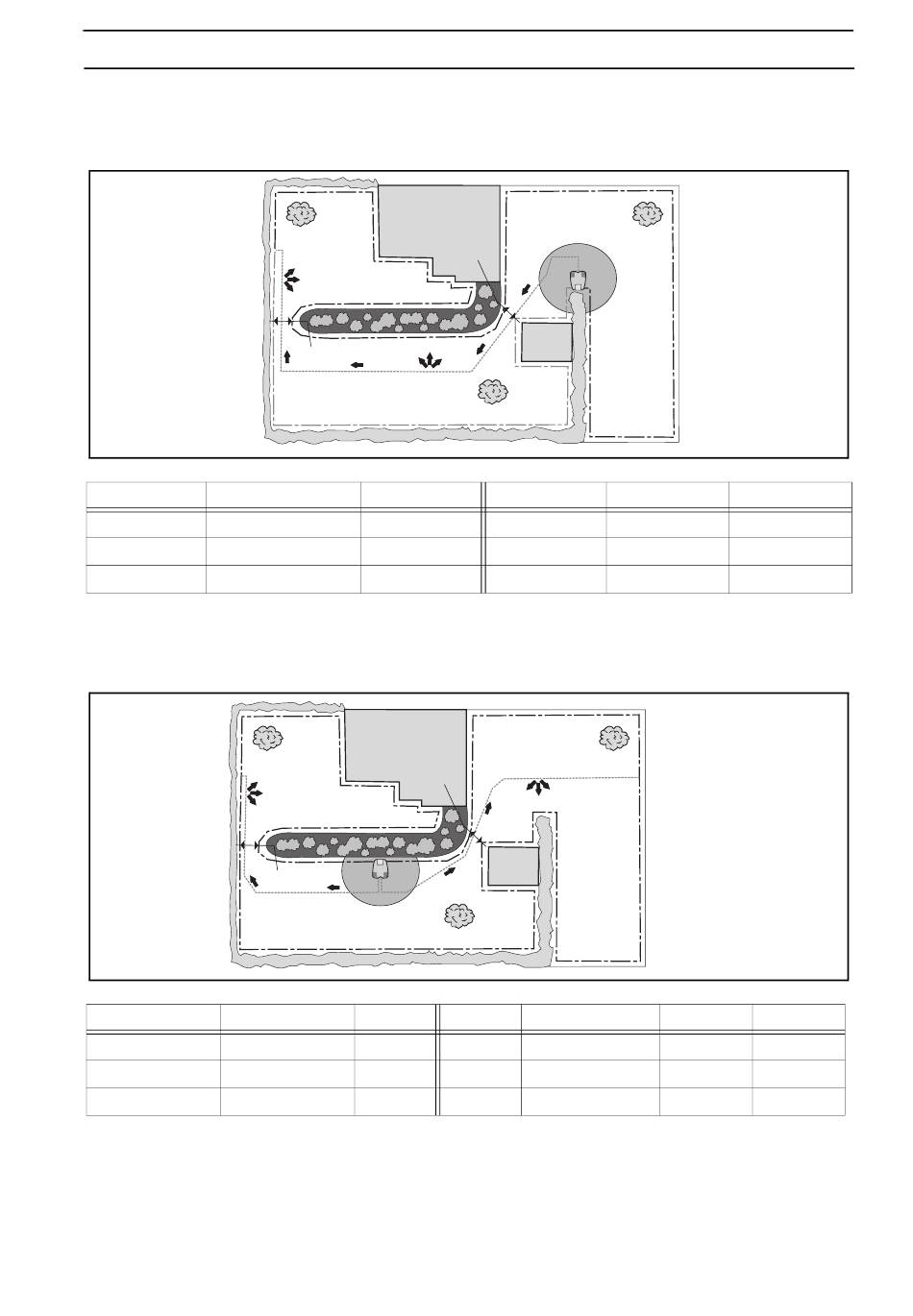

Moving the charging station to a more central position in the working area makes it easier to access from
the largest areas.
Fully approved
Follow loop Boundary wire
Delay 11 minutes
Corridor width 1
Two guide wires can be installed for Automower 230 ACX and Solar Hybrid. This permits more installation
solutions.
Fully approved
Follow loop Boundary wire
Delay 15 minutes
Corridor width 20
3. INSTALLATION
1
1.5m (5ft)
2
Guide wire
7 minutes
6
1.5m (5ft)
1.5m (5ft)
1
Guide 1
4 minutes
6
1.5m (5ft)
Follow loop out
Direction
Distance
Proportion
2
Guide 1 Follow loop out
4 minutes Direction
6 Distance
Proportion
Area 1 Area 2
Guide Guide
40 metres (130 ft) 20 metres (65 ft)
20% 40 %
Area 1 Area 2
Guide 1 Guide 2
20 m (65 ft) 20 m (65 ft)
20% 40 %
3012-637
3012-811
English - 61
