Alarm Connection Example – Terminal/Relay/MODBUS PCB
Connections – Terminal/Relay/MODBUS PCB

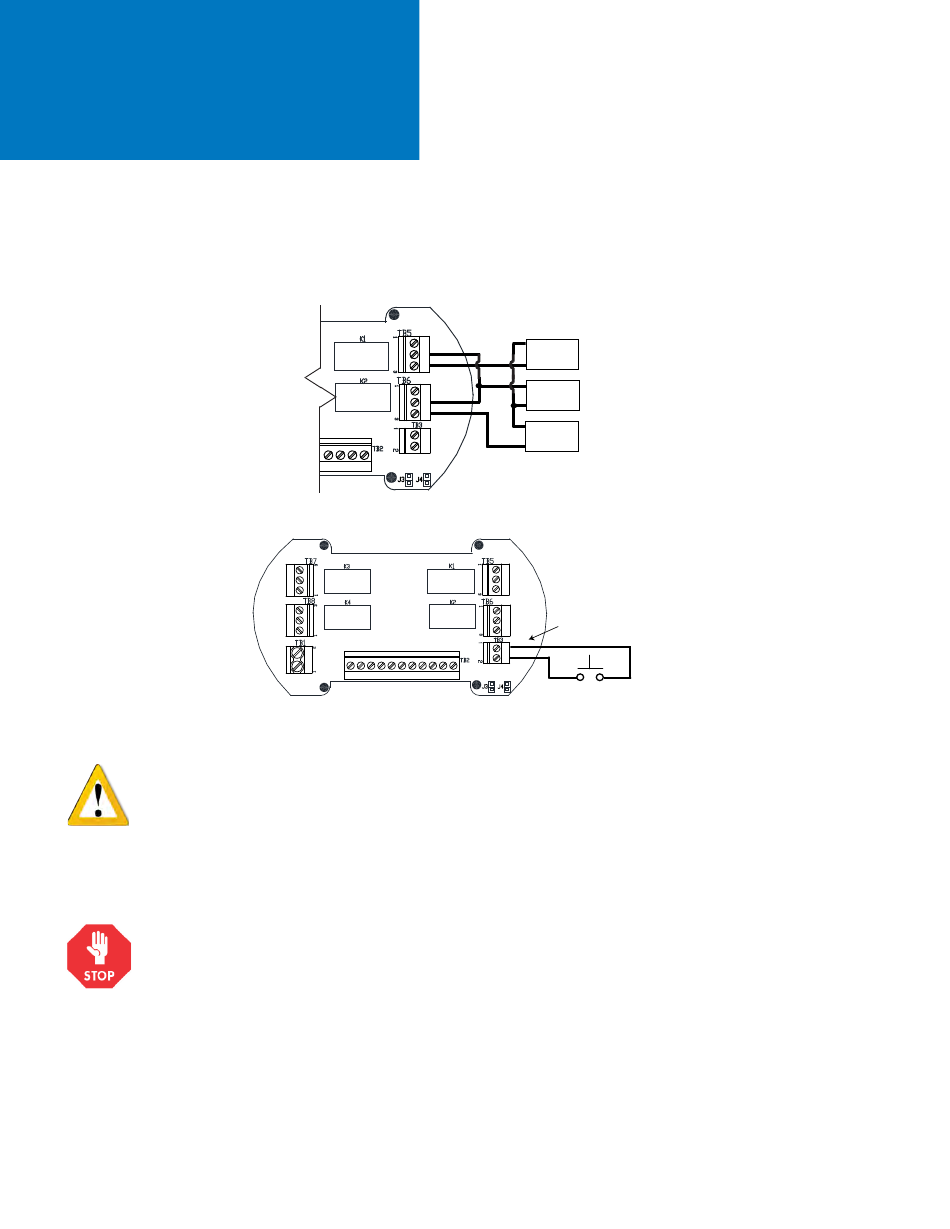

Figure 4-19: Relay/Alarm Connection Example – Terminal/Relay/MODBUS PCB
Figure 4-20: Relays/Remote Alarm Reset Connections – Terminal/Relay/MODBUS PCB
CAUTION: Contacts are rated for resistive loads; alarm relays have dry contacts (form C) and
power must be supplied from an external source. Failure to do so could result in failure of alarm
relays.
6. If desired, connect a remote switch to TB3 on the terminal/relay/MODBUS RS-485 PCB. This feature allows
you to shut off and reset a sounding remote alarm (refer to
tions – Terminal/Relay/MODBUS PCB
WARNING: EXTERNAL WIRING TO TB3 MUST BE SHIELDED AND PROTECTED FROM
NOISE SPIKES TO PREVENT A FALSE ALARM RESET CONDITION. FAILURE TO DO SO COULD
RESULT IN INJURY OR DEATH IF A FALSE ALARM RESET CONDITION OCCURS.
7. Insert the lower PCB stack into the housing after wiring the terminal blocks.
8. Insert and tighten the four (4) standoffs.
9. Push the LCD PCB/CPU PCB set into the four (4) standoffs.
10. Install housing cover, tighten and secure the setscrew.
