5. Buttons and indicator lights

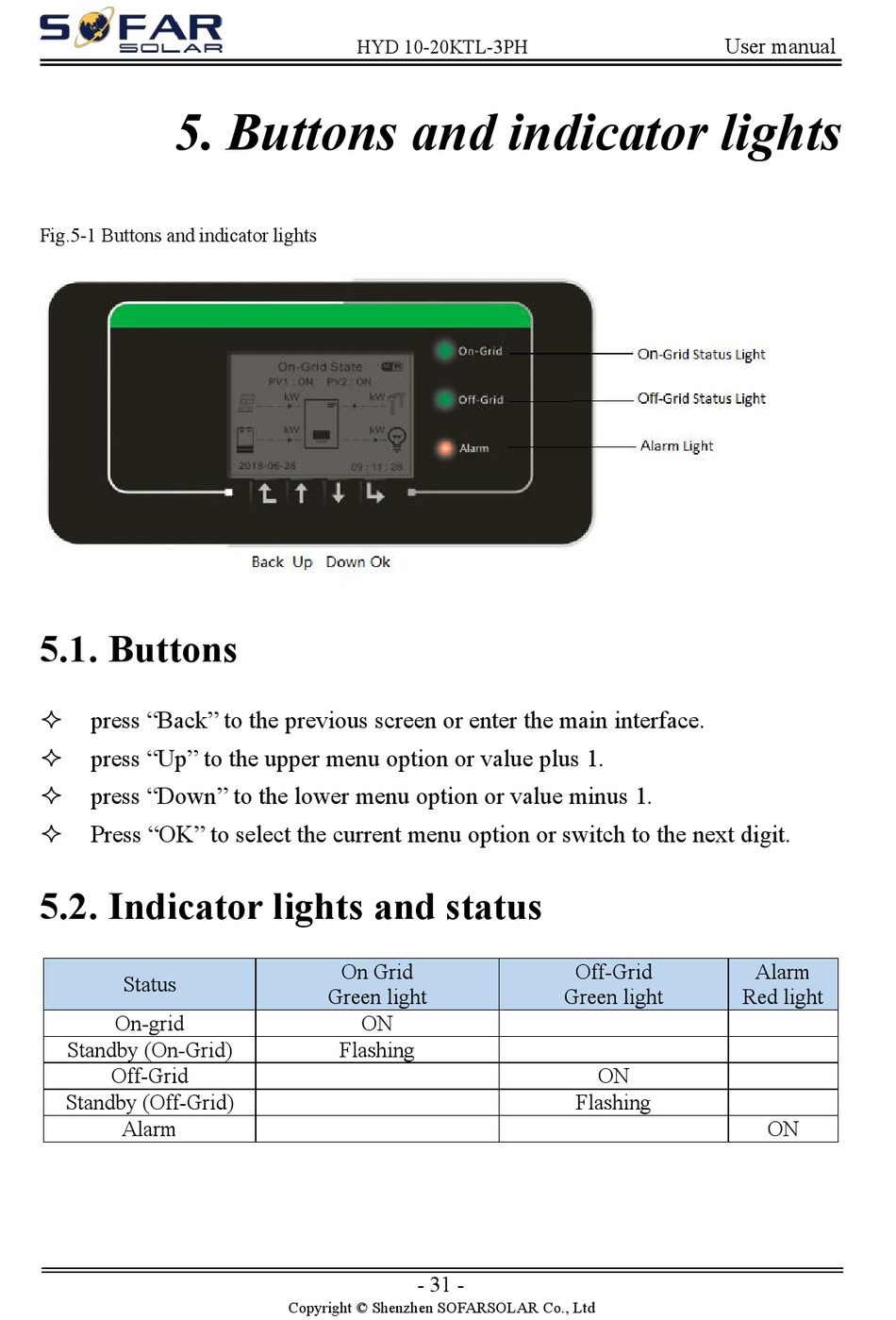

Fig.5-1 Buttons and indicator lights

5.1. Buttons

press "Back" to the previous screen or enter the main interface.

press "Up" to the upper menu option or value plus 1.

press "Down" to the lower menu option or value minus 1.

Press "OK" to select the current menu option or switch to the next digit.


5.2. Indicator lights and status

Status
On-grid
Standby (On-Grid)
Off-Grid
Standby (Off-Grid)
Alarm
HYD 10-20KTL-3PH
On Grid
Green light
ON
Flashing
- 31 -
Copyright © Shenzhen SOFARSOLAR Co., Ltd
User manual
Off-Grid
Green light
ON
Flashing
Alarm
Red light
ON
