negative pole of the PV array are NOT grounded. Otherwise it will cause
inverter failure. In the PV power system, all non current carrying metal
parts (such as: PV module frame, PV rack, combiner box enclosure,
Attention
inverter enclosure) should be connected to earth.
The PGND cables are prepared ( ≥4mm²outdoor power cables are
recommended for grounding purposes),the color of cable should be yellow-green.
Procedure:
Step 1 Remove the insulation layer with an appropriate length using a wire
stripper, as shown in Fig.4-2.
Step 2 Insert the exposed core wires into the OT terminal and crimp them by
using a crimping tool, as shown in Fig.4-2.
Step 3 Install the crimped OT terminal, flat washer using M5 screw, and
tighten the screw to a torque of 3 N.m using an Allen wrench.
Note 1: L3 is the length between the insulation layer of the ground cable and the crimped part.L4
is the distance between the crimped part and core wires protruding from the crimped part.
Note 2: The cavity formed after crimping the conductor crimp strip shall wrap the core wires
completely. The core wires shall contact the terminal closely.

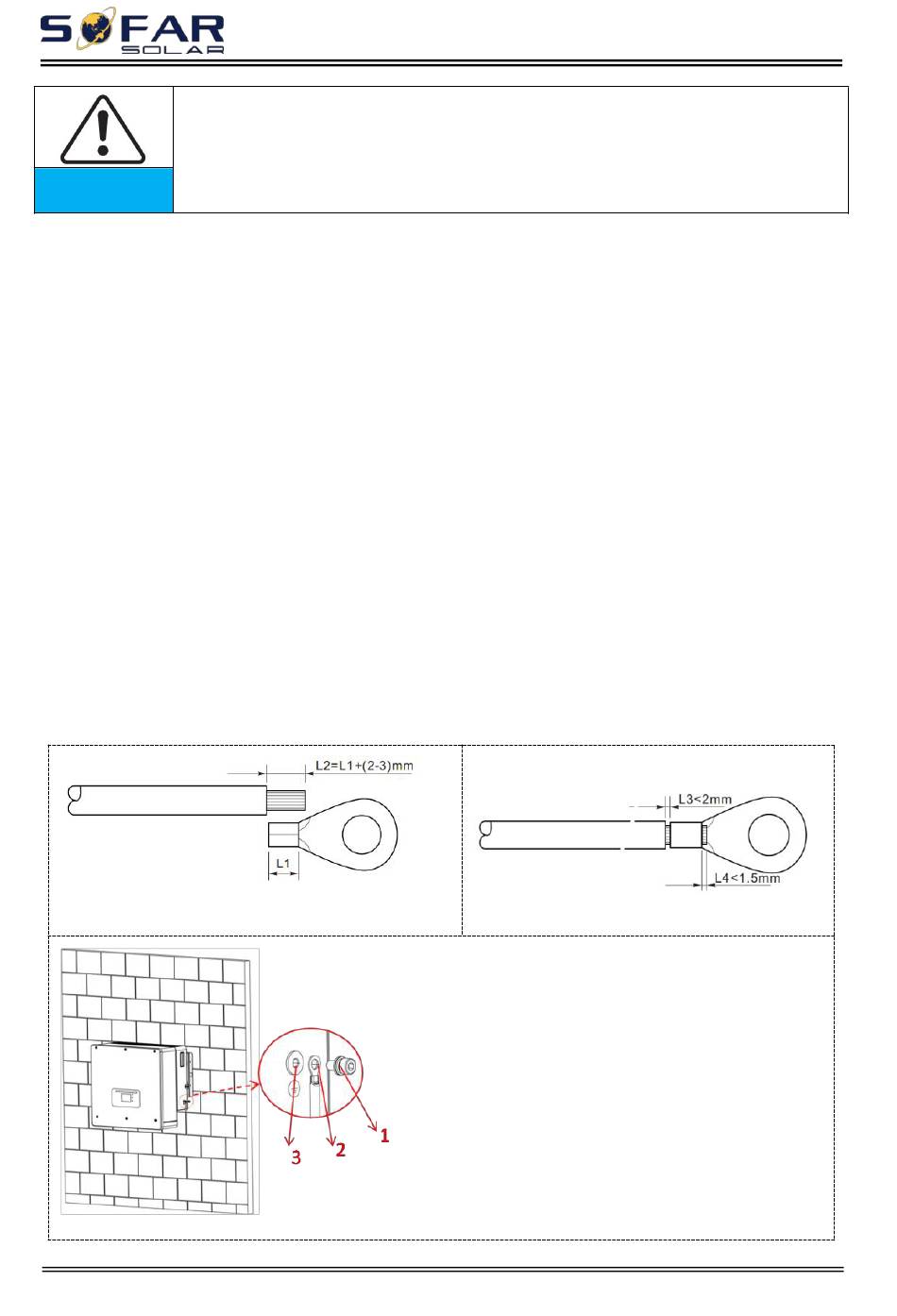

Fig.4-2 Connecting PGND cable
Note： L2 is 2 to 3mm longer than L1
HYD 10-20KTL-3PH
The inverter is transformer-less, requires the positive pole and
Copyright © Shenzhen SOFARSOLAR Co., Ltd
①
1. M5 screw
2. OT Terminal
3. Tapped hole
- 20 -
User manual
②
③
