drill holes on the wall. Keep the hammer drill perpendicular to the wall, do not
shake when drilling, so as not to damage the wall. If the error of the hole positions
is too big, you need to reposition.
Step 2 Insert the expansion bolt vertically into the hole, pay attention to the
insertion depth of the expanding bolt (should be deep enough).
Step 3 Align the rear panel with hole positions, fix the rear panel on the wall
by tightening the expansion bolt with the nuts.
Step 4 Hook the inverter to the rear panel. Using an M5 screw to secure the
inverter to the rear panel to ensure safety.
Step 5 You can secure the inverter to the rear panel and protect if from
stealing by installing an anti-theft lock (this action is optional).

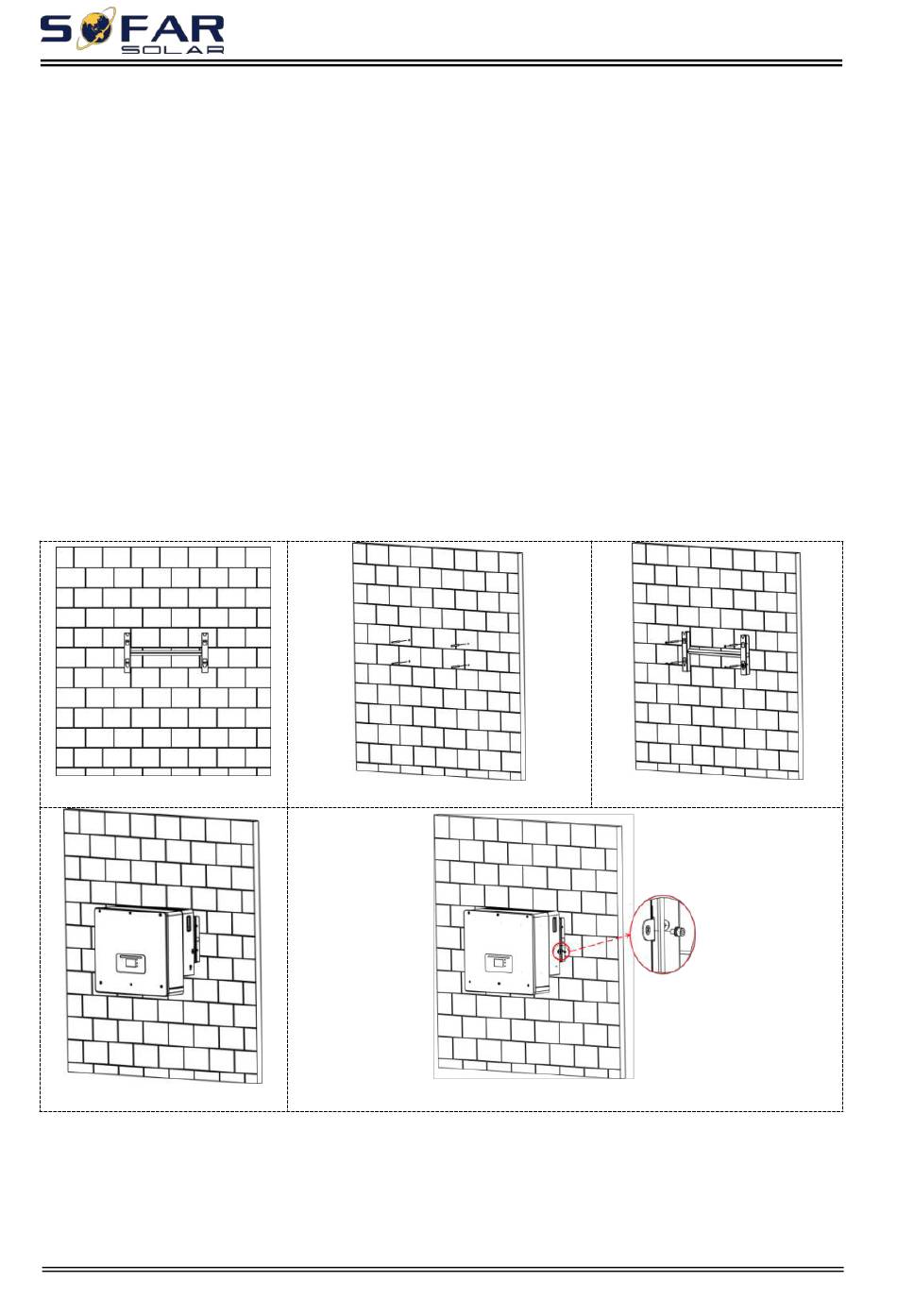

Fig. 3-5 Installing HYD 10-20KTL-3PH
HYD 10-20KTL-3PH
①
④
- 16 -
Copyright © Shenzhen SOFARSOLAR Co., Ltd
User manual
② ③
⑤
