2.2. Size description

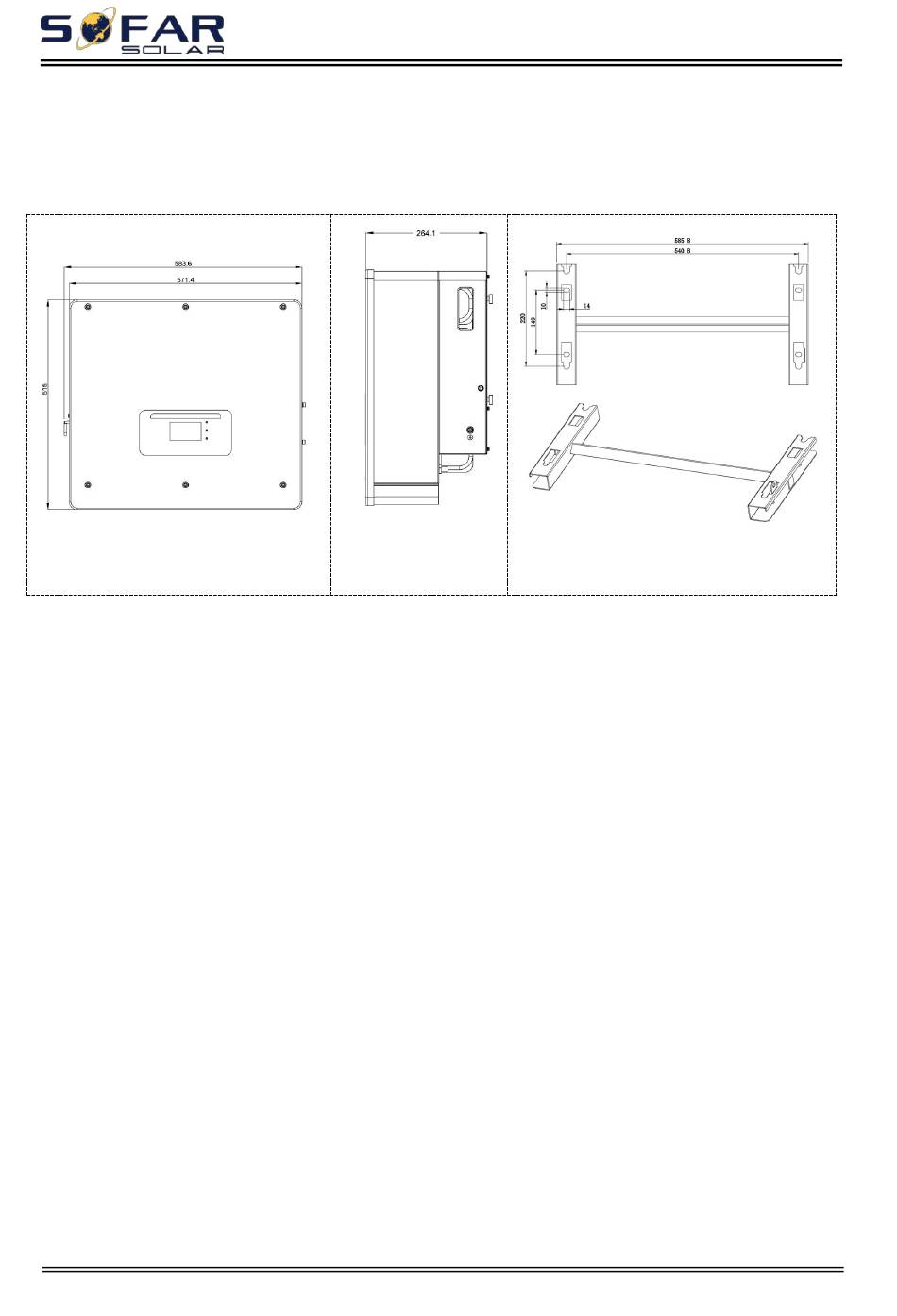

Fig. 2-2 Size chart
Front view

2.3. Function characteristics

The HYD 10-20KTL-3PH energy storage inverters allow up to 10%
overloading to maximize power output, and the Uninterruptible Power Supply
(UPS) mode can support inductive loads such as air conditioners or refrigerators
with an automatic switchover time of less than 20 milliseconds.
a. Dual MPP trackers with 1.5* DC overload.
b. Flexible switching between grid-tied mode and energy storage mode.
c. Max. battery charge and discharge efficiency 97.7%.
d. 2 strings of battery input with maximum 50A charge and discharge current.
e. Wide battery voltage range(180-800V).
f. Off-grid output can be connected to unbalanced load.
g. AC Multi-parallel function, more flexible system solution.
h.
Smart monitoring, RS485/WiFi/Bluetooth/GPRS(Optional).
HYD 10-20KTL-3PH
left view
①
- 7 -
Copyright © Shenzhen SOFARSOLAR Co., Ltd
Bracket
②
User manual
③
